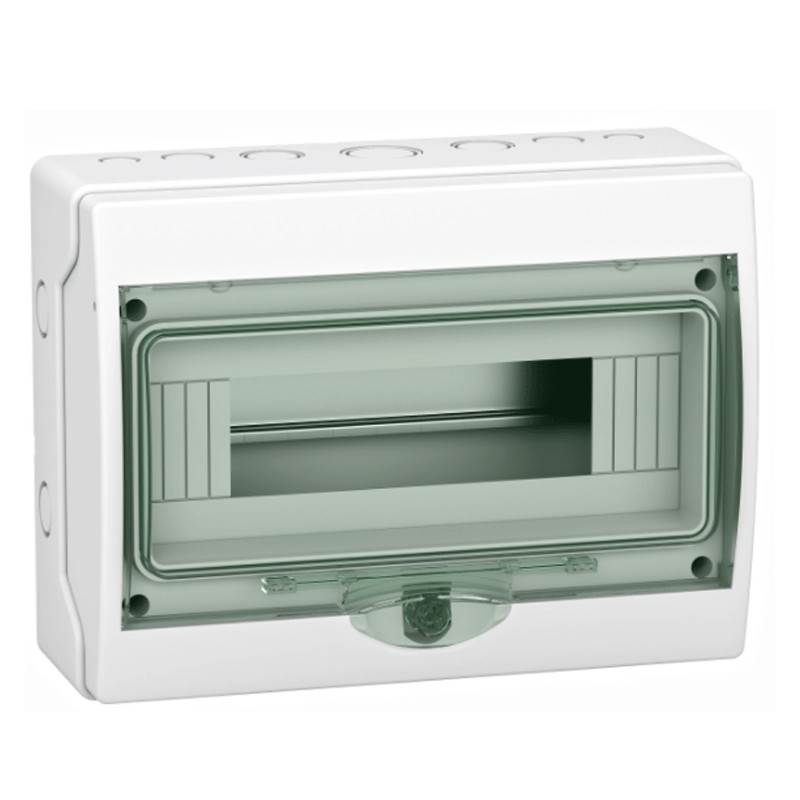

Schneider wall-mounted switchboard 12 modules IP65 Transparent door 10315
SNR 10315
3303430103158
Schneider Kaedra wall-mounted switchboard, with the following features
- 12 modules
- IP65 degree of protection in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
Schneider wall-mounted switchboard 12 modules IP65 Transparent door 10315
€31.72
Tax included
€31.72
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 175
: 27
Pay in installments with Klarna
Features:
- Schneider series
- Power dissipation 19W
- Nominal current [In] 63 A
- 12 modules
- Without mounting plate
- Insulation class II
- Reversible front panel type transparent
- DIN rail type
- Description of locking options Optional key lock
- Housing material self-extinguishing polymer
- Width 267 mm
- Height 200 mm
- Depth 112 mm
- Internal depth 56 mm
- Door colour transparent green
- Housing colour light grey (RAL 7035)
- Fire resistance 650 °C in accordance with IEC 60695-2-1
- Degree of protection IP65 in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
- Overvoltage category II
- Ambient operating temperature -25 + 60 °C
Materiale in perfetto stato, nuovo, come da descrizione
très bien délais de livraison un peu long mais sinon tout est correct
Ottimo prodotto, buon rapporto qualità/prezzo
Data sheet
- Type: Wall
- Modules: 12
- Degree of protection: IP65
- Model: With door
