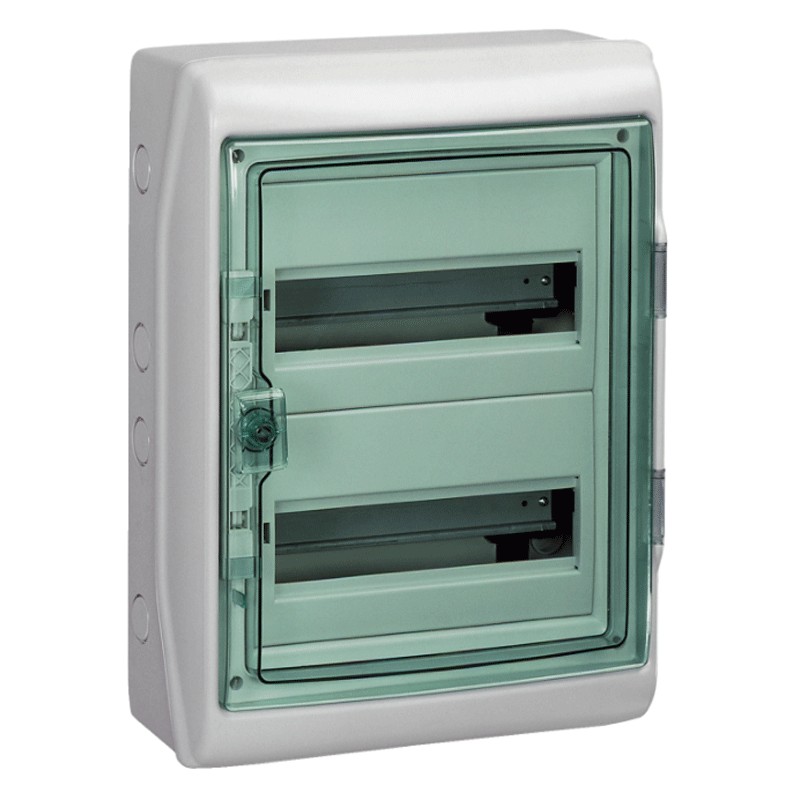

Schneider wall-mounted switchboard 24 modules IP65 transparent door 10342
SNR 10342
3303430103424
Schneider Kaedra wall-mounted switchboard, with the following features:
- 24 modules (in two rows)
- IP65 degree of protection in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
Schneider wall-mounted switchboard 24 modules IP65 transparent door 10342
€55.08
Tax included
€55.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 136
: 16
Pay in installments with Klarna
Features:
- Schneider Series
- Power dissipation 34W
- Nominal current [In] 63 A
- 24 modules (in two rows)
- Without mounting plate
- Insulation class II
- Reversible front panel type transparent
- DIN rail type
- Description optional key lock options
- Housing material self-extinguishing polymer
- Width 340 mm
- Height 460 mm
- Depth 160 mm
- Internal depth 88 mm
- Door colour transparent green
- Enclosure colour light grey (RAL 7035)
- Fire resistance 650 °C in accordance with IEC 60695-2-1
- Degree of protection IP65 in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
- Overvoltage category II
- Ambient operating temperature -25 + 60 °C
Come sempre il miglior prezzo nel minor tempo possibile
Coffret de qualité.
Montage facile .
Porte raiversible.
très bien délais de livraison un peu long mais sinon tout est correct
Data sheet
- Type: Wall
- Modules: 24
- Degree of protection: IP65
- Model: With door
