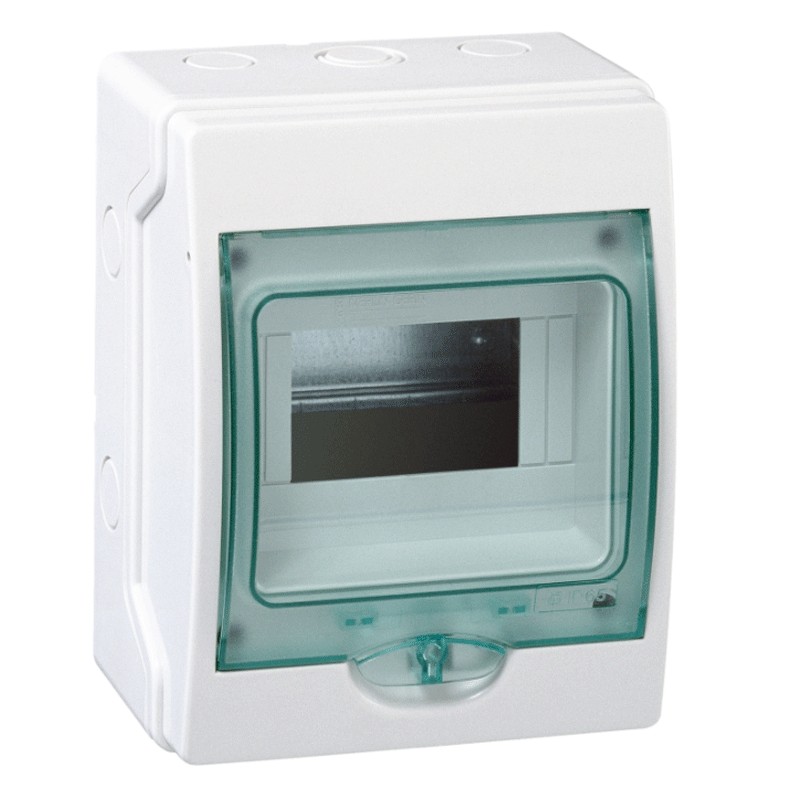

Schneider wall-mounted switchboard 6 modules IP65 transparent door 10313
SNR 10313
3303430103134
Schneider Kaedra wall-mounted switchboard, with the following features
- 6 modules
- Degree of protection IP65 in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
Schneider wall-mounted switchboard 6 modules IP65 transparent door 10313
€15.62
Tax included
€15.62
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 217
: 20
Pay in installments with Klarna
Features:
- Schneider series
- Power dissipation 11W
- Nominal current [In] 63 A
- 6 modules
- Without mounting plate
- Insulation class II
- Front panel type Reversible Transparent
- DIN rail type
- Description of locking options Optional key lock
- Housing material self-extinguishing polymer
- Width 159 mm
- Height 200 mm
- Depth 112 mm
- Internal depth 56 mm
- Door colour transparent green
- Housing colour light grey (RAL 7035)
- Fire resistance 650 °C in accordance with IEC 60695-2-1
- Degree of protection IP65 in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
- Overvoltage category II
- Ambient operating temperature -25 + 60 °C
Parfait matériel reconnu dans le milieu de l électricité a fait ses pu
Pas reçu ma commande payée le 15 aôut
Ottimo prodotto, buon rapporto qualità/prezzo
Data sheet
- Type: Wall
- Modules: 6
- Degree of protection: IP65
- Model: With door
