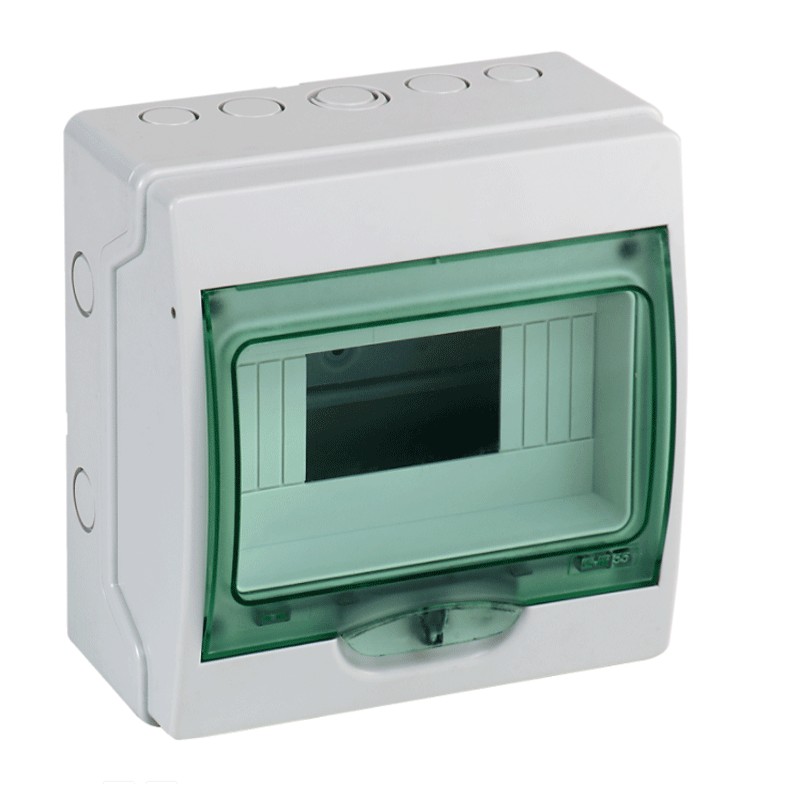

Schneider wall-mounted switchboard 8 modules IP65 transparent door 10314
SNR 10314
3303430103141
Schneider Kaedra wall-mounted switchboard, with the following features
- 8 modules
- Degree of protection IP65 in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
Schneider wall-mounted switchboard 8 modules IP65 transparent door 10314
€17.21
Tax included
€17.21
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 327
: 68
Features:
- Schneider Series
- Power dissipation 15W
- Nominal current [In] 63 A
- 8 modules
- Without mounting plate
- Insulation class II
- Reversible front panel type transparent
- DIN rail type
- Description of locking options Optional key lock
- Housing material self-extinguishing polymer
- Width 195 mm
- Height 200 mm
- Depth 112 mm
- Internal depth 56 mm
- Door colour transparent green
- Enclosure colour light grey (RAL 7035)
- Fire resistance 650 °C in accordance with IEC 60695-2-1
- Degree of protection IP65 in accordance with IEC 60529
- Degree of protection IK09 in accordance with EN 50102
- Overvoltage category II
- Ambient operating temperature -25 + 60 °C
buon prodotto a buon prezzo. Fa il suo dovere
Perfetto come da descrizione. Materiale arrivato nei tempi prestabiliti
Ottimi materiali e puntualità nella consegna
prodotto ottimo! Materiali di qualità ad un prezzo modico.
Spedizione molto veloce!!
Ottima qualità, perfetto e puntuali nella consegna
Data sheet
- Type:
- Wall
- Modules:
- 8
- Degree of protection:
- IP65
- Model:
- With door
