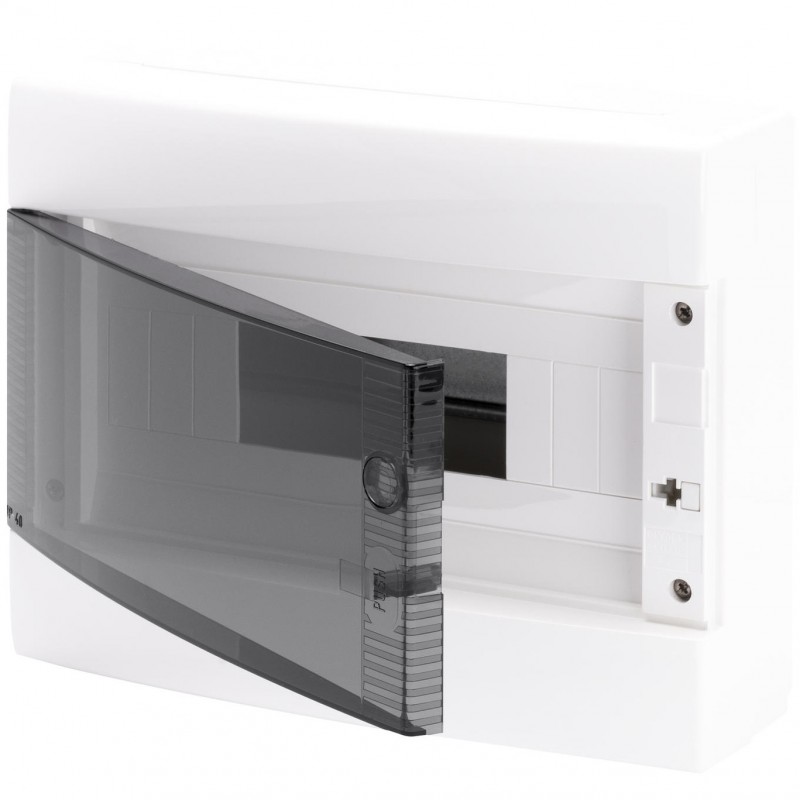

Wall-mounted switchboard 12M IP40 GW40045
GEW GW40045
8011564033313
Switchboard for furnishing with smooth wall Gewiss, with the following features:
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 12 modules
- Degree of protection IP40 (protection against solid bodies 1mm)
Wall-mounted switchboard 12M IP40 GW40045
€25.47
Tax included
€25.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 331
: 94
Pay in installments with Klarna
Features:
- Gewiss series
- Wall installation with DIN bar (universal connection that allows you to hook any switch with DIN connection even of different brand)
- 12 modules
- Degree of protection IP40 (protection against solid bodies 1mm)
- Insulation class II (according to IEC 61140)
- Door colour Transparent smoke
- Operating temperature -25 +60 °C
- Standard EN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49
- Colour white RAL 7035
- Power dissipation 22W
- Rated voltage 400V
- Rated insulation voltage 750V
- Rated current 125A
- Glow wire resistance 650 °C
- Type Material: Halogen free according to EN 60754-2 standard
- External dimensions BxHxD (mm) 280x225x100
- Impact resistance IK08
- Thermopressure with ball 70 °C
Perfetto per uso da parete. Semplice e raffinato in quanto è bianco con porta fumè. Lo sostituisco con un precedente a 8 Din.
Ottimo prodotto, Gewiss azienda storica, una garanzia
Il prodotto è di buona qualità, nessun problema nell'utilizzo.
perfetta rispondenza del prodotto acquistato
Data sheet
- Type: Wall
- Modules: 12
- Degree of protection: IP40
- Model: With door
