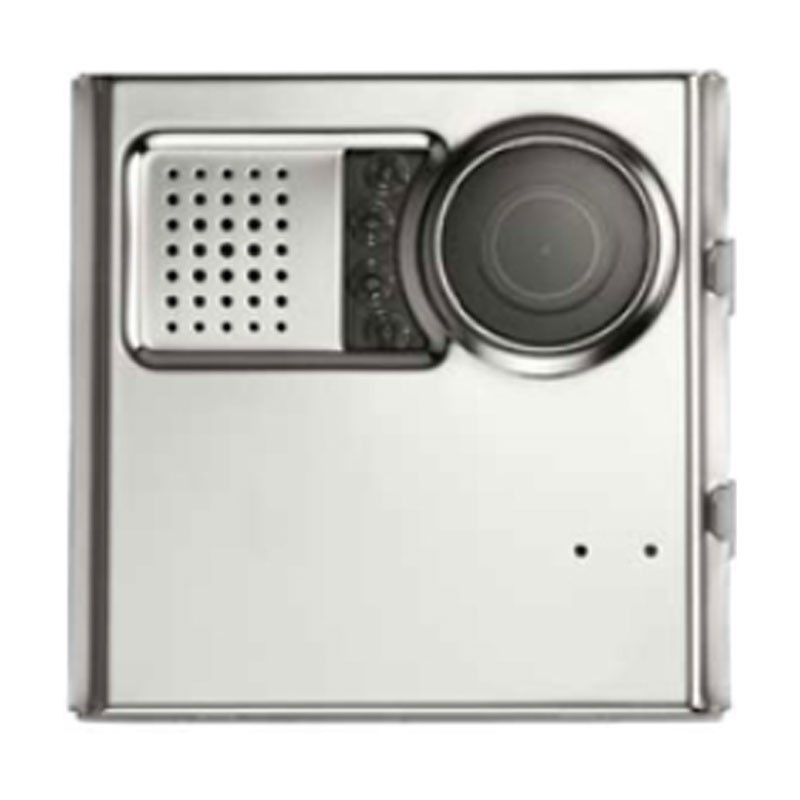

Urmet Sinthesi Steel module with colour camera unit 1758/40
UTD 1758/40
8021156042609
Urmet Sinthesi Steel module, with the following features:
- With 50 Hz colour camera unit
- 1/3 CCD colour camera - 120° wide angle
- Max. absorption: 250 mAdc
- Video output: 1 Vpp ± 10% impedance 75W
- Vertical frequency:50Hz ± 1%
- Horizontal frequency: 15625Hz ± 1%
- Camera power supply: 16 - 23Vdc
- Degree of protection IP:42
- Front treatment: anodised aluminium
- Module size (H x W) 90 x 90 mm
Urmet Sinthesi Steel module with colour camera unit 1758/40
€355.96
Tax included
€355.96
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
The Sinthesi Steel module with colour camera is equipped with carriage terminals and lighting unit. The white light LED illumination unit allows the caller to be filmed ideally even in poor light conditions. The lighting unit can be switched off by moving a micro-switch to the OFF position on the camera module.
The CCD wide angle camera has a field of view of 120° horizontally. The device is used in analogue installations with coaxial cable, 5-wire and VOP.
Data sheet
- Type: Door stations/Outdoor Intercoms
- Components: Modules
