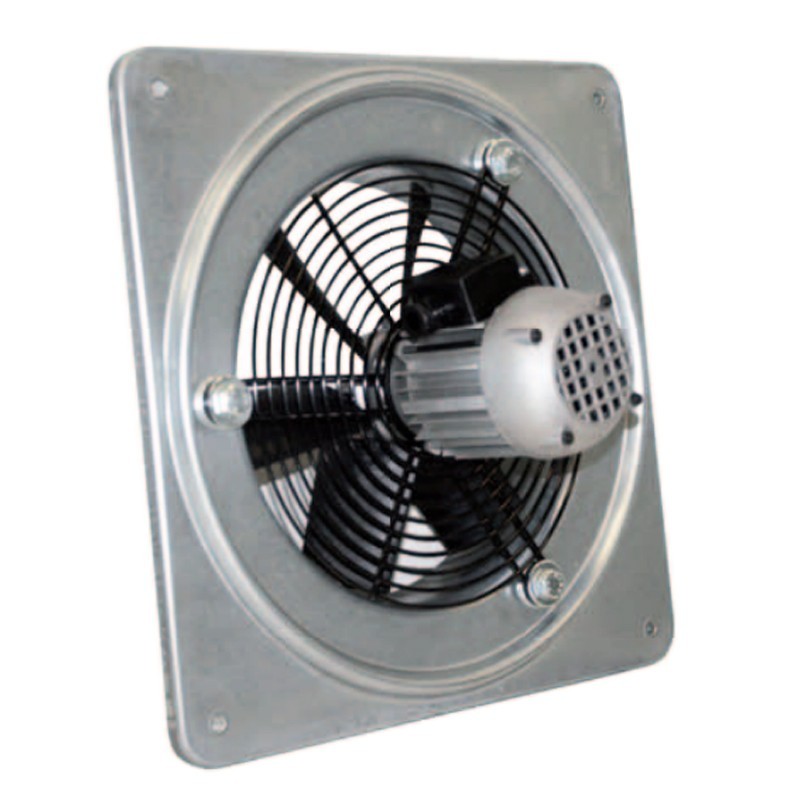

Elicent Helicoidal Aspirator IEM 202 Single-phase wall mounting 1IE0210
ELI 1IE0210
IEM 202 Single-phase helical Elicent fan specifically designed for air exchange in commercial and industrial buildings.
Elicent Helicoidal Aspirator IEM 202 Single-phase wall mounting 1IE0210
€279.00
Tax included
€279.00
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 1
Pay in installments with Klarna
Due to its design and performance characteristics, the IEM series can be used for direct ejection. The air sucked in must not be dusty or corrosive.
Features:
- Max flow rate 1050 cubic meters/h
- Voltage 230V 50Hz
- Current consumption 0.52A
- Power 0.09KW
- 2 poles
- IP44 degree of protection
- Motor class B
- Sound data: Lp 52,6dB - Lw 70,1dB
- Diameter 215mm
- Depth 210mm
- Wall or panel installation
- Suitable for clean air with max. temperature from -15°C to 50°C
- Static and dynamic balancing according to ISO 1940 standards
- Marking C E
- Bearing frame made of pressed and drawn galvanized sheet steel, with suction radius
- Impeller with wing blades in technopolymer or cast aluminium alloy and hub in cast aluminium alloy. Variable shrinkage angle from standstill by means of adjusting dowels. Balanced according to ISO 1940
- Design 5 (direct coupling with cantilevered impeller)
- Air flow from motor to impeller
- Protection net and motor support in epoxy powder coated drawn steel rod. Manufactured according to EN ISO 12499 standards.
Data sheet
- Type: Helical
