Vortice Helical Vacuum cleaner A E 354 T 42259
VOR 0000042259
8010300422596

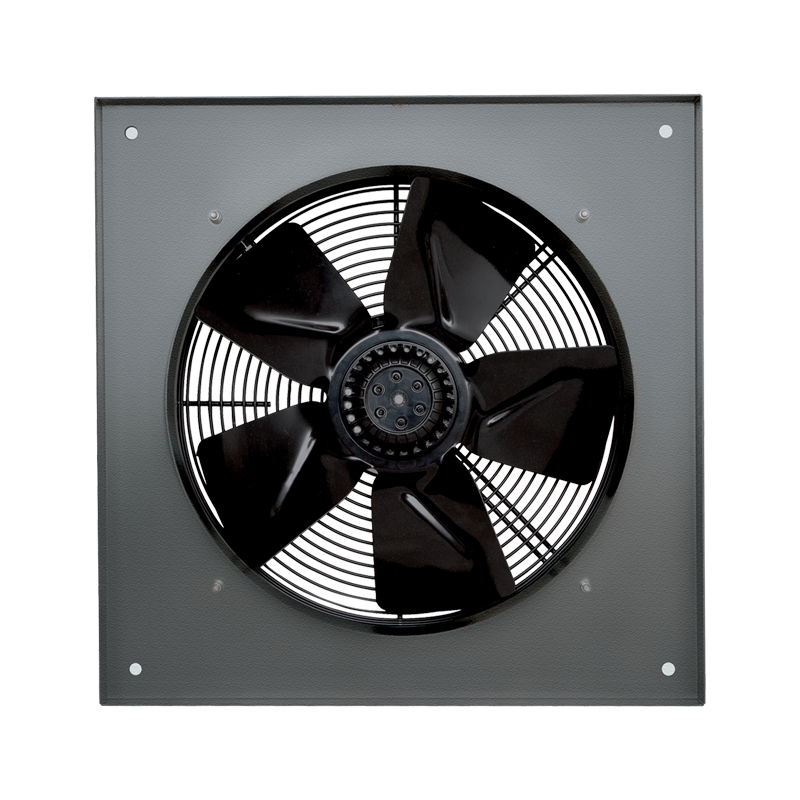

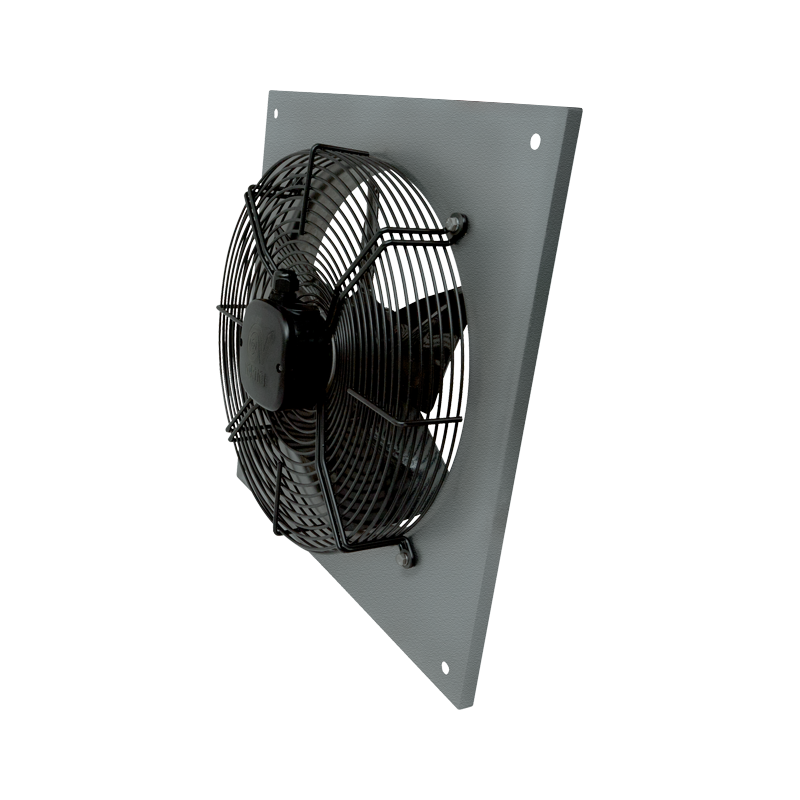

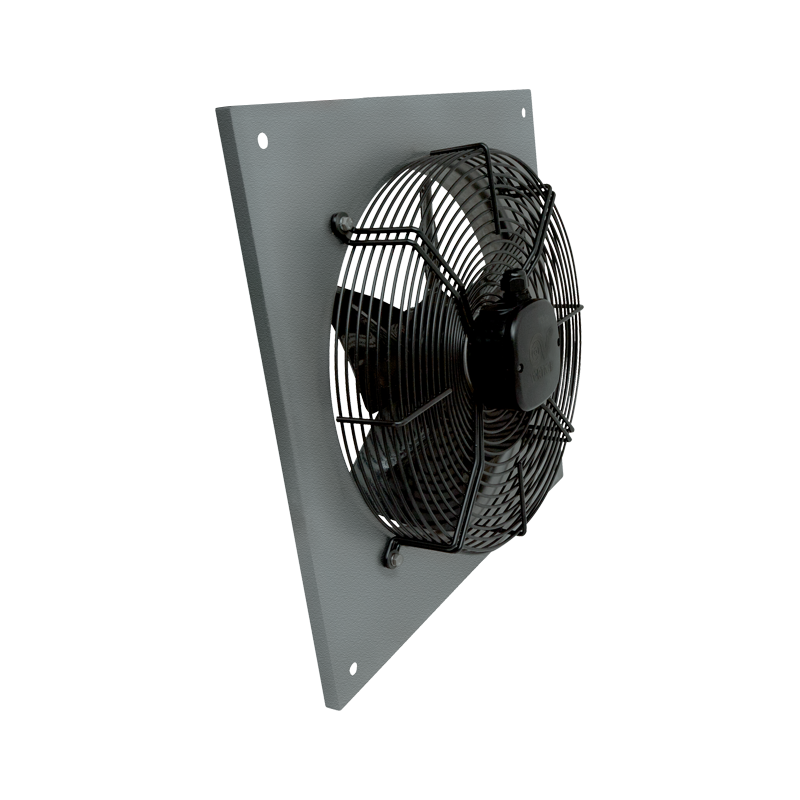

Air and odor aspirator Vortice model A-E 354 T helical, wall mounting, Rated diameter 350 mm.
Vortice Helical Vacuum cleaner A E 354 T 42259
€388.86
Tax included
€388.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 8
: 1
Pay in installments with Klarna
Frequently bought together
Features:
- Rated diameter 350 mm
- Panels, pressed in phosphated steel sheet, painted with grey epoxy powder with hammered effect to guarantee resistance over time to atmospheric agents.
- Mouthpiece, made up of a single body with panels, calibrated to optimise airflow, with an elongated aerodynamic profile to optimise performance and facilitate connection to the supply air duct.
- Protection grille (conforming to UNI ISO 13857), integrating the motor support function, made of electrowelded steel rings and painted with black epoxy paint. The simple removal facilitates the maintenance and cleaning of the fan.
- Three-phase AC motor with 1 speed, external rotor type to minimize axial encumbrance, with shaft mounted on ball bearing supports, class F, thermo-protected
- Maximum flow rate 3070 m3/h
- Dynamically balanced impeller (UNI ISO 1940, Point 1 - Class 6.3); 5 electro-galvanized steel sheet blades painted with black polyester powder paint
- Speed controllable by Vortex regulator.
Technical specifications:
- Current consumption max (A) 0,35
- Rated Duct Diameter (mm) 350
- Frequency (Hz) 50
- IP 54 degree of protection
- Motor protection degree IP 54
- Insulation 1st class
- Phase Number (Ph) 3
- Number Poles 4
- Weight (Kg) 6.2
- Max. power consumption (W) 166
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 380-415
- Max. flow rate (l/s) 828
- Max flow rate (m³/h) 2980
- Sound power Lw [dB(A)] 69.2
- Max pressure (Pa) 115
- Max pressure at max speed (mmH2O) 11.7
- Sound pressure Lp in free field [dB(A)] 1 m 58.2
- Sound pressure Lp in free field [dB(A)] 3 m 48.7
- RPM 1400
Data sheet
- Diameter: 366
- Type: Helical
