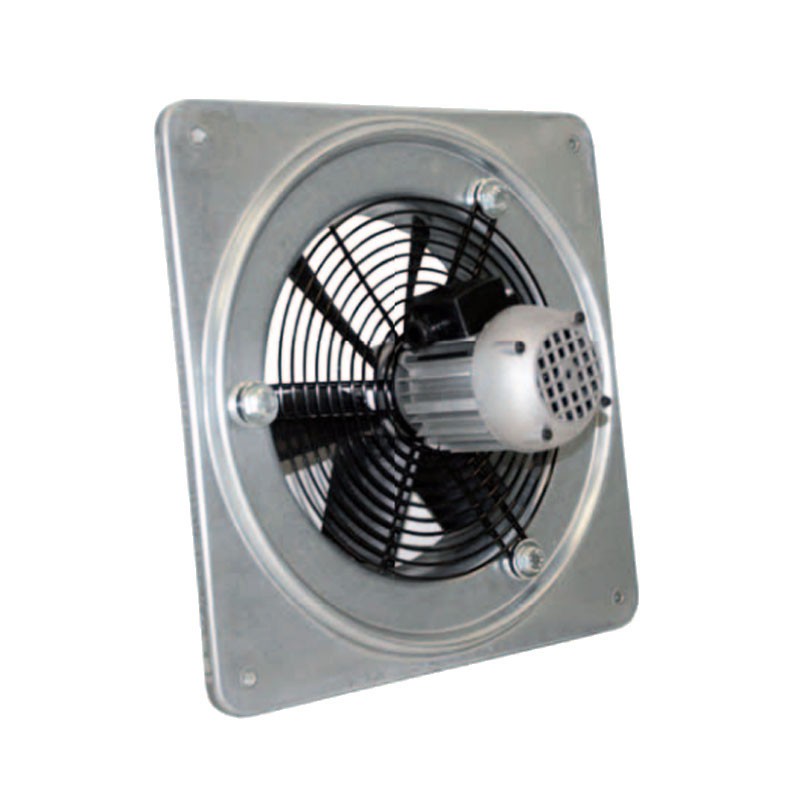

Elicent Helical Aspirator IEM 404 Three-phase wall mounting 1IE0411
ELI 1IE0411
Elicent Elicoidal IEM 404 Three-Phase wall mounted Elicent fan specifically designed for air exchange in commercial and industrial buildings.
Elicent Helical Aspirator IEM 404 Three-phase wall mounting 1IE0411
€481.91
Tax included
€481.91
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Due to its design and performance characteristics, the IEM series can be used for direct ejection. The air sucked in must not be dusty or corrosive.
Characteristics:
- Max flow rate 3100 cubic meters/h
- voltage 400V 50Hz
- Absorbed current 0,60A
- Power 0.12kW
- 4 Poles
- IP55 degree of protection
- Engine class F
- Sound data Lp 56,1dB - Lw 73,6dB
- Diameter 413mm
- depth 325mm
- Wall or panel installation
- Suitable for clean air with max. temperature from -15°C to 50°C
- Static and dynamic balancing according to ISO 1940 standards
- Marking C E
- Bearing frame made of pressed and drawn galvanized sheet steel, with suction radius
- Impeller with wing profile blades in technopolymer or cast aluminium alloy and cast aluminium alloy hub. Variable shrinkage angle from stationary by means of adjusting dowels. Balanced according to ISO 1940
- Design 5 (direct coupling with cantilevered impeller)
- Air flow from motor to impeller
- Protection net and motor support in epoxy powder coated drawn steel rod. Manufactured according to EN ISO 12499 standards.
There are no reviews
Data sheet
- Type: Helical
