Vortice Axial Centrifugal Vacuum Cleaner 125 16151
VOR 0000016151
8010300161518

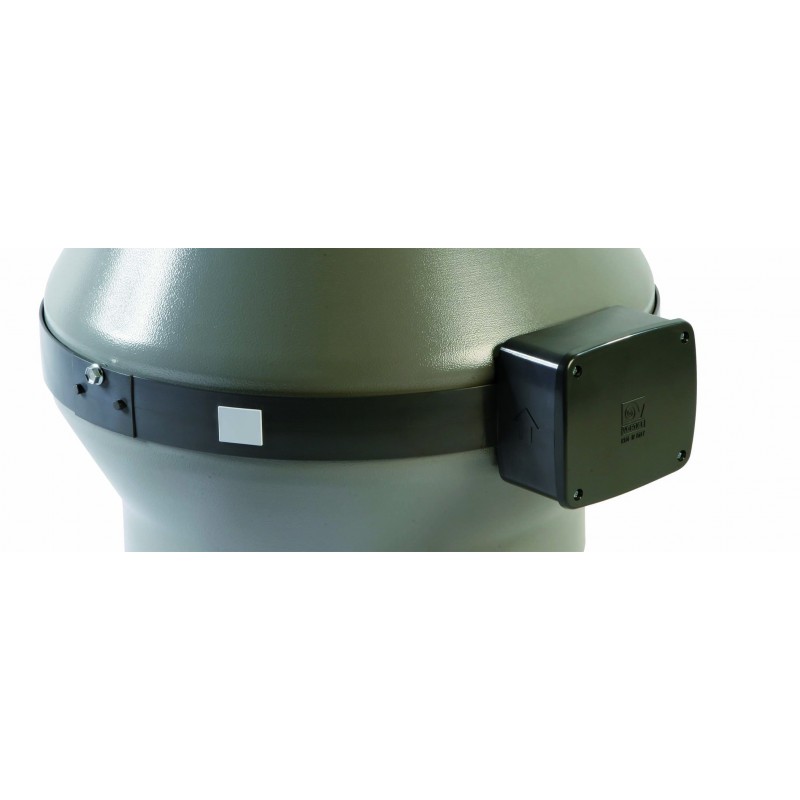

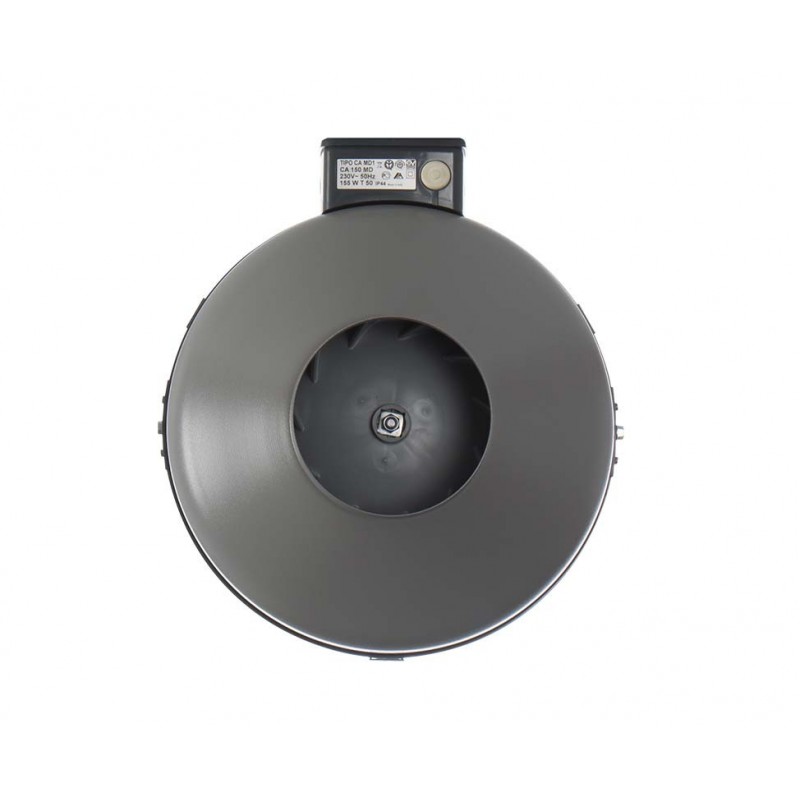

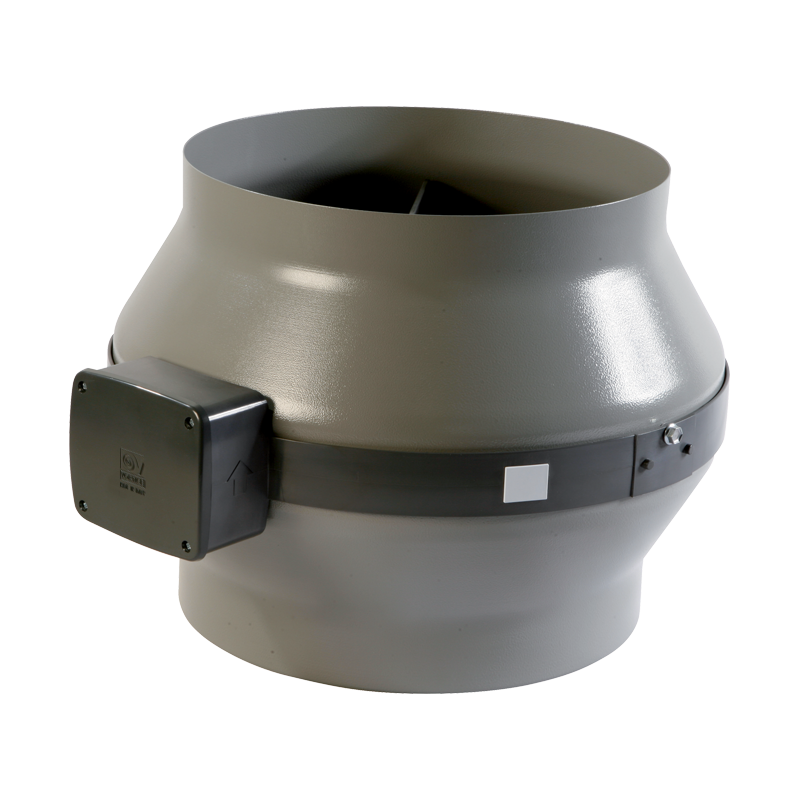

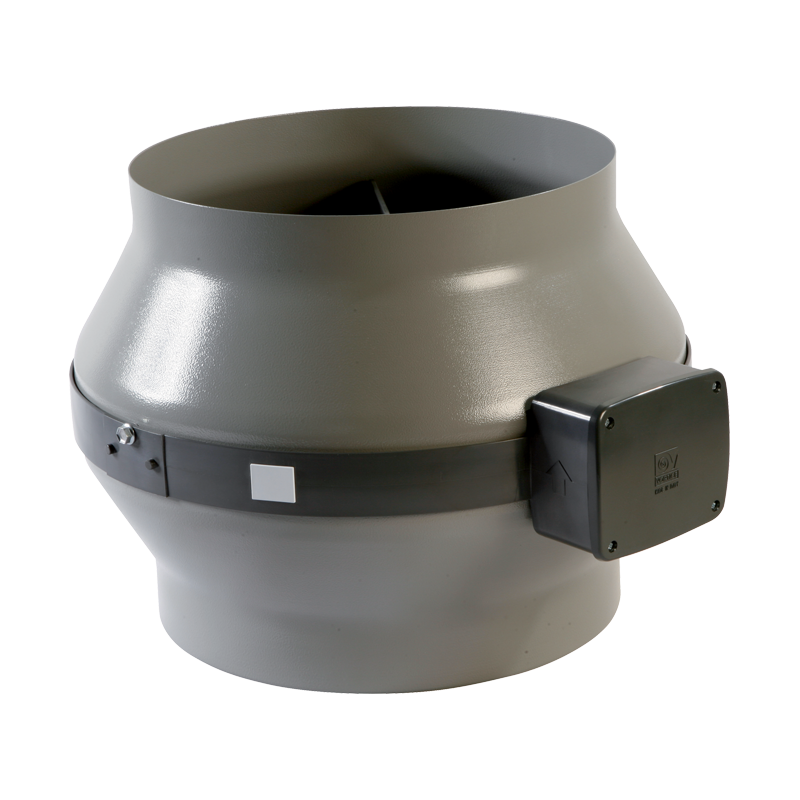

Air and odor aspirator Vortice model CA 125 MD axial centrifugal steel duct, Rated diameter 125 mm.
Vortice Axial Centrifugal Vacuum Cleaner 125 16151
€205.99
Tax included
€205.99
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 14
Pay in installments with Klarna
Frequently bought together
Features:
- Steel casing pickled, phosphated and painted with polyester powder against the aggressive action of the weathering agents
- Rated diameter 125 mm
- 3-speed fan through optional TRIO-CA device (cod. 12869), consisting of: AC motor, thermally protected, with shaft mounted on ball bearing support, centrifugal impeller with inverted blades.
- Can be serviced to remote environmental sensors of: Temperature, Relative Humidity, Smoke and Presence
- Metal brackets for wall mounting in galvanized steel.
Technical specifications:
- Max. current consumption at max. speed (A) 0.22
- Max. current consumption at min. speed (A) 0.06
- Rated Conduit Diameter (mm) 125
- Frequency (Hz) 50
- IP 44 degree of protection
- Insulation Class II
- Weight (Kg) 3,00
- Max. power consumption at max speed (W) 51
- Max. power consumption at min. speed (W) 13
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 220-240
- Max. flow rate at max. speed (l/s) 100
- Max. flow rate at max. speed (m³/h) 360
- Max. flow rate at min. speed (l/s) 34,7
- Max. flow rate at min. speed (m³/h) 125
- Max pressure at max speed (mmH2O) 35.7
- Max. pressure at max. speed (Pa) 350
- Max. pressure at min. speed (mmH2O) 11.9
- Max. pressure at min. speed (Pa) 119
- Sound pressure Lp [dB (A)] 3m - max vel 45.9
- RPM max 2300
- RPM min 850
There are no reviews
Data sheet
- Diameter: 125
- Type: Centrifugal
