Vortice Axial Centrifugal Vacuum cleaner diameter 100 16008
VOR 0000016008
8010300160085

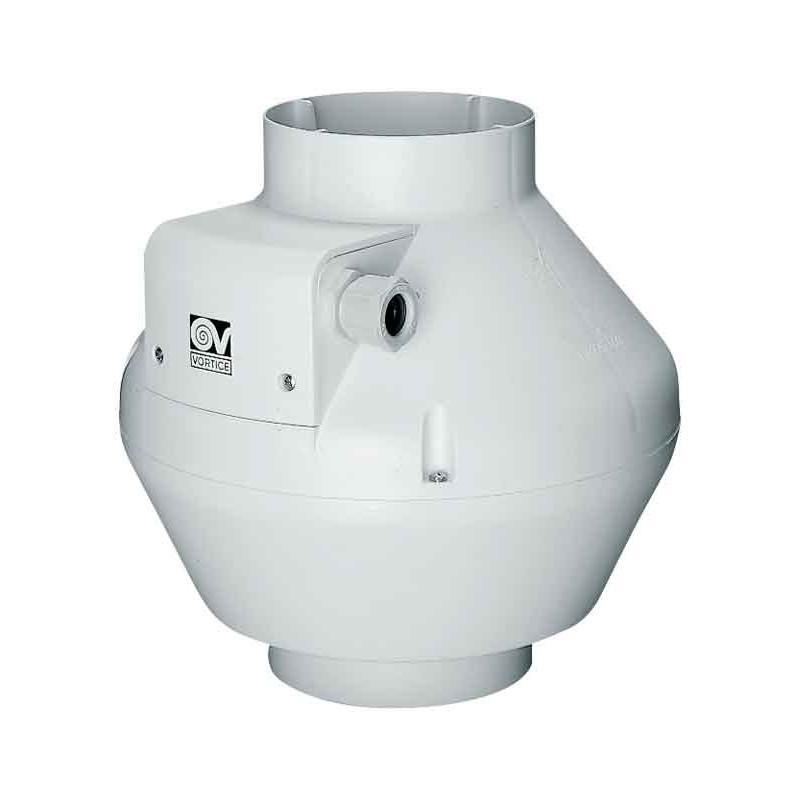

Air and odor aspirator Vortice model CA 100 V0 D centrifugal resin self-extinguishing resin In Line, Rated diameter 100 mm.
Vortice Axial Centrifugal Vacuum cleaner diameter 100 16008
€172.00
Tax included
€172.00
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 47
: 5
Pay in installments with Klarna
Frequently bought together
Features:
- Self-extinguishing PP thermoplastic resin structure V0
- Rated diameter 100 mm
- 3-speed fan with optional TRIO-CA device (cod. 12869), consisting of: AC motor, thermally protected, with shaft mounted on ball bearing support
- Centrifugal impeller with inverted blades
- Can be serviced to remote environmental sensors of: Temperature, Relative Humidity, Smoke and Presence
- Metal brackets for wall mounting in galvanized steel.
Technical specifications:
- Max. current consumption at max. speed (A) 0.22
- Max. current consumption at min. speed (A) 0,14
- Rated Duct Diameter (mm) 100
- Frequency (Hz) 50
- IP X4 Degree of Protection
- Insulation Class II
- Ø Exhaust (mm) 97
- Weight (Kg) 2.4
- Power consumption max (W) 50
- Max. power consumption at min. speed (W) 14
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 220-240
- Max flow rate at max speed (l/s) 69.7
- Max. flow rate at max. speed (m³/h) 251
- Max. flow rate at min. speed (l/s) 24
- Max. flow rate at min. speed (m³/h) 85
- Max pressure at max speed (Pa) 366
- Max. pressure at min. speed (mmH2O) 27
- Max. pressure at min. speed (Pa) 269
- Sound pressure Lp [dB (A)] 3m - max vel 56 db
Articolo arrivato in condizioni impeccabili. Consiglio vivamente.
servizio molto buono
Data sheet
- Diameter: 100
- Type: Centrifugal
