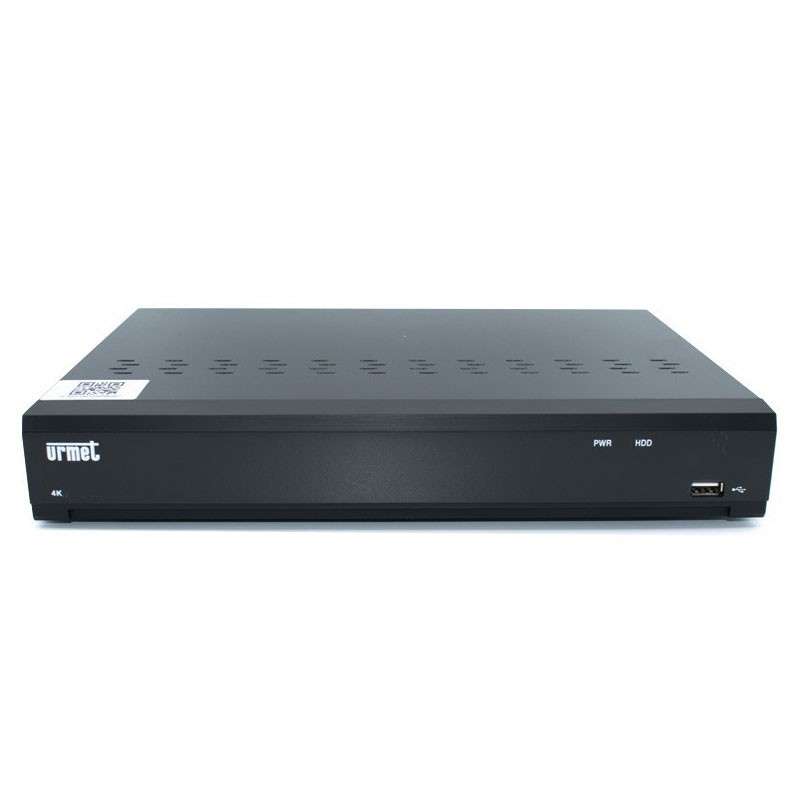

Video recorder HVR Urmet K series AHD 4K 4 channels 1097/624
UTD 1097/624
8021156071401
Video recorder HVR Urmet K series AHD 4 channels, is characterized by the most advanced features, compatibility with cameras in Analog technology, CVI, TVI, AHD 720P, AHD 1080P, 4M, 5M, 4K IP (up to 4K resolutions), and an extraordinary ease of use, thanks to the intuitive management menu.
Video recorder HVR Urmet K series AHD 4K 4 channels 1097/624
€187.26
Tax included
€187.26
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 14
Pay in installments with Klarna
The HVRs are fully manageable from both Windows and MAC systems, compatible with UVS software, the browser, available for IE and Safari, and the free iUVSpro application that allows convenient management from all smartphones and tablets both Android and iOS. UTC function that allows you to view and manage the OSD menu of the cameras directly from the HVR. The HVR 4K range integrates the management of the V-DECT function of intelligent video analysis for a BNC input and is available through IP cameras that provide this feature.
Features:
- Compression formats: Video: H.265 / H.264 Audio: ADPCM 8kHz*16bit
- Video inputs: 4-CH input with BNC video / 2-CH input with IP video (up to 6-CH with IP video input) (up to 6-CH with mixed video input: Analog + IP)
- Audio Inputs/Outputs: 4-CH RCA Input / 1-CH RCA Output
- Recording Resolution: 4K(3840x2160) / 5M(2560x1944) / 4M(2560x1440) / 3M(2048x1520) / 1080P(1920x1080) / 720P(1280x720) / WD1(960x576)
- Recording Frame Rate: Main-stream Analog: 8MP :7fps(per single ch) 5MP:12fps(per single ch), 4MP:15fps(per single ch) 1080P:25fps(per single ch) - NTSC: 30fps(per single ch) IP : PAL:25fps(per single ch) /NTSC: 30fps(per single ch) - Sub-stream Analog Max PAL?704*576: 10fps(per single ch)
- IP Recording Bandwidth: 12Mbps ~36Mbps (default 12Mbps; for each analogue channel excluded, the bandwidth increases by about 6Mbps, up to a maximum of 36Mbps)
- Maximum output bandwidth: 48Mbps
- Hard disk interface: Max. 1 Sata HDD (Max. 8T)
- Included HD: 1000GB HDD (default)
- Storage Spaces: External USB device /e-SATA / Network
- Web software / Multilingual client: Internet Explorer 10/11 / UVS pro
- Intelligent Video Analysis (for coaxial inputs): PID / LCD / PD / SOUND DETECTION / VIDEO TAMPERING
- Intelligent Video Analysis ( * according to IP camera model ):*Perimeter Intrusion Detection (PID), *Line Crossing Detection (LCD), *Stationary Object Detection (SOD), *Pedestrian Detection (PD), *Face Detection (FC), *Cross Detection (CC), Sound Detection, Video Tampering
- Alarm I/O: 4-CH Alarm Input, 1-CH Alarm Output
- PDA Mobile Software: Urmet iUVS PRO (iOS, Android)
- USB Ports : N°2 - 2.0
- Ethernet : 1 RJ45 10/100 Base-T
- Network Protocols : TCP/IP, DHCP, UDP, Urmet DDNS / UrmetDDNS2 with ID, P2P, PPPOE, Cloud Storage , SMTP , HTTPS , PPPPoE , FTP , RTSP , UPNP , SNMP
- BNC Output: 1 Out (704*576) Only for SPOT functionality for analog channels
- VGA Output: YES
- HDMI Output: YES
- Power Consumption: 9.2W ( 4.7W without HD )
- Power supply: 12V / 2A
- Operating Temperature: 0°C~+40°C / below 90%RH
- Cooling Fans: NO
- Dimensions (WXHXP): 300X53X227 mm
- Weight: ~3kg.
There are no reviews
Data sheet
- Type: Video recorders
- System: Hybrid
- Resolution: 8MP (4K)
- Channels: 4
