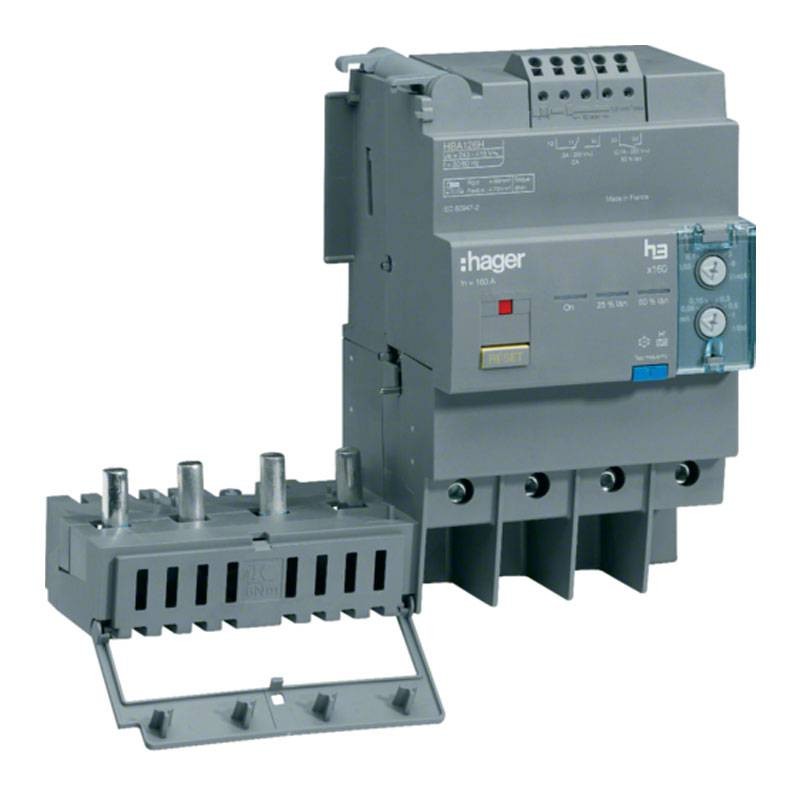

Hager Adjustable Differential Lock for X160 4P 125A 4 Modules HBA126H
HAG HBA126H
3250613121082
Hager h3 adjustable differential lock for X160 with the following features:
- Number of poles: 4P
- Rated current: 125 amps
- Rated operating voltage: 220 - 415V
- Rated insulation voltage: 500V
- Rated fault holding current: 6 kV
- Enclosure degree of protection: IP4X
- Type of differential protection: A HI
Hager Adjustable Differential Lock for X160 4P 125A 4 Modules HBA126H
€468.60
Tax included
€468.60
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Frequently bought together
The pure earth leakage circuit breaker is used to protect people, not systems. The moment the person goes to touch it, it creates a circuit with the ground. The current instead of staying in the household circuit, uses the human body to go to ground.
The residual current device,also called a circuit breaker, is a device in your electrical system. It is capable of opening the circuit, that is, shutting off the power supply, the moment the current accidentally dissipates.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. Instead, the circuit breaker is required for this type of problem.
Features:
- Mounting mode: DIN rail type O (symmetrical)
- Frequency (ETIM numerical value range): 50 to 60 Hz
- Flex downstream terminal capacity. Condu: 2.5 / 70 mm²
- Downstream terminal capacity rigid cond.: 2.5 / 95 mm²
- Solid cable cross-section x screw terminal connection: 2.5 / 95 mm²
- Flex. cable cross-section x terminal screw connection: 2.5 / 70 mm²
- Altitude: 2000m
There are no reviews
Data sheet
- Voltage: 220/415VAC
- Poles: 4P
- RCD Type: A
- Amps: 125A
- Circuit Protections: Earth Leakage add-on Blocks
