Bentel Wireless Alarm Kit with 64 Zone Control Panel BW64-K
BSY BW64-K

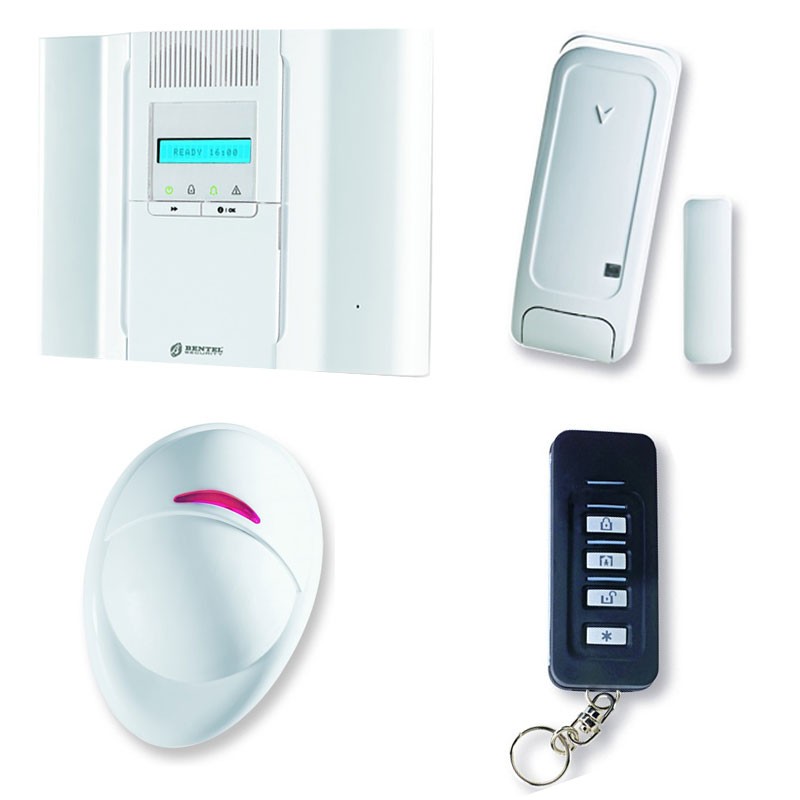

Bentel Wireless alarm kit with control panel unit 64 zones, consisting of:
- 1 piece two-way Wireless central unit 64 zones (art. BW64)
- 1 piece radio key with status indication (item BW-RCH)
- 1 piece radio magnetic contact (item BW-MCN)
- 1 piece volumetric detector (item BW-IRD)
Bentel Wireless Alarm Kit with 64 Zone Control Panel BW64-K
€562.67
Tax included
€562.67
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
: 2
Pay in installments with Klarna
KIT component specifications:
- 1 piece 64 zone central control unit (item BW64): Professional 64 zone radio control unit for advanced commercial and residential applications. It is a professional integrated burglar, fire and security radio control panel, prepared for the BW series, supporting advanced applications and innovative radio technologies. It offers excellent radio connection, superior quality and long battery life; a perfect and intuitive solution for monitoring service providers and professional installers. Remotely manageable and programmable with video alarm verification capability
Technical features:
- 64 Zones / 1 Wired Zone / 3 Areas
- 8 Wireless Sirens/1 Wired Siren Output
- 32 Proximity Tags / 32 Radio Commands / 32 Wireless Keypads
- 48 Users
- Event Log 100
- PSTN / GSM (optional) / IP (optional)
- Voice Messages / SMS
- Two-way Communication
- 4 Repeaters
- Programming from installer App
- Management from user App
- Auto insertion / Timer
- Dimensions mm: 266x201x63
- 1 piece radio key with status display (Art. BW-RCH): The BW-RCH is a 4-button miniature remote control for BW control panels designed for use with BW series control panels. It allows system arming and disarming, displaying system status, and operating a predefined programmable function. Commands are activated by pressing one of the four control buttons. The status is indicated by the status LEDs and buzzer after each command. The BW-RCH sends an alert to both the control panel and the user if the battery is depleted and needs to be replaced. Ergonomically designed with immediate status indication.
- 1 piece radio magnetic contact (item BW -MCN): The BW-MCN detector is a two-way radio magnetic contact for BW control panels. The device includes a built-in reed contact (which opens upon removal of the magnet placed near it) and a wired auxiliary input, which can be programmed as N.O.(Normally Open), N.C (Normally Closed) or E.O.L. (End Of Line), for use with additional detectors (pressure detectors, magnetic door contacts, etc.). The BW-MCN can be configured via the BW series control panels to allow the installer to disable the reed contact if only the auxiliary input is required. The reed contact and auxiliary input behave as separate transmitters, although they activate the same RF transmitter. The BW-MCN sends the parameters of the specific alarm to the control panel using the BW control panel communication protocol. The BW-MCN's anti-sabotage switch is activated when the cover is removed. A periodic supervisory signal is automatically transmitted. The central unit is then informed, at regular intervals, of the active presence of the device in the system. An LED lights up whenever alarm or sabotage events are reported. The LED does not light during the transmission of a supervisory signal. The supply voltage is provided by an internal 3V lithium battery. When the battery voltage is low, a "battery low" signal is sent to the receiver.
- 1 piece volumetric detector (item BW-IRD): Radio-based, passive infrared volumetricdetector . 15-meter range. Suitable for Bentel control panels of the BW series. Equipped with sophisticated digital signal processing in the frequency domain. It is composed of a combination of cylindrical and Fresnel lens; has a range of up to 15 meters, with an antistrike zone with motion counter that can determine whether one or two consecutive movements can trigger an alarm.
There are no reviews
Data sheet
- Type: Kit Anti-Theft
- System: Wireless
