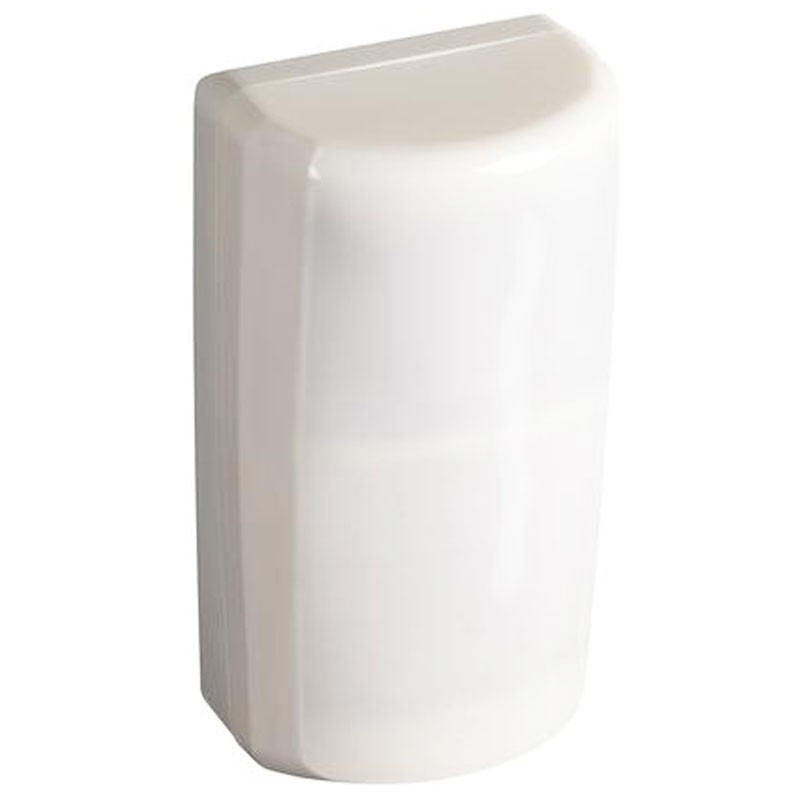

Bticino dual technology detector PIR MW 4271

Brand: Bticino TEST

Cod: BTI 4271 EAN: 8005543591055

Detector, Bticino with the following features:

Supply voltage 9.6 -14.5 Vdc
Absorption 25 mA stand-by; 38 mA max
Alarm relay: solid state, 60 V, 50 mA isolation 1500 Vrms
Tamper switch: form A (NC) 50 mA at 30 Vdc
IR sensor two sensitive areas (dual elements)
Selectable sensitivity: 2 or 3 steps
Dual technology (PIR +MW)
With Pet immunity function

To be purchased separately adjustable fixing joint for sensors: art 4273.

Request info about this product

Bticino dual technology detector PIR MW 4271

€45.08 Tax included

€45.08

Bticino dual technology detector PIR MW 4271

€45.08
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 21

: 2

Altre disponibilità dal produttore

Two-year warranty

Secure Payment

Easy return within 14 days

Purchase with tax breaks

Frequently bought together

Swivel joint for detectors fixing 4270 E 4271 Bticino 4273

BTI 4273

€5.02

Description

Dual technology indoor motion detection sensor (PIR+MW), with animal immunity function and adjustable range up to 12 meters.

Equipped with invisible lenses thanks to the use of the same lens material for the design of the entire front.

Other features:

Bticino series
Range 12 meters
Microwave operating frequency: 10 GHz
Microwave range 20 - 100% adjustable
Operating temperature: (- 10) - (+ 55) °C
Degree of protection IP40
Certification: EN 50131
Grade 2
Environmental Class II
Overall dimensions: 113 x 60 x 45 mm (H x W x D)

OPERATION:

Supervision: The supervisory functions of the 4271 motion detector include the following tests:

Ambient temperature within operating range
detector electronics in working order
supply voltage between 9.6 - 14.5Vdc

In case of fault detection:

Red alarm LED flashes
The alarm relay does not close again after an alarm signal; to reactivate it, it is necessary to switch it on again (only if the LED terminal is correctly wired).
Note: the detector does NOT activate an alarm (output and/or siren) in the event of a fault.

Animal Immunity: The 4271 motion detector is designed to allow the presence, in the controlled environment, of small pets (up to 10Kg) without signaling an alarm. The diagram below shows the areas of greatest discrimination between humans and pets. 4271 should be installed so that pets move only in the lightest colored spaces.
