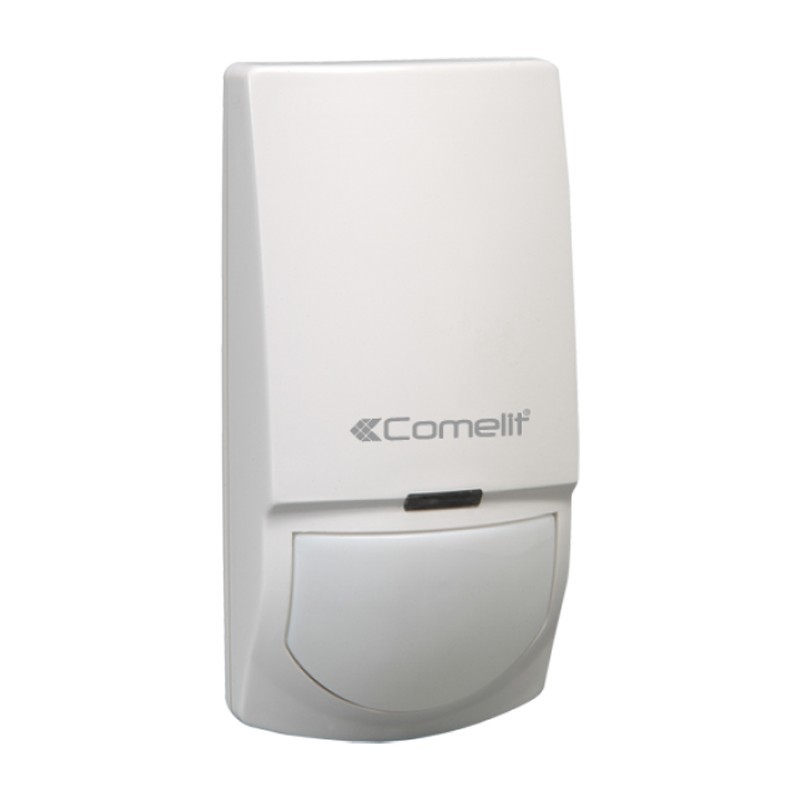

Comelit infrared detector dual technology antimasking
COE 30008012
8023903237139
Comelit infrared detector dual technology antimasking
Comelit infrared detector dual technology antimasking
€48.68
Tax included
€48.68
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
Pay in installments with Klarna
Dual Technology Sensor PIR quad and microwave 10 GHz with strip antenna, anti-masking, ASIC electronics and technology for the intelligent analysis of the size of the bodies, animal immunity adjustable to 15 kg or 25 kg, adjustable sensitivity PIR and MW.
White light immunity, installation height from 1.8 to 2.4 meters without the need for calibration, power supply from 8.2 to 16 VDC, range 18m @ mounting height 2.4m with 90 ° opening, alarm output and tamper NC with 10 ohm resistor protection.
Features:
- Dual technology sensor type anti-masking
- Type of detection PIR Quad and microwave pulse Doppler
- Anti-masking technology Yes
- Adjusting sensitivity infrared Yes
- Microwave sensitivity adjustment Yes
- Warm up time 1min
- Tamper anti-opening
- Automatic temperature compensation Yes
- ASIC electronics Yes
- Coating type Plastic
- Colour White
- Operating temperature (°C) -10 ÷ 50
- Dimensions: Height (mm) 123 Width (mm) 62 Depth (mm) 38
- Weight (g) 120
- Power supply voltage 16÷8.2VDC
- Maximum current absorption (mA) 25.5
- Maximum contact current capacity (mA) 100
- NC contact type
There are no reviews
Data sheet
- Type: Detectors
- System: With Wires
