URMET KIT Burglar alarm Easy IR sensors kit key and siren 1061/906
UTD 1061/906
8021156052097

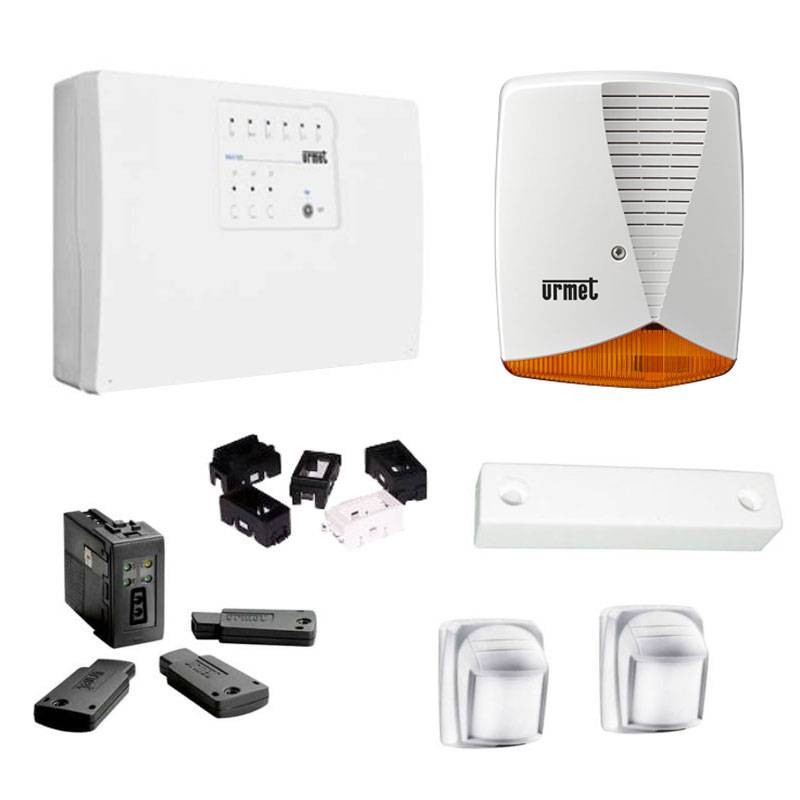

Kit wired burglar alarm Urmet Easy IR consists of:
- 1 central unit with 3 lines/zones (article code 1061/103)
- 1 high security electronic key kit (article code 1061/334)
- 2 passive infrared detectors (article code 1033/011) plus 1 magnetic contact (article code 1033/702)
- 1 self-powered external siren (article code 1033/414)
- 1 adapter kit for 1056, 1061, 1063 and 1067 series inserters (article code 1056/337)
URMET KIT Burglar alarm Easy IR sensors kit key and siren 1061/906
€177.88
Tax included
€177.88
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
Pay in installments with Klarna
Characteristics of the KIT components:
- 1 central unit with 3 lines/zones (article code 1061/103): It manages, via a microprocessor, the entire system. A compact, simple and intuitive burglar alarm control unit, suitable for small residential applications.
CHARACTERISTICS:
- 220-240 V~, 50/60 Hz power supply with 12V back-up battery.
- Normally closed inputs.
- Up to 8 control devices, freely chosen from key or transponder inserters (max 4) and keypads (max 4).
- 1 24H input (always active).
- Up to 10 keys.
- Up to 10 freely programmable codes (from 4 to 6 digits).
- Free association of the inputs to the zones.
- Freely selectable input and output times.
- 1 delayed input.
- LED on the front panel of the control unit to display status/events occurred.
- Possibility to exclude every single input through dedicated buttons on the front panel of the control unit.
- Automatic exclusion of the input after 8 consecutive alarms.
- Automatic exclusion of the open input at the time of activation (function selectable via dipswitch)
- Anti-sabotage tamper: 24V - 1A
- Maximum serial line length (+ - LA LB): 500m
- Max switching current Output (relay): 1A resistive
- Max switching voltage Output (relay): 30V
- Maximum cable cross section: 1.5 mm2
- Operating temperature declared by the manufacturer: -5 ÷ +45°C
- Certified working temperature: +5 ÷ +40°C
- Operating environment: indoor
- Degree of protection: IP30 / IK02
- Maximum dimensions (h x l x p): 240 x 340 x 85mm
- Weight (without battery): 1,450 kg
- Bottom and lid: ABS, white
High security key kit (article code 1061/334): It consists of 1 inserter compatible with Urmet Nea series and 3 electronic keys. The inserter allows the system to be activated and deactivated, even partially, by means of an electronic key and is connected to the control unit via the 4-wire bus.
2 passive infrared detectors with joint (item code 1033/011) plus 1 magnetic contact (item code 1033/702):
DETECTORS CHARACTERISTICS:
- Nominal supply voltage: 12V
- Operating voltage min - max: 9 ÷ 15V
- Absorption at 12V-: 9 mA nominal, 16 mA max
- Pulse count: x1 / x2
- Range: 12 m nominal (volumetric lens - standard)
- IR coverage: 108° (volumetric lens - standard)
- Alarm relay: solid state relay - 100 mA @ 24 V - R max = 35 Ω
- Tamper Tamper: 50 mA @ 24 V-
- Declared operating temperature: -10 ° C to +55 ° C
- Storage temperature: -20 °C ÷ +70 °C
- Degree of protection: IP30
- Degree of mechanical strength: IK02 (declared by the manufacturer)
- Dimensions without joint (l x h x p): 70 x 85 x 54 mm
- Dimensions with joint (w x h x d): 70 x 85 x 94 mm
- Total weight: 100 ± 2 g
Sensitive radii
- 31 in 4 planes (volum. lens - standard)
- 1 in 1 plane (curtain lens)
- 7 on 4 planes (long range lens)
MAGNETIC CONTACT CHARACTERISTICS:
- For universal use
- White thermoplastic material
- Visible mounting
- Visible mounting for indoor use
- Possibility 3 connections inside
- Suitable for wooden doors
- Dimensions: 40 (W) x 13 (H) x 17 (D) mm
1 self-powered outdoor siren (article code 1033/415):
- External cover in polycarbonate with high mechanical resistance
- Internal metal protection cage;
- Control managed by microprocessor;
- SA block input referred to positive;
- RM memory reset input with reference to positive or negative;
- Possibility of programming the ringing time in case of permanent absence of the blocking signal;
- Counting of the ringing: max 9 within 24 hours or within one activation (RM transition);
- Alarm storage if the control unit has an RM output (by flashing);
- Function "system status report": a lack of signal RM provided by the central causes a continuous flashing of the flash;
- Protection against battery polarity inversion (luminous signal) and power supply from control unit;
- Anti-opening and anti-removal protection;
- Initial blocking function: at the first power supply the device does not sound but the flashing of the flash will be activated; to prepare the siren for operation it is necessary to correctly supply the SA and RM signals from the control unit;
- In case of absence of the blocking signal after the programmed time (see "Programming the duration of sounding") the siren stops and will generate a new alarm cycle only with a subsequent absence of the blocking signal;
- Acoustic pressure at 3 meters 101 dB(A);
- Internal low-battery check that blocks the flash in the event of an alarm, giving priority to the siren.
- Rated supply voltage: 13.8V
- Minimum / maximum operating voltage: 10.5 V to 15 V
- Blocking voltage NC inputs to positive: 5.5 V- to rated voltage
- Absorption at rest: 15 mA Max. absorption in alarm: 1.2 A
- Incandescent lamp: 12V - 10W
- Degree of protection IP44
- Degree of mechanical resistance IK06
- Fundamental frequency 1480 Hz
- Operating frequency: min/max1400 ÷ 1600 Hz
- Acoustic pressure: 101 dB(A) at 3 m
- Allocatable battery: 12V 1.9 Ah; 12 V 2.2 Ah
- Tamper Tamper:1A @ 24 V
- Operating temperature: - 25°C ÷ + 70°C
- Low battery threshold voltage: ≤ 10,8 V
- Dimensions in mm: 254 x 314 x 108 (l x h x p)
1 adapter kit for 1056, 1061, 1063 and 1067 series inserters (article code 1056/337): The kit allows adapting the inserters/readers to the most common civil series. The kit consists of: 1 adapter Living International, 1 adapter B-Ticino Living, 1 adapter Vimar Plana, 1 adapter Vimar Idea, 1 adapter Gewiss Playbus.
Un buon kit per un sistema di antifurto casalingo.
devo ancora finire di installarlo, nel complesso mi sembra un buon prodotto, costa poco, certo non ti regalano niente... nemmeno le batterie sono incluse!!!
Data sheet
- Type: Kit Anti-Theft
- System: With Wires
