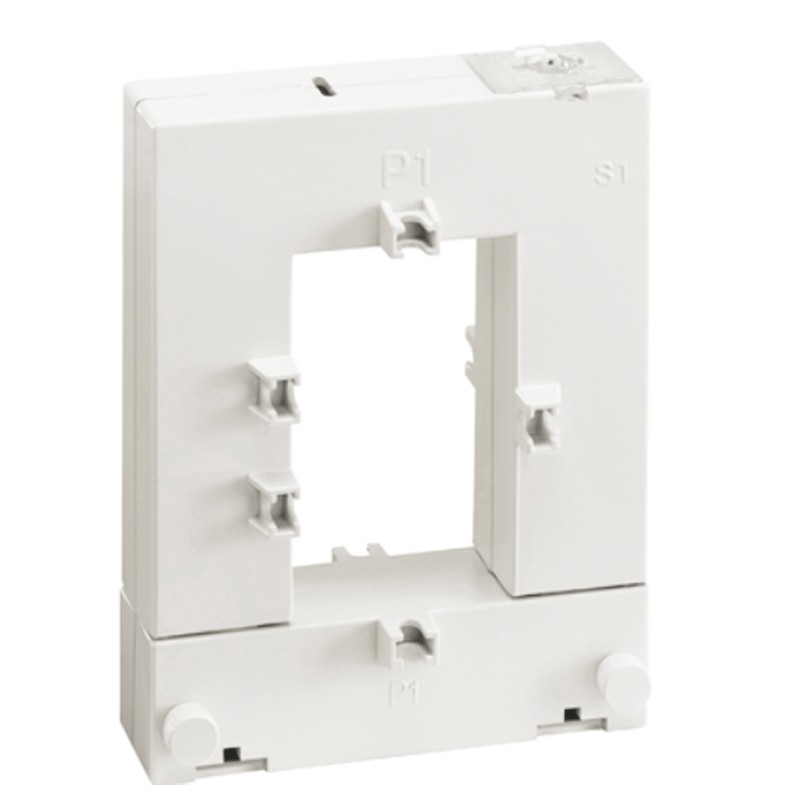

Lovato 300/5A openable current transformer bars 50x80mm DM1TA0300
LOV DM1TA0300
8013975178577
Lovato openable current transformer, with the following characteristics:
- Primary current Ipn (5) 300A
- Secondary current 5A
- Performance cl 0.5 1,5 VA - cl 1 3 VA
- Screw type connections
- Screw fixing
- Product weight 900gr
- Degree of protection IP30
- Cable for 50x80mm bars
Lovato 300/5A openable current transformer bars 50x80mm DM1TA0300
€115.03
Tax included
€115.03
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 3
Pay in installments with Klarna
DM Series Current Transformers ( CTs) are mounted in an electrical system to reduce line current to a secondary value of 5A compatible with the current inputs of digital multimeters or protective relays.
They are currenttransformers without primary winding and are normally used for high primary current values starting from 40A. The number of passages of the primary cable does not modify the accuracy characteristics, but reduces the value of the primary current with the same secondary current.
Features:
- Lovato series
- Primary current Ipn (5) 300A
- Secondary current 5A
- Permanent overcurrent Ipn 120
- Performance cl 0.5 1.5 VA - cl 1 3 VA
- Rated insulation voltage IEC/EN 720V
- Rated short-time thermal current Ith for s 40...60
- Rated dynamic current Idyn Ith for s 2.5
- Insulation in air class E
- Connections screw type
- Screw fixing
- Product weight 900gr
- Operating temperature min -25°C - max +50°C
- Storage temperature min -40°C - max +80°C
- Relative humidity 90%
- Degree of protection IP30
- Cable for 50x80mm bars
There are no reviews
Data sheet
- Type: Toroidal Transformers
- Section: 50mm
- Amps: 300A
