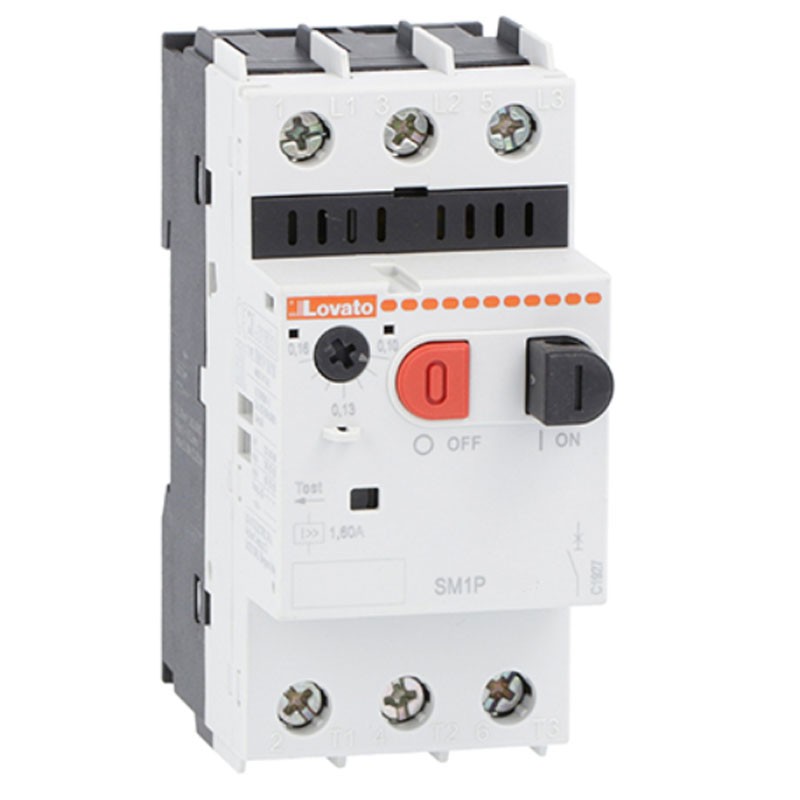

Lovato motor protector breaking capacity A 400V 100kA 0.4 to 0.63A SM1P0063
LOV SM1P0063
8013975216132
Lovato motor protection switch, with the following characteristics:
- Rated insulation voltage Ui IEC/EN 690V
- Rated impulse withstand voltage Uimp kV 6
- Rated frequency 50/60 Hz
- 3 poles
- Thermal trip adjustment range: 0.4...0.63
- Rated current (In) UN: 0.63
- Total power dissipation 1.95W
Lovato motor protector breaking capacity A 400V 100kA 0.4 to 0.63A SM1P0063
€37.38
Tax included
€37.38
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 9
: 2
Pay in installments with Klarna
Features:
- Lovato Series
- With magnetic protection
- With thermal protection
- With phase failure detection
- Magnetic trip: 13 x inch
- Trip class: 10A
- IEC - UN usage category
- Mechanical life: cycles: 100000
- Electrical life cycles:100000
- Screwdriver: PH2
- Power terminal protection according to IEC/EN 60529: IP20
- Cable stripping length
- Main circuit mm 1
- Operating temperature: min°C -20 - max°C 60
- Storage temperature: min°C -50 - max°C 80
- Compensation temperature: min°C -20- max°C 50
- Maximum altitude 3000 meters
- Operating position:normal Vertical plane - permissible Any
- Fixing:Screw / DIN Rail 35mm
- Weight:280 Grams
- Tightening torque for terminals (min Nm 2.5 - max Nm 3) - (min Ibin 1.8 - max Ibin 2.2)
- Maximum number of wires that can be connected simultaneously nr. 2
- Conductor cross section AWG/Kcmil: min 16 - max 8
- Cross section of flexible conductor without lug: min mm² 1
- Flexible conductor cross-section c/w cable lug: min mm² 1
- Flexible with insulated fork conductor section: min mm² 1
Breaking capacity of the operating short-circuit current (Ics) in AC
- 230V kA 100
- 400V kA 100
- 440V kA 100
- 500 V kA 100
- 690V kA 100
Maximum short-circuit breaking capacity (Icu) in AC:
- 230V kA 100
- 400V kA 100
- 440V kA 100
- 500V kA 100
- 690V kA 100
Motor disconnect:
- at 240V kA 50
- 480V kA 50
- 600V kA 50
- Protection: Fuse or CB
Group Motor Installation:
- at 240V kA 50
- 480V kA 50
- at 600V kA50
- Protection: Fuse or CB
Tap Conductor Protection:
- to 480Y/277V kA 50
- 600Y/347V kA 50
UL508 / UL 60947-4-1 Manual self-protected combination motor controller (Type E) Short circuit current:
- to 240V kA 50
- at 480Y/277V kA 50
- 600Y/347V kA 50
UL/CSA single-phase maximum power ratings:
- 110V-120V HP -
- 220V-240V HP
Maximum UL/CSA three-phase, 3-pole power ratings:
- 200V-208V HP -
- 220V-240V HP -
- 440V-480V HP -
- 550V-600V HP -
There are no reviews
Data sheet
- Type: Motor protection
- Poles: 3P
