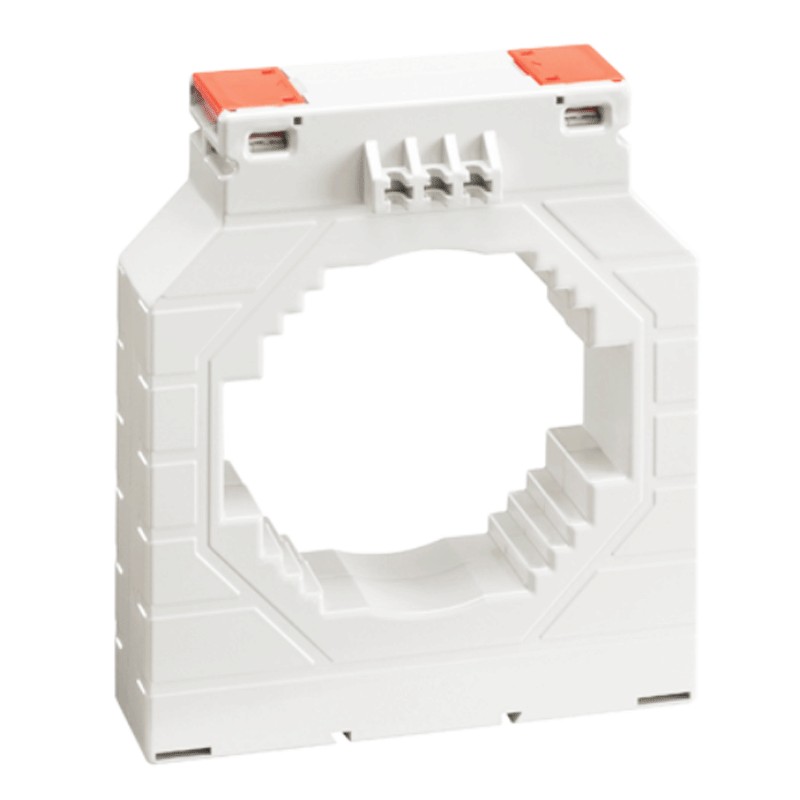

Lovato transformer 1000/5A for cable 86mm DM4T1000
LOV DM4T1000
8013975207741
Lovato toroidal current transformer, with the following features:
- 86 mm through cable
- Diameter 86 mm
- Frequency of use min 50 Hz - max 60 Hz
- Primary current Ipn 1000A
- Secondary current 5A
- Rated insulation voltage IEC/EN 720V
- Screw type connections
- DIN rail or screw fixing
- Product weight 700gr
- Degree of protection IP30
Lovato transformer 1000/5A for cable 86mm DM4T1000
€88.87
Tax included
€88.87
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 3
Pay in installments with Klarna
Features:
- Lovato Series
- Through cable 86 mm
- Diameter 86 mm
- Frequency of use min 50 Hz - max 60 Hz
- Primary current Ipn 1000A
- Secondary current 5A
- Permanent overcurrent Ipn 120
- Performance Cl 0.5 10 VA - Cl 1 20 VA
- Rated insulation voltage IEC/EN 720V
- Rated short-time thermal current Ith for s 40...60
- Rated dynamic current Idyn Ith for s 2.5
- Insulation in air class E
- Screw type connections
- DIN rail or screw fixing
- Product weight 700gr
- Operating temperature min -25°C - max +50°C
- Storage temperature min -40°C - max +80°C
- Relative humidity 90%
- Degree of protection IP30
There are no reviews
Data sheet
- Diameter: 86mm
- Type: Toroidal Transformers
- Section: 86mm
- Amps: 1000A
