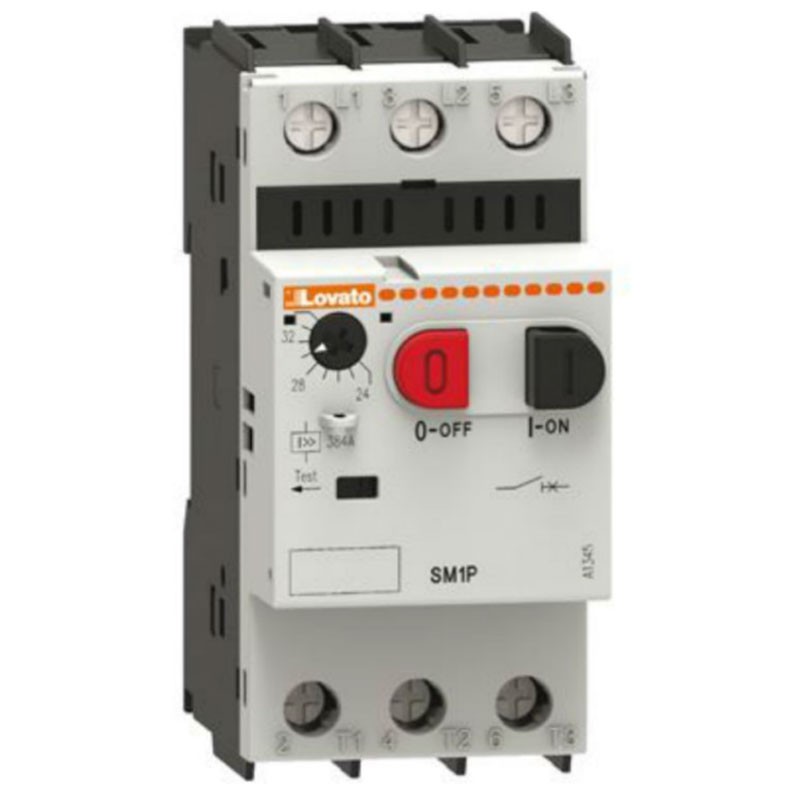

Lovato motor protector int. power A 400V 100kA 13 to 18A SM1P1800
LOV SM1P1800
8013975216217
Lovato motor protector, with the following characteristics:
- Rated insulation voltage: 690V
- Rated impulse withstand voltage (Uimp): Kv 6
- Rated frequency: 50/60 Hz
- Thermal trip adjustment range: 13...18
- Rated current In: 18A
- Magnetic trip: 13 x In
- Overall dimensions: 2.5 modules
- 3 poles
Lovato motor protector int. power A 400V 100kA 13 to 18A SM1P1800
€40.97
Tax included
€40.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 43
: 19
Pay in installments with Klarna
Other features:
- Mechanical life cycles:100,000
- Electrical life cycles: 100.000
- Max number of conductors installable at the same time: 2
- Working temperature: min °C -20 - max °C 60
- Storage temperature: min °C-50 - max °C 80
- Compensation temperature: min °C-20 - max °C 50
- Maximum altitude: 3,000
- Mounting position: Normal On vertical plane - Any allowed
- Fixing: screw / omega-profile 35mm
- Weight: 350 grams
Terminal tightening torque
- min Nm 3
- max Nm 3
- min Ibft 2
- max Ibft 2
There are no reviews
Data sheet
- Type: Motor protection
- Poles: 3P
