Lovato motor-circuit switch A 400V 100kA 20 to 25A SM1P2500
LOV SM1P2500
8013975216231

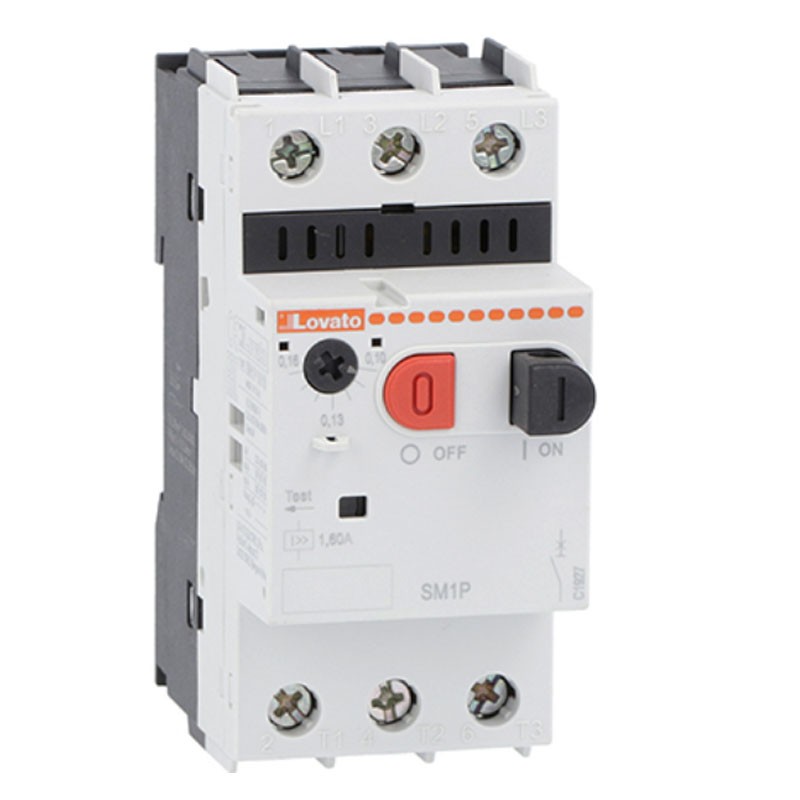

Lovato SM1P motor-circuit switch, with the following characteristics:
- IEC breaking capacity: Icu 100kA at 400V, 20 to 25A
- Number of poles: 3
- Magnetic protection: yes
- Thermal protection: yes
- Phase failure detection: yes
- IEC/EN rated insulation voltage Ui: IN 690
- Rated impulse withstand voltage Uimp: kV 6
- Rated frequency: 50/60 Hz
- Thermal trip adjustment range: 20...25
- Rated current (In): UN 25
- Magnetic snap: 13 x In.
Lovato motor-circuit switch A 400V 100kA 20 to 25A SM1P2500
€49.53
Tax included
€49.53
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 13
: 4
Pay in installments with Klarna
Other technical characteristics:
- Total power dissipation: In 2.83
- Trip class: 10A
- IEC usage category: UN
- Mechanical life: 100000 cycles
- Electrical life: 100000 cycles
- Maximum number of wires that can be connected at the same time: No 2
- Screwdriver: PH2
- Protection of power terminals according to IEC/EN 60529: IP20
- Wire stripping length: main circuit mm 1
- Operating temperature: 20/+60°C
- Storage temperature: -50/+80°C
- Compensation temperature: -20/+50°C
- Maximum altitude: m 3000
- Operating position: normal vertical plane - permissible any
- Fixing: screw/35mm DIN rail
- Weight: 350 grams
Tightening torque for terminals:
- Min: Nm 2.5
- Max: Nm 3
- Min: lbs 22
- Max: lbs 26.5
Todo correcto muchas gracias No he podido ponerlo todavía pero por lo demás muy bien
Data sheet
- Type: Motor protection
- Poles: 3P
