Lovato motor saver int. power A 400V 100kA 2.5 to 4A SM1P0400
LOV SM1P0400
8013975216170

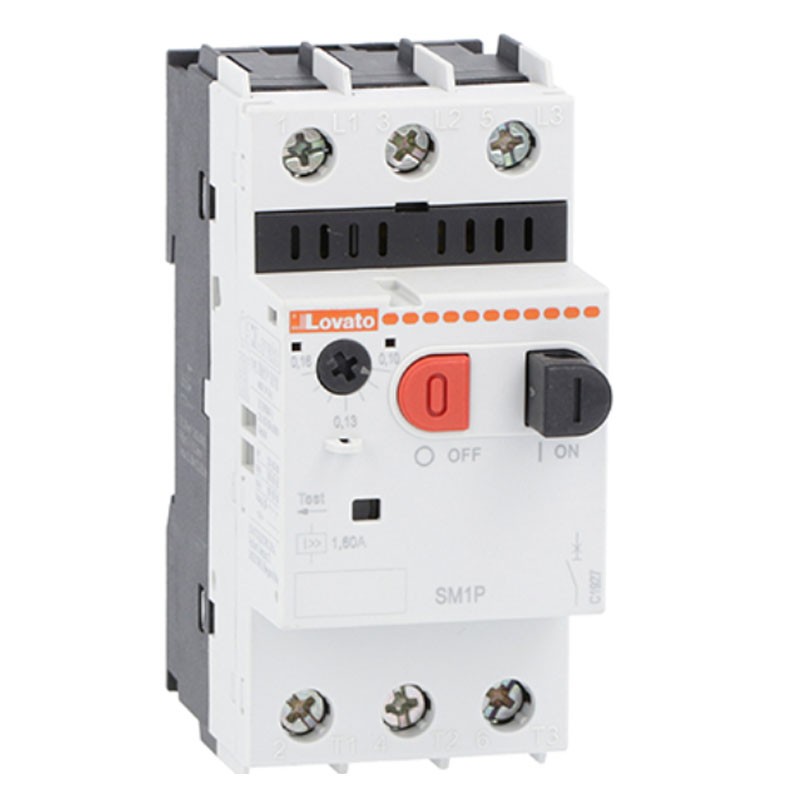

Lovato SM1P motor protection circuit breaker, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- Rated frequency: 50/60 Hz
- Thermal trip adjustment range: 2.5...4
- Rated current (In): UN 4
- Magnetic snap: 13 x In.
- Total power dissipation: 2.29W
- Trip class: 10A
- Phase failure detection: yes
- Number of poles: 3
Lovato motor saver int. power A 400V 100kA 2.5 to 4A SM1P0400
€37.38
Tax included
€37.38
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 124
: 43
Pay in installments with Klarna
Other technical features:
- Magnetic protection: yes
- Thermal protection: yes
- IEC usage category: UN
- Mechanical life: cycles 100000
- Electrical life: cycles: 100000
- Maximum number of wires that can be connected at the same time: 2
- Screwdriver: PH2
- Protection of power terminals according to IEC/EN 60529: IP20
- Wire stripping length: main circuit mm 1
- Operating temperature: min °C -20 - max °C +60
- Storage temperature: min °C -50 - max °C +80
- Compensation temperature: min °C -20 - max °C +50
- Maximum altitude: m 3000
- Operating position: normal vertical plane, permissible any
- Fixing: screw-on / 35mm DIN rail
- Weight: 350 grams
Perfetto nulla da dire il signor Lovato mi ha contattato prima della consegna e mi ha dato tutte le delucidazioni che ho richiesto
Data sheet
- Type: Motor protection
- Poles: 3P
