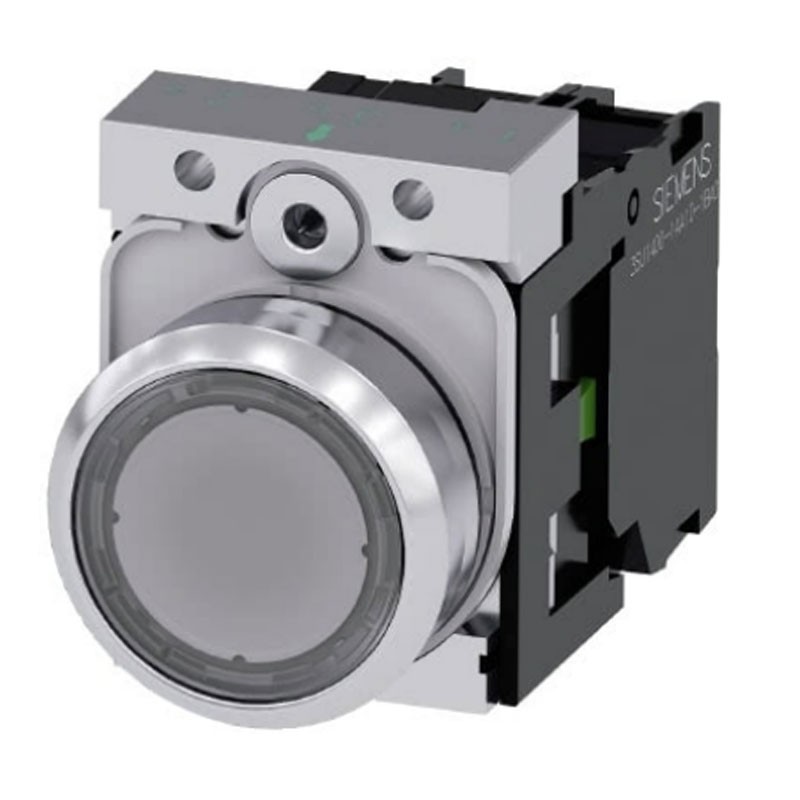

Siemens luminous transparent pushbutton LED 230V 22mm 3SU11560AB701BA0
SIE 3SU11560AB701BA0
4011209966406
Siemens transparent indicator/button light with the following characteristics:
- Supply voltage of light source with AC: 230V
- Rated pollution degree: 3
- Isolation voltage: 320V
- Voltage type: AC/DC
- Maximum inrush current of LED module: 3 amps
- Overvoltage resistance: 4 kV
- Metal, polished, 22mm
- Number of LED modules: 1
- Light source color: transparent
- Temperature during operation: -25/+70°C
- Temperature during storage: -40/+80°C
- Button shape/material: round/plastic
- Degree of protection: IP66, IP67, IP69 (IP69K), IP20
- NEMA shock resistance: 1, 2, 3, 3R, 4, 4X, 12, 13
- Mounting method: face plate mounting
Siemens luminous transparent pushbutton LED 230V 22mm 3SU11560AB701BA0
€19.54
Tax included
€19.54
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 19
Pay in installments with Klarna

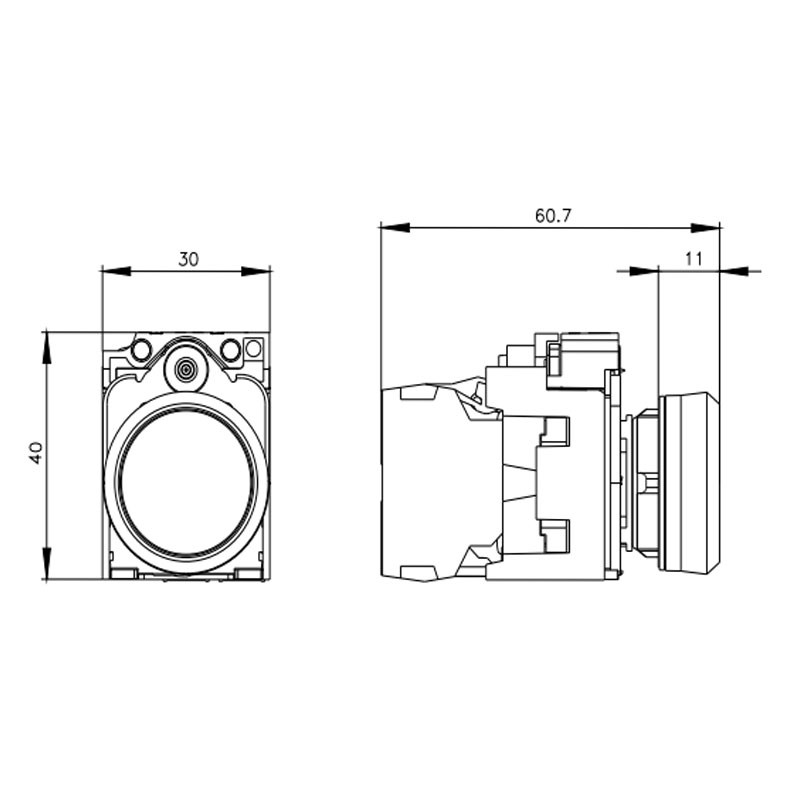

Dimensions:
- Height 40 mm
- Width 30 mm
- Circular recessed window shape
- Recessed diameter 22.3 mm
- Positive tolerance of recessed diameter 0.4 mm
- Recessed height 11 mm
- Recessed width 29.5 mm
- Recessed depth 49.7 mm
There are no reviews
Data sheet
- Type: Buttons
