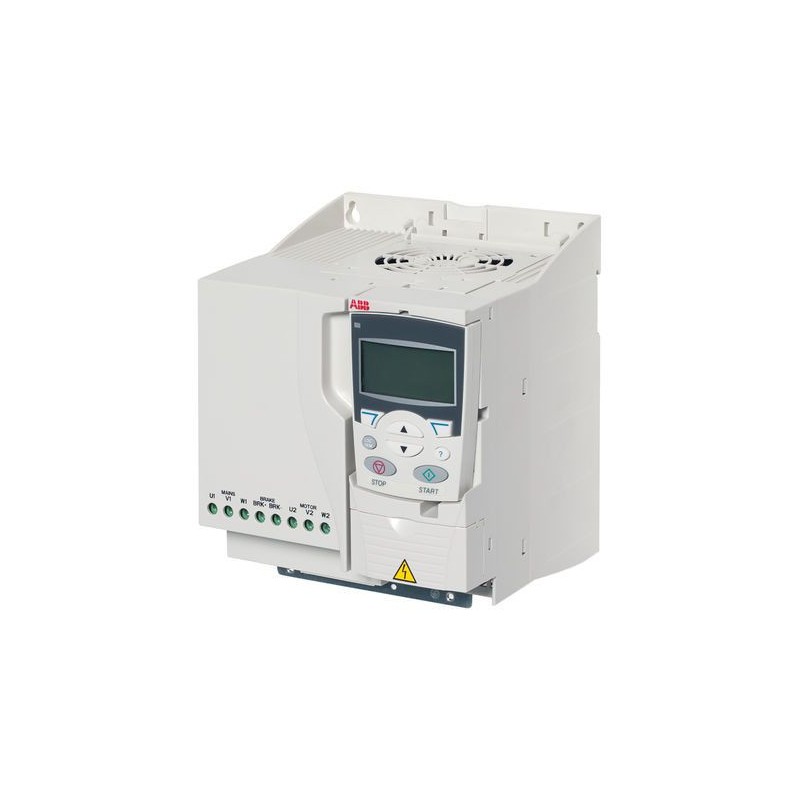

Inverter ABB three-Phase 5.5 KW with filter 380/480V ACS355-03, AND-12A54
ABB ACS355-03E-12A54
9000005118459
Inverter ABB three-Phase 5.5 KW with filter 380/480V technical specifications Kw 4,0 - hp 5 - To 12.5 - Losses typical W 119 - Voltage MPPT min. 460 max 800 - DC Voltage min. 250 max 840. Power supply three-Phase ac, 250 to 800V c.c. or 380 to 480 V ac Product, without the panel. Dimensions Width 167 - length 236 - depth 195
Inverter ABB three-Phase 5.5 KW with filter 380/480V ACS355-03, AND-12A54
€1,595.76
Tax included
€1,595.76
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Frequency converters for systems installed in island, +N827 The system for the plants in the island consists of a pump, a system of photovoltaic panels (PV) to provide the voltage and energy required for the pump, and a frequency converter for the pumps that converts the energy of the PV voltage in c.c. and current in c.c. to fit the engine in the ac Very often, it is of submersible pumps with motor integrated into the pump itself. The frequency converter ABB plants in the island is environmentally friendly, has a long service life and reduced maintenance costs. Is independent of the distribution network and does not generate any type of pollution or environmental noise. Among typical applications are those intended for allirrigazione, to the network of distribution of public water, to fish farms, and both to agriculture. This variant uses lalgoritmo Maximum Power Point Tracking to maximize the production of the photovoltaic panel and the functions specific to pumping of water as the detection of dry running and the calculation of the flows.
