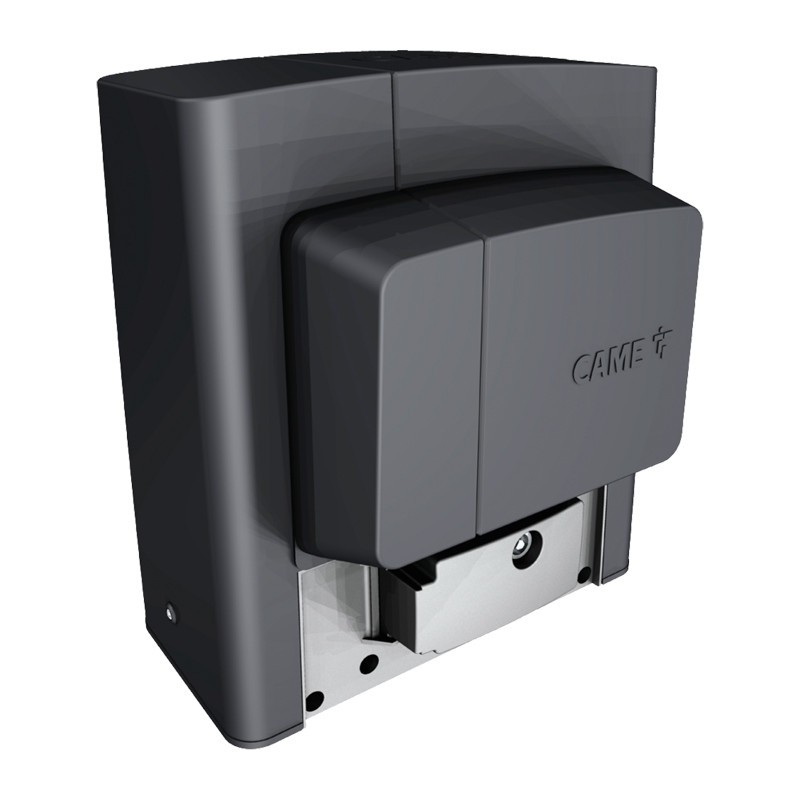

Came motor for sliding gates 1200KG 801MS-0080
CMC 801MS-0080
8050456067609
Came BK 801MS motor for large sliding gates, with electronic board with display for programming, built-in radio decoder and mechanical limit switch for gates up to 1200 KG and 20 metres long.
Came motor for sliding gates 1200KG 801MS-0080
€710.00
Tax included
€710.00
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 2
Pay in installments with Klarna
BK 801MS is the complete answer to the automation needs of condominial, industrial and collective sliding gates in general. Maximum flexibility in the automation of multi-user passages.
In addition to the usual control and safety functions, it offers a number of special features that allow total control of automation and optimisation of the service:
- Safe and facilitated passage with the possibility of connecting and controlling auxiliary lighting of the entrance area.
- Partial opening to facilitate pedestrian passage, without opening the entire frame.
- Test of active safety devices on the system before each gate operation, both during opening and closing.
Features:
-
230V 50/60 Hz power supply
- Motor power supply 230V 50/60 Hz
-
Absorption 3,3A
-
Power 380W
- Maneuvering speed 14,5 m/min
-
Thrust 850N
-
Working range: intensive service
-
Motor thermal protection 150°C
- Module 4 pinion for transmission of movement to the rack
-
Plug-in connectors for RIOCN8WS, R700, R800, RSE boards and AF receiver
-
Manages up to 250 users Rolling code
-
Ready for magnetic limit switches
-
Self-diagnosis of safety devices
-
Predisposition for connection of Rio wireless security
-
Compatible with CAME KEY
-
Operating temperature: -20 °C min +55 °C max
-
Acoustic pressure: ≤70dB
-
Weight: 18Kg
-
Dimensions: 326 x 359,5 x 262 mm
There are no reviews
Data sheet
- Type: Engines Gates
- Model: Sliding
