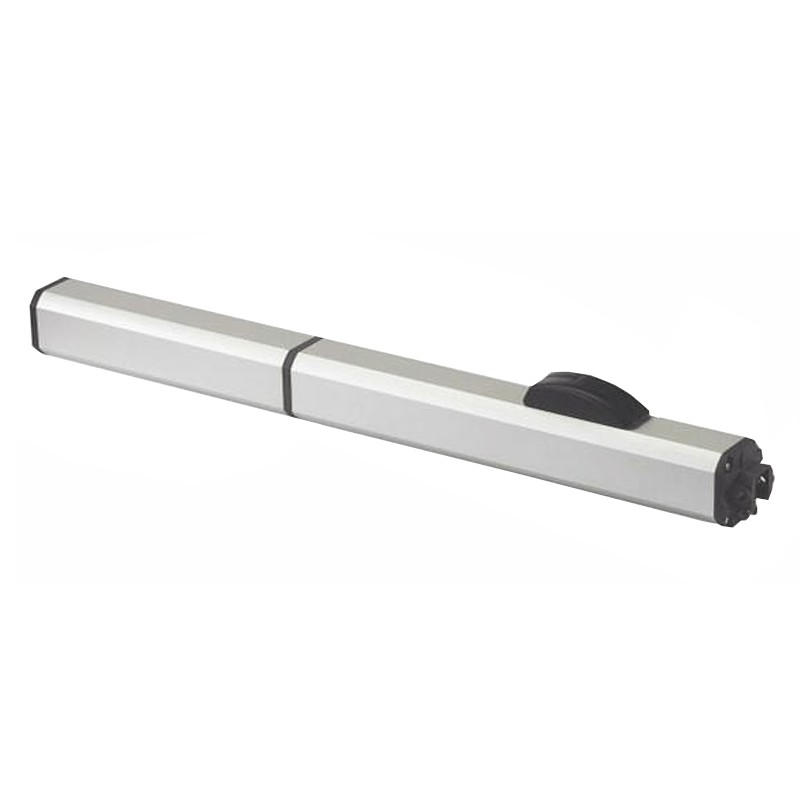

FAAC hydraulic swing motor 2,20 max 104205
FAA 104205
8055195000610
Faac 404 CBC hydraulic motor/actuator, for condominium and industrial swing gates.
FAAC hydraulic swing motor 2,20 max 104205
€822.28
Tax included
€822.28
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 4
Pay in installments with Klarna
With hydraulic lock resistant to intrusion attempts.
Maximum safety against crushing thanks to an exclusive hydraulic device.
Extremely silent movement, and with release device protected by key.
Features:
- Supply voltage: 230 Vac (+6% -10%) 50 (60) Hz
- Absorbed power 220W
- Absorbed current 1A
- Operating ambient temperature -20°C ÷ +55°C
- Thermal protection on motor winding 120°C
- Rod exit speed: 1 cm/s
- Pump flow rate: 1 l/min
- Traction and thrust force: 0÷620 daN
- Weight: 8,6 kg
- Type of oil FAAC HP OIL
- Degree of protection IP55
- Dimensions (L x W x H) in mm: 1031 x 113 x 85 mm - long version 1285 x 113 x 85 mm
- Max. single leaf width 2.20 metres
- Frequency of use (cycles/hour) 70
- Electronic equipment not included
There are no reviews
Data sheet
- Type: Engines Gates
- Model: Swing
