FAAC hydraulic motor 422sbs max door 3,00 104210
FAA 104210
8055195000665

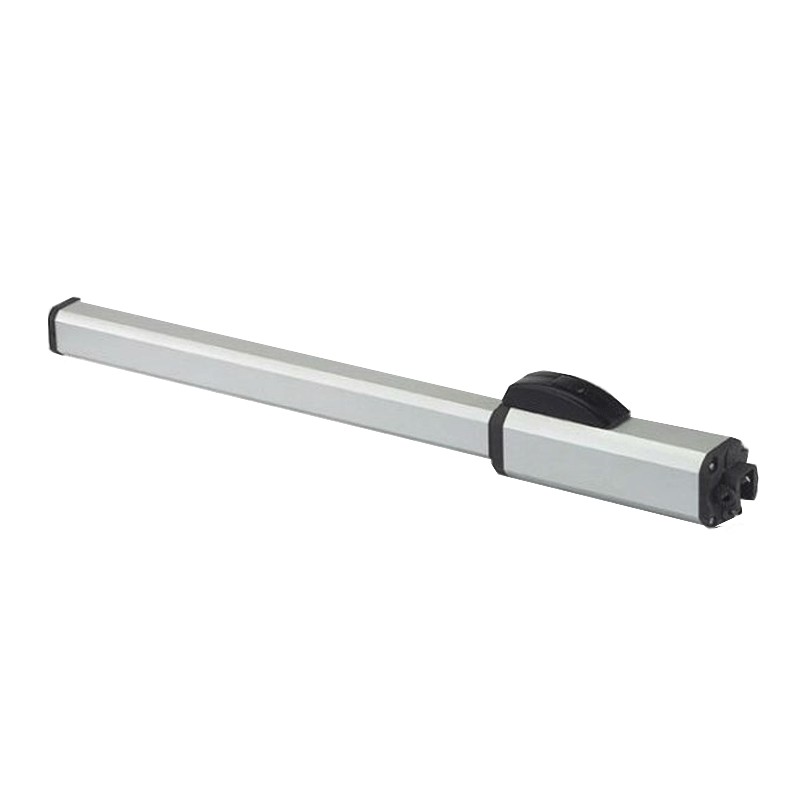

Faac 422 SBS hydraulic motor/actuator, for external swing gates, maximum height 3 metres.
FAAC hydraulic motor 422sbs max door 3,00 104210
€611.81
Tax included
€611.81
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
: 1
Pay in installments with Klarna
Anti-corrosion coating with high resistance to atmospheric agents.
Features:
- Mains voltage 220-240V ~ 50/60Hz
- Electric motor: single-phase asynchronous
- Power: 220W
- Max thrust force 6900 N
- Speed 10 mm/s
- Motor-pump group flow rate 0.75 lpm
- Unblocking device protected by key
- SBS version (without slow block)
- Stem stroke 250 mm
- Max leaf opening angle 110°C
- Working environment temperature -20°C ÷ + 55°C
- Thermoprotection 120°C
- Degree of protection IP55
- Weight 7 Kg
- Frequency of use 55 cycles/hour
- Max leaf width: 3 metres (with electric lock)
- Type of oil FAAC HP OIL
- Dimensions (WxDxH) :987 x 120 x 85 mm
- Electronic equipment not included
- Rear connection to weld/screw
- Front connection to weld/screw
There are no reviews
Data sheet
- Type: Engines Gates
- Model: Swing
