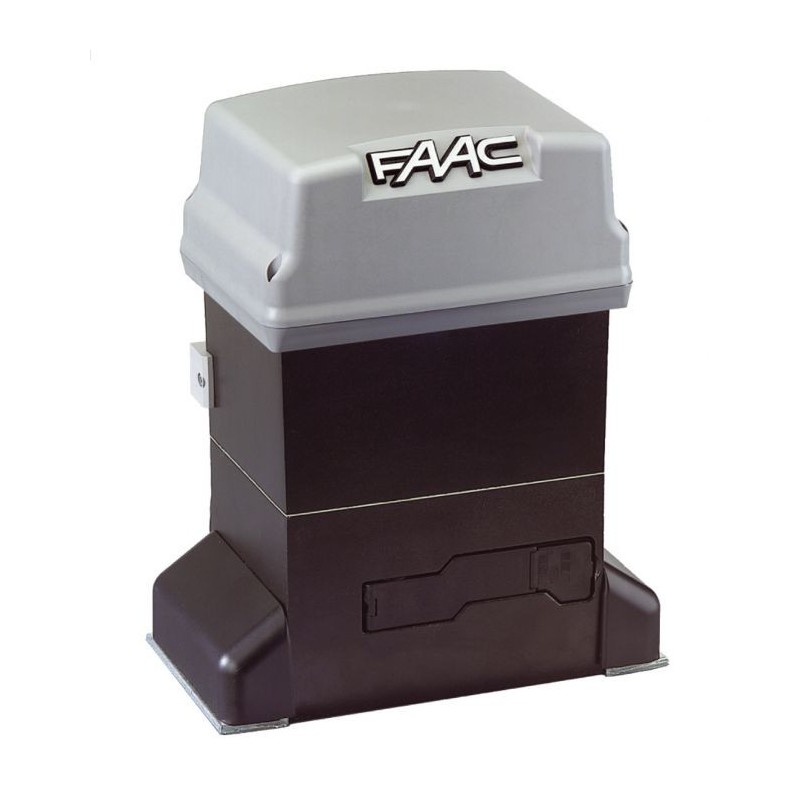

Faac motor for sliding gate 844 ERZ16 109837
FAA 109837
8055195003390
Faac gearmotor for sliding gate 844 E R Z16.
Faac motor for sliding gate 844 ERZ16 109837
€1,021.86
Tax included
€1,021.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 51
Pay in installments with Klarna
Maximum anti-crushing safety: two-plate clutch in oil bath combined with magnetic encoder.
Prearrangement for height and side adjustable fixing.
Features:
- Mains voltage: 220-240V~ 50/60 Hz
- Electric motor: single-phase asynchronous
- Max power: 660 W
- Max torque 37 Nm
- Max thrust force: 1.160 N
- Reduction ratio: 1:30
- Max leaf width: 40 meters
- Leaf speed: 9,5 m/min
- Speed adjustment and motor control: No
- Limit switch: Magnetic
- Pinion: Z16 module 4
- Encoder: Magnetic encoder
- Force adjustment: Two-plate clutch in oil bath and via card
- Working environment temperature: -20°C ÷ +55°C
- Thermoprotection: 120°C
- Protection degree IP44
- Weight 14,5 Kg
- Type of oil FAAC HP OIL
- Dimensions (WxDxH): 277 x 155 x 388 mm
- Max door weight: 1.800 Kg
- Frequency of use: 70
- Electronic equipment: 780D incorporated
There are no reviews
Data sheet
- Type: Engines Gates
- Model: Sliding
