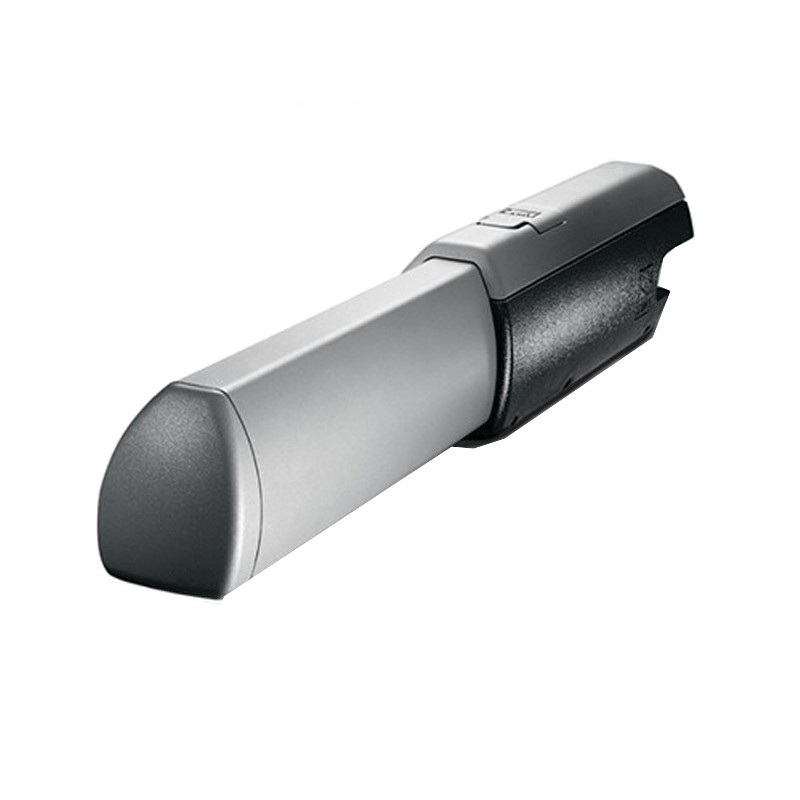

Came motor swing door max 5 meters 230V 001A5000
CMC 001A5000
8050456004147
Came gearmotor for swing gate irreversible 230V, up to max 5 meters per leaf. Version with double limit switch.
Came motor swing door max 5 meters 230V 001A5000
€410.69
Tax included
€410.69
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 5
Pay in installments with Klarna
Article capable of satisfying even the most complex needs such as intensive use conditions, for example in condominium or industrial applications, electromechanical automation for medium and large swing gates. With planetary reduction system.
The external structure is completely made of aluminium to guarantee sturdiness and protection from atmospheric agents.
The practical door facilitates access to the motor release key for manual opening of the leaf in case of need.
It offers the maximum power available for each manoeuvre. All the construction details have a precise function and every detail has been taken care of, combining essentiality and aesthetics.
In addition to the usual control and safety functions, it offers a number of features that allow total control of the automation and optimisation of the service:
- Complete control of the window frame from the radio control including the possibility of making an immediate stop of the movement.
- Programming of the command for partial opening of the leaf, ideal for all entrances without a pedestrian gate.
- Test of the safety devices active on the system before each operation of the gate both during opening and closing.
Features:
- 230V 50/60 Hz power supply
- Motor power supply 230V 50/60 Hz
- Absorption 1,2A
- Nominal power 150W
- Degree of protection IP44
- Intermittence of work 50%
- Adjustable thrust 400-3000N
- Motor thermal protection 150°C
- Opening time: (90°) 19-32s
- Working temperature: -20 °C min +55 °C max
- Material: cast aluminium
- Dimensions: 933 x 126 x 88 mm
There are no reviews
Data sheet
- Type: Engines Gates
- Model: Swing
