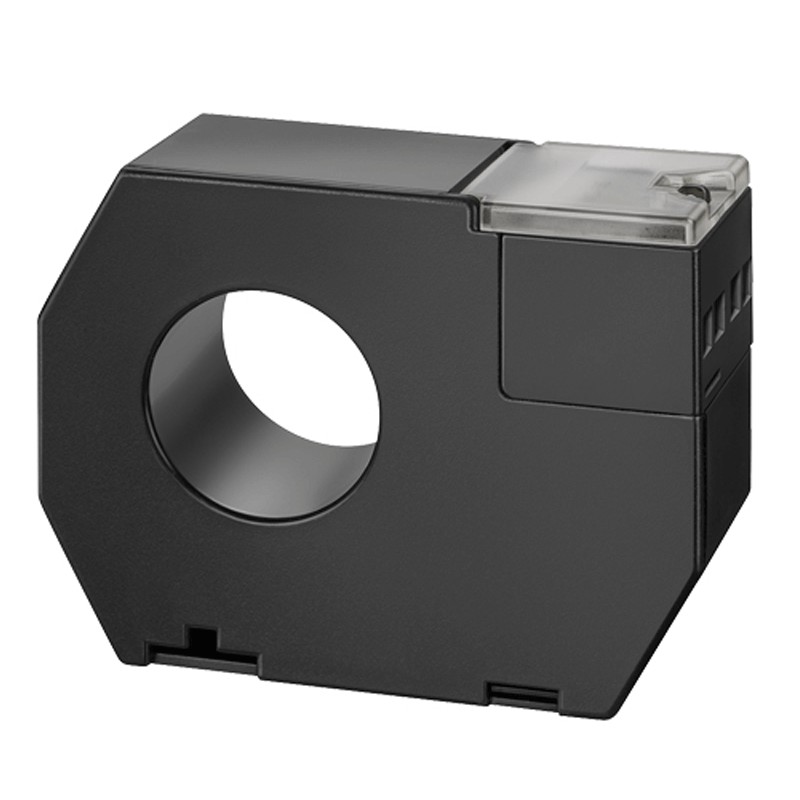

Siemens closed toroid transformer diameter 140mm 5SV87050KK
SIE 5SV87050KK
4001869397696
Closed Toroid current summing transformer Siemens, with the following characteristics:
- Internal diameter 140 mm
- Differential current (Idn)/min 300 mA
- Cable length max 10 mm
- Operating current nominal value 500A
- Degree of protection with connection of all terminals IP20
- Voltage type of the operating voltage for the AC drive
- Rated impulse withstand voltage 4 kV
- Operating voltage max. nominal value 720 V
- Frequency of operation nominal value min 50 Hz - max 60 Hz
- Ambient temperature during operation min -10 °C - max 50 °C
Siemens closed toroid transformer diameter 140mm 5SV87050KK
€295.25
Tax included
€295.25
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 2
Pay in installments with Klarna
Features:
- Siemens series
- Internal diameter 140 mm
- Differential current (Idn)/min 300 mA
- Cable length max 10 mm
- Degree of protection with connection of all terminals IP20
- Type of operating voltage for the AC drive
- Rated impulse withstand voltage 4 kV
- Operating voltage max. nominal value 720 V
- Starting current limited to 2 s max 3000 A
- Frequency of use nominal value min 50 Hz - max 60 Hz
- Operating current nominal value 500A
- Control supply voltage with AC 50 Hz nominal value max 720 V
- Supply voltage with AC at 60 Hz max. nominal value 720 V
- Suitable for use in AC networks
- Product function error saving No
- Electrical connection design screw connection
- Height 33 mm
- Width 230 mm
- Depth 196 mm
- Net weight 1200 gr
- Ambient temperature during operation min -10 °C - max 50 °C
There are no reviews
Data sheet
- Diameter: 140 mm
- Type: Toroidal Transformers
- Section: 10mm
- Amps: 500A
