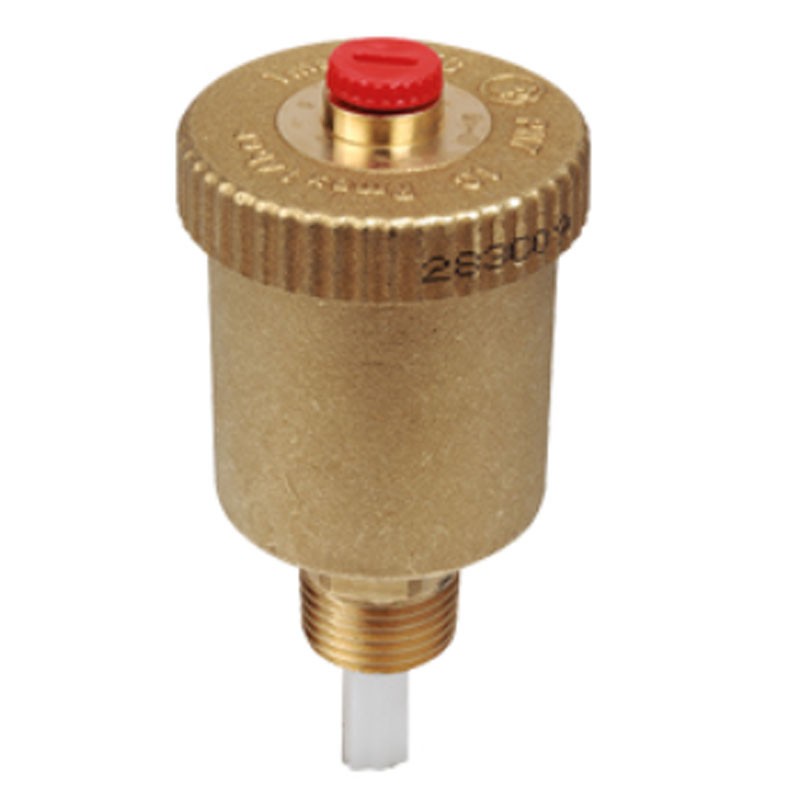

Giacomini automatic air vent valve 1/2 R160 R99IY003
GIA R99IY003
8009902128593
Giacomini high performance automatic air vent valve, complete with R160 shut-off valve, for heating/cooling or sanitary systems. Size 1/2" (R, EN10226).
Giacomini automatic air vent valve 1/2 R160 R99IY003
€6.16
Tax included
€6.16
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 116
Pay in installments with Klarna
The R99I automatic air vent valves are able to discharge large quantities of air formed in the hydraulic circuits of heating/cooling systems or sanitary systems. In this way it is possible to avoid the occurrence of negative phenomena that can compromise the duration and the efficiency of the heating system. The valves preform during normal operation of the system, where the discharge must take place intermittently and not continuously, with modest amounts of air to be discharged.
Characteristics:
- Giacomini series
- Temperature range: 5÷120 °C
- Maximum working pressure: 14 bar
- Maximum operating pressure air vent: 7 bar
- Operating fluids: water and glycol solutions (max 50 %)
- Body and cover: brass UNI EN 12165 CW617N
- O-Ring: EPDM
- Shutter spring: stainless steel
- Internal float: PP-H

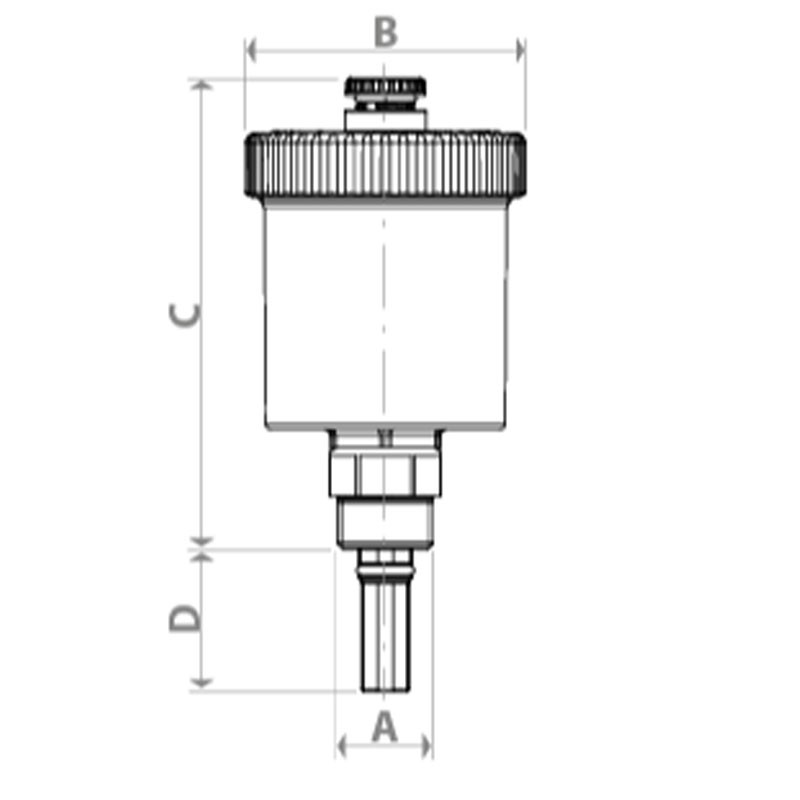

Dimensions:
- A 1/2" (R, EN10226)
- B 48 mm
- C 81 mm
- D 25 mm
There are no reviews
Data sheet
- Type: Hydraulic and Dirt Separators, Filters
- Hoses: 1/2
