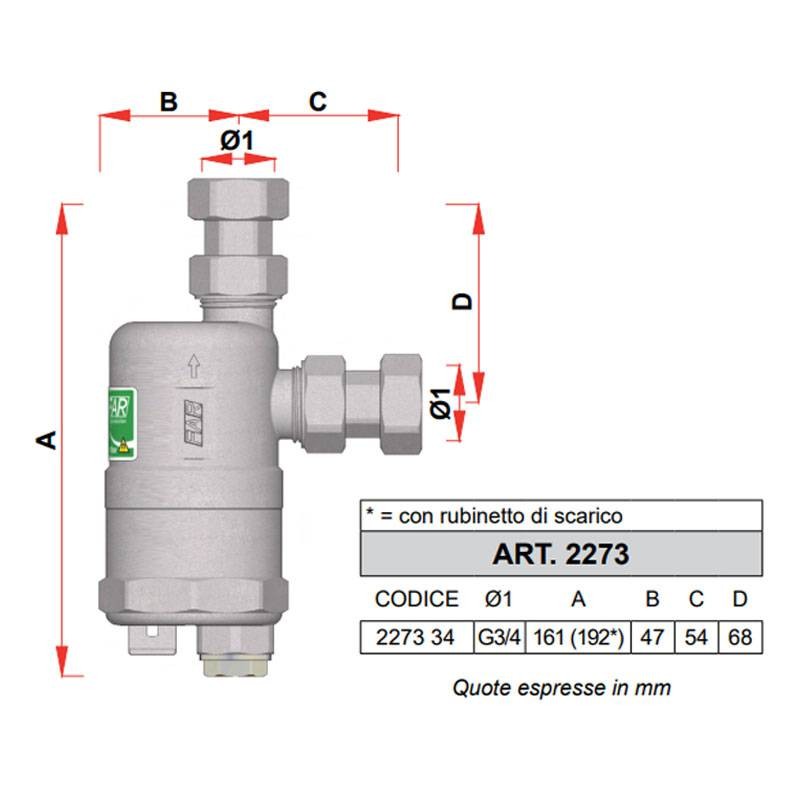

Far ultra-compact magnetic Dirt Separator 2273 3/4" for thermal systems 2273 34
FRU 2273 34
Far 2273 ultra-compact magnetic Dirt Separator for thermal systems for removing ferrous particles:
- 3/4" size
- Kv (cubic meters/h) 6.35
- CB753S brass body
- Finish: CHROME
- Connections to piping: F-F
- Drain cock for sludge evacuation
- Rated pressure: 10 bar
- Maximum operating temperature: 110°C
- Fittings size 3/4 F-F
- Removable cartridge
- Removable magnet
- Patent Pending
- Registered Community Design
Far ultra-compact magnetic Dirt Separator 2273 3/4" for thermal systems 2273 34
€77.19
Tax included
€77.19
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 47
Pay in installments with Klarna
SPECIFICATION ITEMS:
- Ultra-compact defangator for thermal systems complete with magnet for ferrous particle elimination, CB753S brass body, chrome-plated finish, connections to F-F piping, drain cock for sludge evacuation, rated pressure 10 bar, maximum operating temperature 110°C, fittings size 3/4 F-F, removable cartridge and removable magnet.
Ultra-compact defangator for thermal systems complete with magnet for removal of ferrous particles:
- Connections to piping: 3/4 F - F
- Finish: Chrome-plated
- Removable cartridge and magnet
- Drain cock
- Patent pending
Overview:
- The COMPACTFAR defangator is a device specially designed and engineered for installation on domestic boilers. Inside is a filter cartridge that separates from the water the impurities in heating system piping that could cause boiler breakdown and malfunction. At the bottom is a magnetic insert that makes the COMPACTFAR defangator particularly suitable for installation on systems where there is a higher concentration of ferrous particles, scale and debris due to corrosion. Sediment is deposited at the bottom of the chamber and then removed by opening a drain valve.
There are no reviews
Data sheet
- Type: Hydraulic and Dirt Separators, Filters
- Connection: F/F
- Hoses: 3/4
