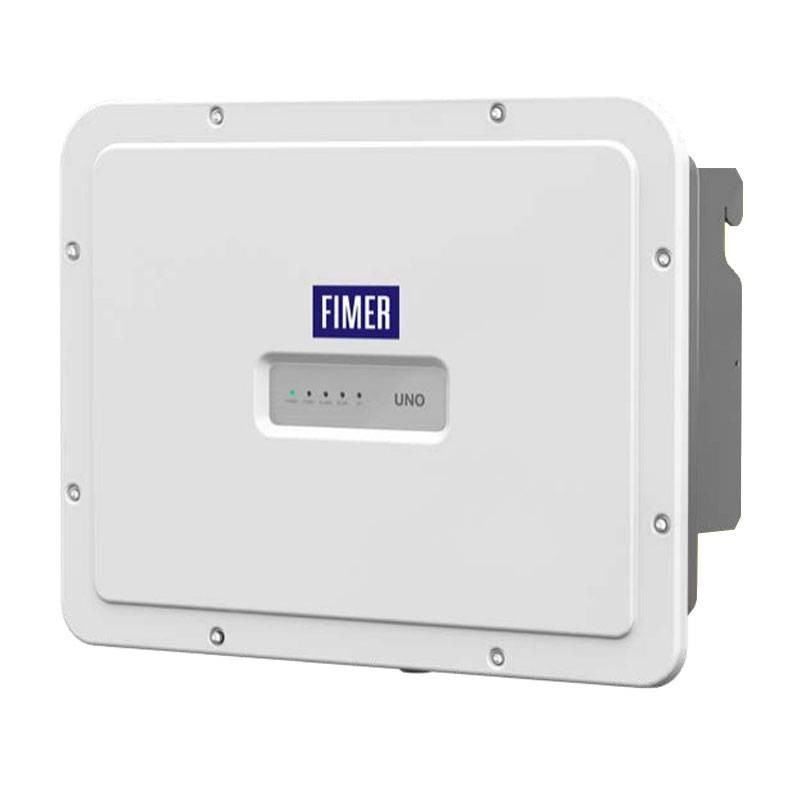

Fimer Photovoltaic Inverter 6.0KW Single Phase 2MPPT Disconnector 3P31990S100A

Brand: Fimer

Cod: 06R 3P31990S100A EAN: 8054529635320

Fimer photovoltaic inverter model UNO-DM-6.0-TL-PLUS-SB-G-QU:

Rated AC output power 6.0KW
Rated AC output voltage 230V
Connection: single-phase
Number of independent MPPTs 2 MPPTs
DC disconnect version
Integrated communication interface Wireless
Integrated communication protocol ModBus TCP (SunSpec)
Commissioning Web User Interface, Display, Aurora Manger Lite
Monitoring Plant Portfolio Manager, Plant Viewer, Plant Viewer for Mobile, Energy Viewer

Data sheet Fimer 3P31990S100A

Fimer Photovoltaic Inverter 6.0KW Single Phase 2MPPT Disconnector 3P31990S100A

€1,376.34 Tax included

€1,376.34

Fimer Photovoltaic Inverter 6.0KW Single Phase 2MPPT Disconnector 3P31990S100A

€1,376.34
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Out of stock

Altre disponibilità dal produttore

Incoming

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

The UNO-DM-6.0-TL-PLUS-Q single-phase inverter is the latest evolution of FIMER's UNO technology and is an optimal solution for residential installations.

The new inverter encapsulates all of FIMER's quality in a lightweight and compact design thanks to technology choices optimized for each type of installation. The inverter achieves high performance with the smallest footprint and is equipped with dual MPPT.

Advantages:

Wireless access to the built-in user interface
Simplified commissioning procedure
State-of-the-art design with native wireless connectivity for easy integration into smart buildings and smart grids
Dynamic grid feed-in control (e.g. zero feed-in)
Remote firmware upgrade for linverter and its components
Native Modbus SunSpec (TCP/RTU) communication protocol
Remote monitoring via Aurora Vision cloud

Features:

Input:

Maximum absolute input DC voltage (Vmax,abs) 600 V
Input DC trigger voltage (Vstart) 200 V (adj. 120...350 V)
Input DC voltage operating range (Vdcmin...Vdcmax) 0.7 x Vstart...580 V (min 90 V)
Rated DC input voltage (Vdcr) 360 V
Rated DC input power (Pdcr) 6200
Number of independent MPPTs 2
Maximum DC input power for each MPPT (PMPPTmax) 4000W (MPPT1), 3500W (MPPT2)
MPPT range of DC voltage (VMPPTmin ... VMPPTmax) at Pacr 200480V
DC power limitation with parallel MPPT configuration Derating from max to zero Max to 500W
480V?VMPPT?580V
DC power limitation for each MPPT with configuration of independent MPPTs at Pacr, example of maximum unbalance 4000 W
200V?VMPPT?480V other channel: Pdcr-4000W (195V?VMPPT?480V) or 3500 W (305V?VMPPT?480) in case of no power in the first channel
Maximum DC input current (Idcmax) / per MPPT (IMPPTmax) 31.5 A /20-11.5 A 2)
Maximum input short-circuit current for each MPPT 25.0 A
Number of DC input connection pairs 2 on the first channel, 1 on the second channel
DC connection type Quick plug-in PV connector

Output:

AC connection type to grid Single-phase
Rated AC power output (Pacr@cos?=1 ) 6000 W
Maximum AC power output (Pacmax @cos?=1) 6000 W
Maximum apparent power (Smax) 6650 VA
Rated AC output voltage (Vac,r) 230 V
Output AC voltage range 180...264 V 2)
Maximum AC output current (Iac,max) 30.0 A
Contribution to short circuit current 40.0 A
Rated output frequency (fr) 50 Hz / 60 Hz
Output frequency range (fmin...fmax) 47...53 Hz / 5763 Hz 3)
Rated power factor and adjustability range > 0.995, adj. ± 0.8 (inductive / capacitive)
Total current harmonic distortion < 3%
Type of AC connections Female panel-mounted connector

Input protections:

Reverse polarity protection Yes, current limited source.
Input overvoltage protection - varistor Yes
Insulation control In accordance with local regulations
DC disconnect characteristics (DC disconnect version) 32A / 600 V

Output protection:

Anti-islanding protection In accordance with local standard
Maximum external AC overcurrent protection 40.0 A
Output overvoltage protection - varistor 2 (L - N / L - PE)

Operating performance:

Maximum efficiency (?max) 97.40%
Weighted efficiency (EURO/CEC) 97.0% / -
Power supply threshold 8 W
Nighttime consumption <0.4 W

Environmental:

Ambient temperature -25...+60°C (-13...+ 140°F) with derating above 45°C/113°F
Relative humidity 0...100% with condensation
Maximum operating altitude without derating 2000 m / 6560 f

Physical:

IP65 environmental protection rating
Cooling system Natural
Dimensions (H x W x D) 418 mm x 553 mm x 180 mm
Weight 20.5 kg
Mounting system Wall brackets

Safety:

Isolation level No transformer
Certifications CE (50 Hz only), RCM
EMC and safety standards EN 50178, IEC/EN 62109-1, IEC/EN 62109-2, AS/NZS 3100, EN 61000-6-1, EN 61000- 6-3, EN 61000-3-11, EN 61000-3-12
Grid connection standards (check availability through sales channel) IEC 0-21, DIN V VDE V 0126-1-1, ITC-BT-40, AS 4777, INMETRO Ordinances 357-2014.
