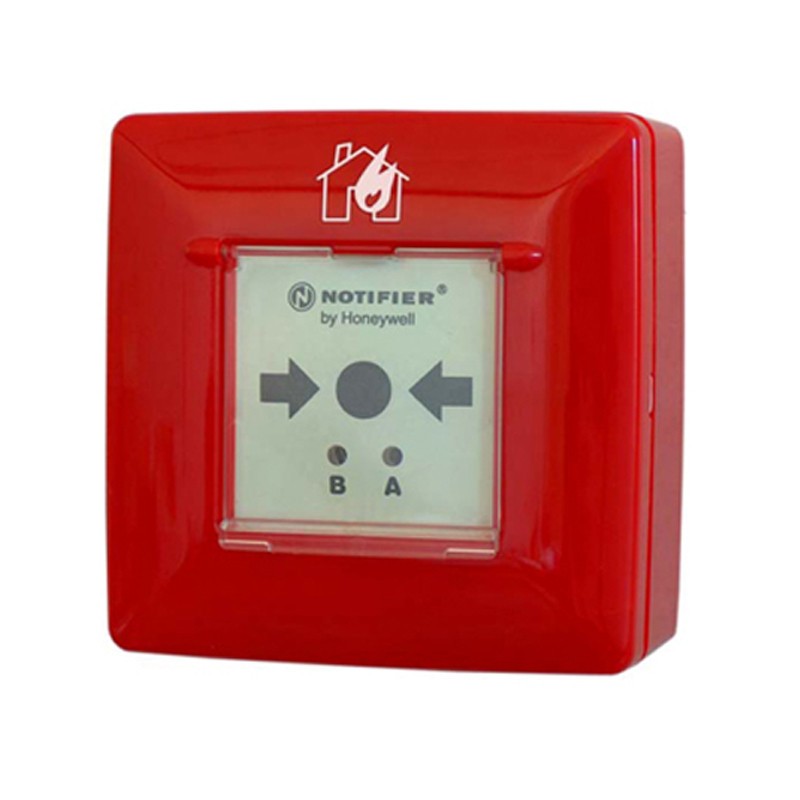

Notifier manual glass-break fire button P700
NOT P700
9000002621075
Analogue Notifier glass-break fire button with two isolators, with the following characteristics:
- Operating voltage: 15÷32Vdc
- Operating voltage: 24Vdc
- Absorption at rest without communication @ 24Vdc: 390µA
- Absorption with response every 5sec and LED enabled @ 24Vdc: 560µA
- Absorption with response every 5sec and isolator disabled @ 24Vdc: 590µA
- Response time per isolator after short-circuit: 300µsec
- Recovery time taken off short-circuit: 150µsec
- Degree of protection: IP44
- Operating temperature: -0°/+50°C
- Relative humidity: 10% - 93% (without condensation)

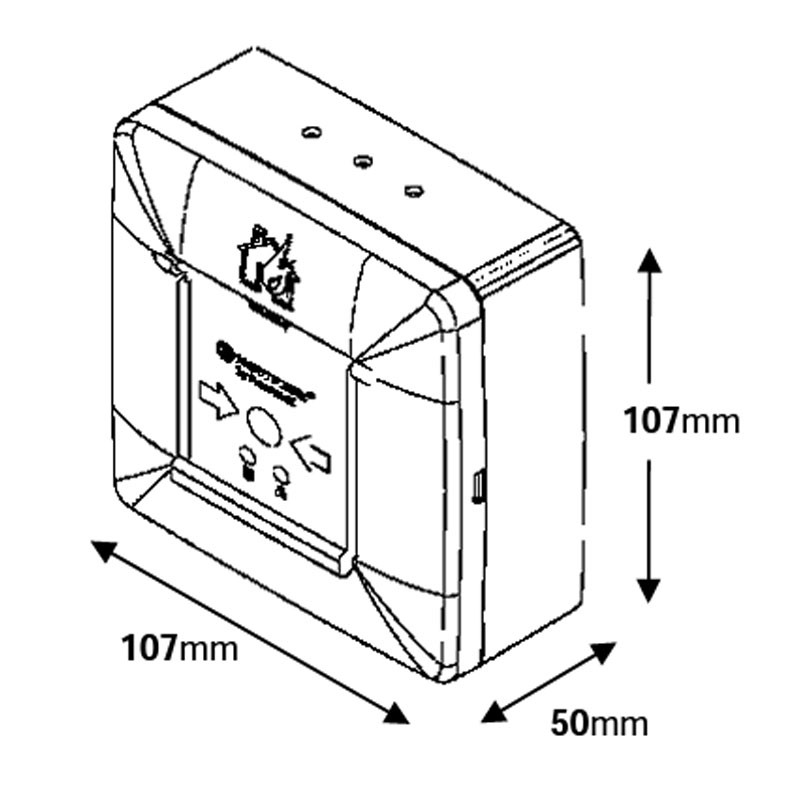

- Weight: 146 grams (with bottom 213 grams)
- Number of buttons for each line: 99 max
- Color: red
Notifier manual glass-break fire button P700
€67.26
Tax included
€67.26
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 77
Pay in installments with Klarna
It is designed to be used as a manual alarm station in a fire detection system.
Equipped with rotary-switch for addressing and dipswitch for bypassing the double isolator.
Compatible with all Notifier analog control panels, it is equipped with rotary-switch for addressing on the communication loop and dual isolators, one input and one output that can be excluded by dip-switch.
Advantages:
- Easy operation
- Addressing via rotary-switch
- Double LED-color status indicator; through this indicator you can monitor the different states of the switch
- Plug-in terminal block that facilitates wiring
- Breaking glass provided with protective film
- Coloring of the protective film of the phosphorescent slide
- Possibility of wall mounting or recessed mounting in type B503 enclosures
- Simple test operation by inserting the appropriate key
Applications: Can be used for commercial, industrial and residential applications. It is used as a manual intervention station in case of fire. It is generally installed outside doors so that it can be used in case of evacuation from the premises.
Installations: A plastic box, included, suitable for wall installation is used for mounting. It is also suitable for mounting in flush-mounted boxes type Bticino B503. The package includes the appropriate screws for mounting to the flush-mounted box. Wiring of the button is easy thanks to the use of plug-in terminals.
There are no reviews
Data sheet
- Type: Buttons
