Valsir Pexal female thread D 20 mm connection 1/2 VS0171117
VAL VS0171117
8023857342019

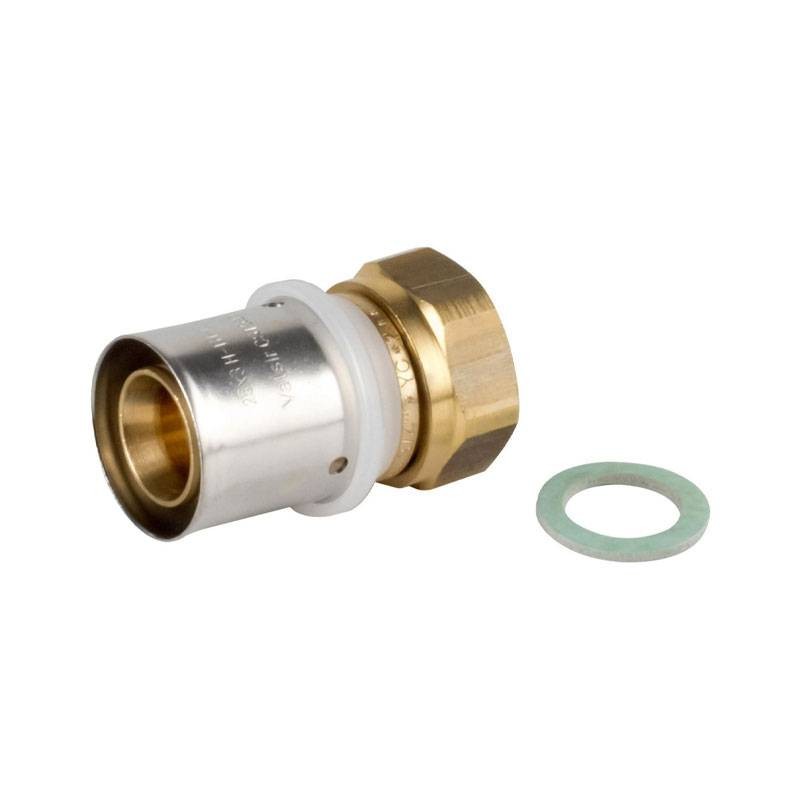

Valsir Pexal female straight swivel thread with flat bottom with the following characteristics:
- Diameter: 2x20 mm
- Connection: 1/2 Flat seat and swivel

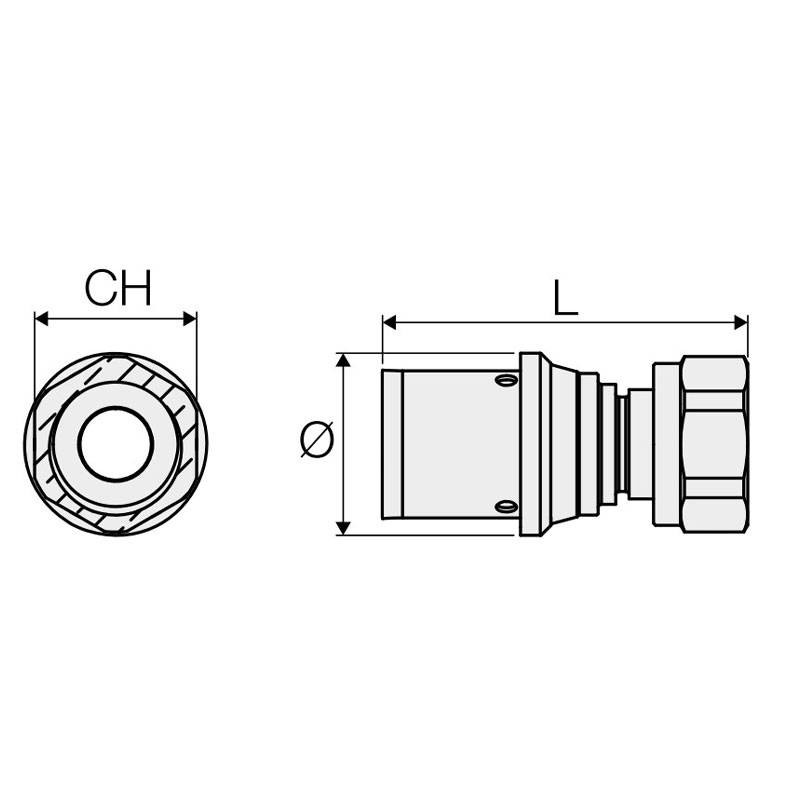

- Dimensions: 46x27x24 (L-Ø-CH)
Pexal is the press fitting system made with brass alloy body and stainless steel press ring suitable for many applications: hot and cold drinking water distribution systems, heating systems and even industrial systems.
Valsir Pexal female thread D 20 mm connection 1/2 VS0171117
€7.85
Tax included
€7.85
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
Pay in installments with Klarna
Pexal press fittings are made of brass alloy, and the fixed ferrule is made of stainless steel with a ring made of transparent polymer material. They are suitable for many applications: hot and cold potable water distribution, heating systems up to industrial systems.
The fittings have a stop ring made of transparent polymeric material that isolates the aluminum and brass of the fitting increasing the insertion length on the tip allowing better control.
Advantages:
- Double O-ring for guaranteed sealing
- Made of special corrosion-resistant brass alloy
- Ring mounted on the fitting AISI 304 stainless steel with drilling for inspection
- Possibility to use the product in sanitary installation, heating installation and cooling installation
- Leakage detection during commissioning system testing in case of no crimping on diameters from 16 to 32 mm (for pressure included between 0.5 and 2 bar)
- ACS certificate, for the transport of potable water
There are no reviews
Data sheet
- Type: Water Press Fittings
- Connection: F
- Model: Straight
- Hoses: 1/2
