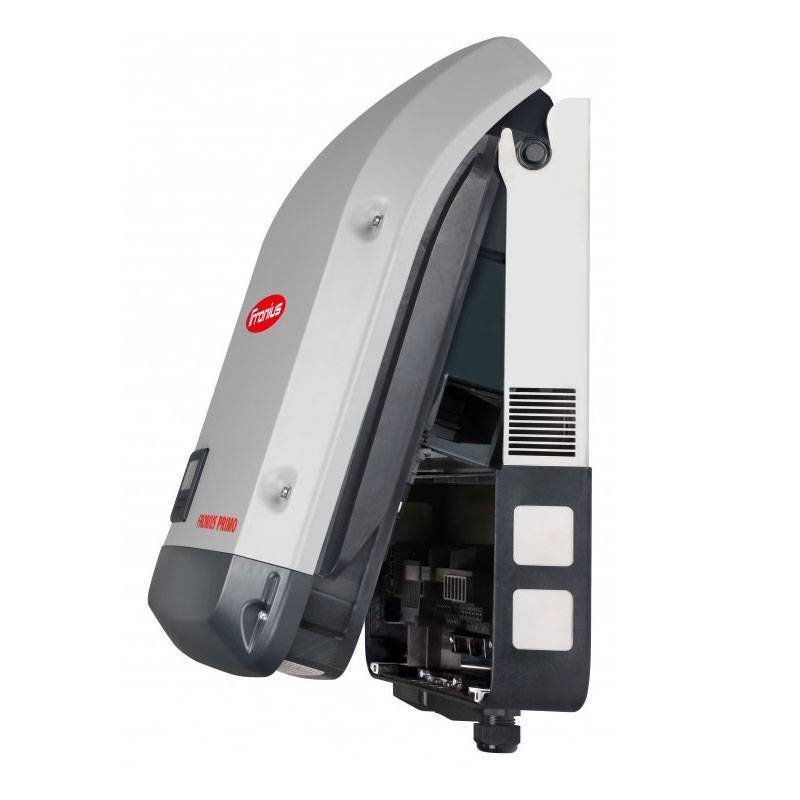

Fronius SYMO LIGHT 12.5KW Three-phase 2MPPT IP65 Photovoltaic Inverter 4.210.051.001

Fronius
Fronius
FRO 4.210.051.001 9007947119742

Fronius SYMO LIGHT Photovoltaic Inverter:

  • Rated AC power 12.5KW
  • DC input voltage range 200 - 1000V three-phase
  • Number of MPP trackers 2
  • Degree of protection IP65
  • USB (type A connector) Datalogging, inverter update by USB flash drive
  • 2 RS422 (RJ45 connector)
  • Signal output Energy management (potential-free relay output)
  • External input Connection to S0 meter/overvoltage protection analysis

Request info about this product

Fronius SYMO LIGHT 12.5KW Three-phase 2MPPT IP65 Photovoltaic Inverter 4.210.051.001

€2,507.68 Tax included
€2,507.68

Fronius SYMO LIGHT 12.5KW Three-phase 2MPPT IP65 Photovoltaic Inverter 4.210.051.001

€2,507.68
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Out of stock
Altre disponibilità dal produttore
Incoming
qty

Fronius SYMO LIGHT 12.5KW Three-phase 2MPPT IP65 Photovoltaic Inverter 4.210.051.001

€2,507.68

klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Characteristics:

INPUT DATA:

  • Number of MPP trackers 2
  • Max. input current (Idc max) 27.0 / 16.5 A
  • Max. short-circuit current range of solar modules 40.5 / 24.8 A
  • DC input voltage range (Udc min - Udc max) 200 - 1000 V
  • Supply start voltage (Udc start) 200 V
  • Nominal input voltage (Udc,r) 600 V
  • MPP voltage range (Umpp min - Umpp max) 320 - 800 V
  • Usable MPP voltage range 200 - 800 V
  • Number of DC connections 3 + 3
  • Max. output power of PV generator (Pdc max) 18.8 kWpeak

OUTPUT DATA:

  • Nominal AC power (Pac,r) 12.5 kW
  • Max. output power (Pac max) 12.5 kVA
  • AC output current. (Iac nom) 18 A
  • Grid connection (Uac,r) 3~ NPE 400/230, 3~ NPE 380/220 V
  • AC voltage range (Umin - Umax) 150 - 280 V
  • Frequency (fr) 50 / 60 Hz
  • Frequency range (fmin - fmax) 45 - 65 Hz
  • Distortion factor 2.0 %
  • Power factor (cos ?ac,r) 0 - 1 ind,/cap

GENERAL DATA:

  • Weight 34.8 kg
  • Dimensions/width 510 mm
  • Dimensions (height) 725 mm
  • Dimensions (depth) 225 mm
  • Protection class IP 66
  • Safety class 1
  • Overvoltage category (DC/AC) 2 / 3
  • Nighttime consumption < 1 W
  • Inverter design Transformerless
  • Cooling Regulated ventilation
  • Mounting Indoor and outdoor
  • Ambient temperature range -40°C - +60°C
  • Allowable air humidity 0 - 100 %
  • Max. height above sea level 2,000 m / 3,400 m
  • DC connection technology 6 DC+ screw terminals and 6 DC- screw terminals 2.5-16 mm²
  • AC connection technology 5-pole AC screw terminals 2.5-16 mm²
  • Certifications and regulatory compliance ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, IEC 0-16, IEC 0-21, NRS 097

EFFICIENCY GRADE:

  • Max. efficiency degree (PV - power grid) 98 %.
  • European (?EU) efficiency degree 97.6 %
  • with 5% Pac,r 88.7 / 93.1 / 90.1 %
  • with 10% Pac,r 92.9 / 96.1 / 94.6 %
  • with 20% Pac,r 95.4 / 97.3 / 96.6 %
  • with 25% Pac,r 95.6 / 97.6 / 97.0 %
  • with 30% Pac,r 95.9 / 97.7 / 97.2 %
  • with 50% Pac,r 96.4 / 98.0 / 97.5 %
  • with 75% Pac,r 96.5 / 98.0 / 97.6 %
  • with 100% Pac,r 96.5 / 97.8 / 97.6 %
  • MPP adaptation efficiency grade > 99.9 %

PROTECTION DEVICES:

  • DC insulation measurement
  • Overload behavior Working point shifting, power limitation
  • DC disconnect switch
  • DC Reverse polarity protection

There are no reviews

Data sheet

Type:
Inverter
Power:
11 to 15KW
MPPT:
2
Connection:
Three-phase
