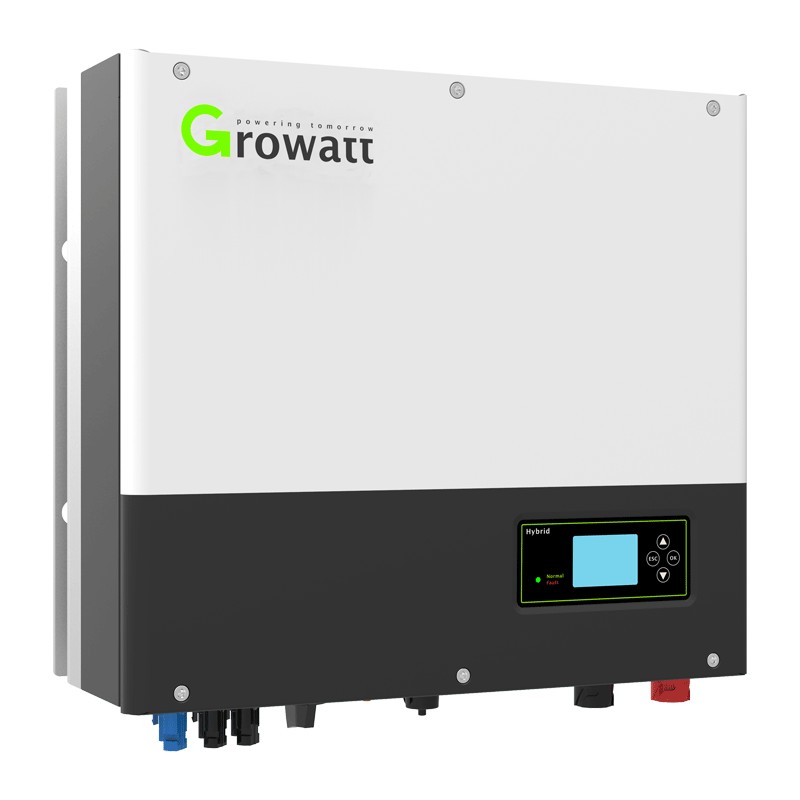

Growatt 10KW 2MPPT Three Phase Hybrid Photovoltaic Inverter GWSPH10000TL3BHU
GRW GWSPH10000TL3BHU
9000009921710
Growatt SPH TL3 BH-UP Hybrid Photovoltaic Inverter:
- Rated AC output power 10KW
- Number of independent MPP trackers 2MPPT
- Rated AC voltage (range) Three-phase 230V/400V (310-476V)
- RS485/CAN/USB Interfaces.
Three-phase all-in-one hybrid inverter ideal for residential and commercial systems. Extraordinary IP65 protection level; EPS output can even provide backup in the absence of grid.
Accessory for WIFI connection Shine WI-Fi module (SHINEWIFIX) to be purchased separately.
Growatt 10KW 2MPPT Three Phase Hybrid Photovoltaic Inverter GWSPH10000TL3BHU
€3,308.46
Tax included
€3,308.46
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Frequently bought together
Three-phase all-in-one hybridinverter ideal for residential and commercial systems. Extraordinary IP65 level of protection, more durable and flexible for installation; multiple and programmable working modes, decide for yourself how to realize self-sufficiency and make the most of the system; EPS output can even provide backup in the absence of grid; comprehensive accessories including battery, energy flow meter and optional datalogger for various system solutions.
Advantages:
- 100% three-phase unbalance
- Export Limitation on power per single phase
- Wide range of battery voltage (100-550V)
- Back-UP function, 10ms switching time
- Scalable plant configuration
- VPP ready interface
- DC/AC Type II Dischargers
- 1.5 the DC/AC power ratio
Features:
Input parameters (DC):
- Maximum recommended PV power (per STC module) 15000W
- Maximum DC voltage 1000
- Activation voltage (V start) 120V
- MPPT voltage range 120V-1000V / 600V
- Number of independent MPP trackers 2
- Strings for MPP trackers 1
- Maximum current per MPP 13.5A
- Maximum dc current for MPP 16.9A
Output parameters (AC):
- Rated AC output power 10000W
- Maximum AC apparent power 10000VA
- Nominal AC voltage (range) 230V/400V (310-476V)
- AC mains frequency range 50/60Hz (45/55/65Hz)
- Maximum output current 15.2A
- Adjustable power factors 0.8 in advance...0.8 in delay
- Total harmonic distortion THDI <3%
- Mains type Ac 3W+N+PE
Battery Data:
- Battery voltage range 100-550V
- Max charge and discharge current 25A
- Continuous charging and discharging power 10000W
- Battery Type Lithium
AC output power (Backup):
- Max output power 10000W
- Maximum apparent AC power 10000W
- Maximum output current 15.2A
- Rated voltage AC 230/400V
- AC mains frequency range 50/60Hz
- Total harmonic distortion THDi <3%
- Switching time <10ms
Conversion efficiency:
- Maximum Efficiency 98.2%
- Euro Efficiency 97.5%
Safety devices:
- DC reverse polarity protection
- Battery reverse protection
- AC short-circuit protection Type 2
- Ground fault detection device
- Islanding protection
- DC disconnect switch
- Network monitoring device
- DC/AC overvoltage protection
- Leakage current monitoring unit
- Insulation resistance monitoring
General data:
- Dimensions (W / H / D) 505/453/198mm
- Weight 30kg
- Operating temperature range -25°C/+60°C
- Power consumption: night mode <13W
- Topology Transformerless
- Cooling system Natural
- Environmental protection rating IP65
- Relative humidity 0-100%
- Altitude 3000 meters
- DC H4/MC4 connection (optional not integrated)
- AC Connection Connector
- LCD+LED display
- RS485/CAN/USB interfaces integrated
- RF/WIFI/GPRS monitoring optional not integrated
- Warranty 10 years
- Certificates: CE, IEC62109, IEC 62040, VDE-AR-N 4105, VDE 0126, UTE C 15-712, C10/C11?EN50549, CEI 0-21, CEI 0-16, IEC62116, IEC61727, AS/NZS 4777 , G98, TOR Erzeuger
There are no reviews
Data sheet
- Type: Inverter
- Power: 6 to 10KW
- Model: Hybrids
- MPPT: 2
- Connection: Three-phase
