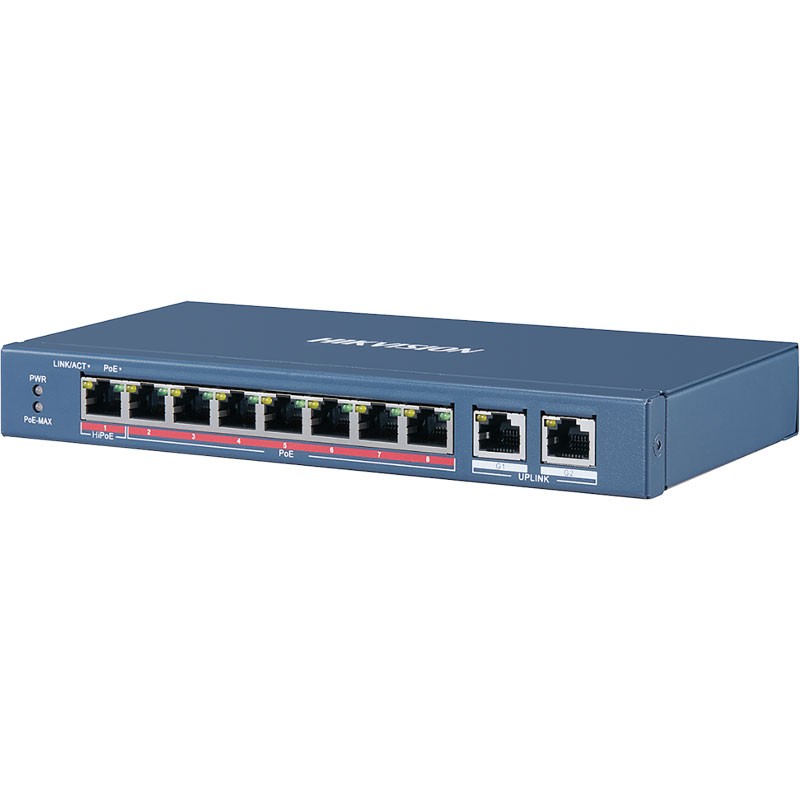

Switch Hikvision 8 Ports POE+2UPLINK 10/100 110W 301801346
HIK 301801346
6954273693350
Hikvision Switch 8 Ports POE+2UPLINK Fast Ethernet 10/100 110W:
- Intelligent PoE management
- Long-range PoE transmission up to 300 m
- IEEE 802.3bt Hi-PoE standard, max. 90 W for one port
- Adaptive 4/8 core power supply with less power loss
- 6KV surge protection for improved reliability in harsh environments
Article includes cable and power supply.
Switch Hikvision 8 Ports POE+2UPLINK 10/100 110W 301801346
€112.73
Tax included
€112.73
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 13
Features:
- Port Number 1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE Ports and 2 × RJ45 Gigabit ports
- Port type RJ45 port, full duplex, adaptive MDI/MDI-X
- Working Mode Standard Mode (default); Extended Mode
- Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IEEE 802.3z
- Forwarding Mode Store and forward switching
- Long Distance Transmission Ports: Ports 1 through 8
- 16K MAC Address Table
- Internal Cache 4 Mbit
- Switching Capacity 5.6 Gbps
- Packet Forwarding Rate 4.166 Mpp
- PoE Standards Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt - Ports 2 to 8: IEEE 802.3af, IEEE 802.3at - PoE Power Pin
- End Range: 1/2(-), 3/6(+)
- Intermediate Range: 4/5(+), 7/8(-)
- 8-Pin Power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Ports 1 to 8
- Maximum port Power Port 1: 90 W
- Ports 2 to 8: 30 W
- PoE Power Budget 110 W
- Long Range Ports 1 to 8: Up to 300m; and the port speed is 10Mbps
- Dimensions (W × H × D) 217.6 mm × 27.8 mm × 103.35 mm (8.6" × 1.1" × 4.1")
- Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
- Storage Humidity 5% to 95% (non-condensing)
- Gross Weight 1.22 kg (2.69 lbs)
- Net Weight 0.55 kg (1.21 lbs)
- Idle Power Consumption 10 W
- Shell Metal material, fanless design
- Operating Temperature -10°C to 55°C (14°F to 131°F)
- Operating Humidity 5% to 95% (non-condensing) Power Supply
- Power Supply 48 V DC, 2.5 A
- Maximum Power Consumption 120 W.
There are no reviews
Data sheet
- Type:
- PoE Network Switches
- System:
- IP
- Doors:
- Eight
