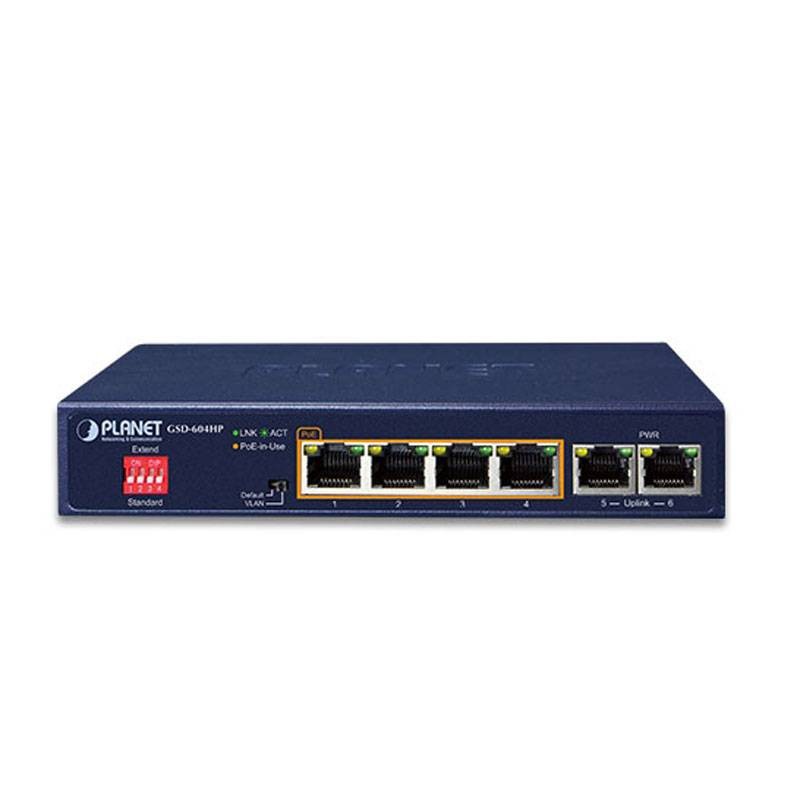

4Power Switch 4 Ports 10/100/1000T 802.3at PoE + 2 10/100/1000T GSD-604HP
4PW GSD-604HP
4711605281546
4Power desktop 4-port 10/100/1000T 802.3at PoE switch + 2 10/100/1000T ports with the following features:
- 6 RJ45 10/100/1000BASE-T ports with 4-port IEEE 802.3af/at injector function.
- Compliant with IEEE 802.3af/at Power over Ethernet PSE end-span
- Up to 4 ports of IEEE 802.3af/802.3at powered devices
- Supports PoE power up to 30 watts per PoE port
- Each port supports 54 VDC power supply for the PoE-powered device
- 65-watt PoE budget
- Automatically detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power up to 100 m in standard mode and 250 m in extended mode
- Based on 10/100/1000Mbps hardware, automatic negotiation and automatic MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address lookup engine, supporting 4K absolute MAC addresses
- Automatic address learning and address aging
- Supports port-based VLAN
- LED indicators for PoE ready/active and LINK/ACT

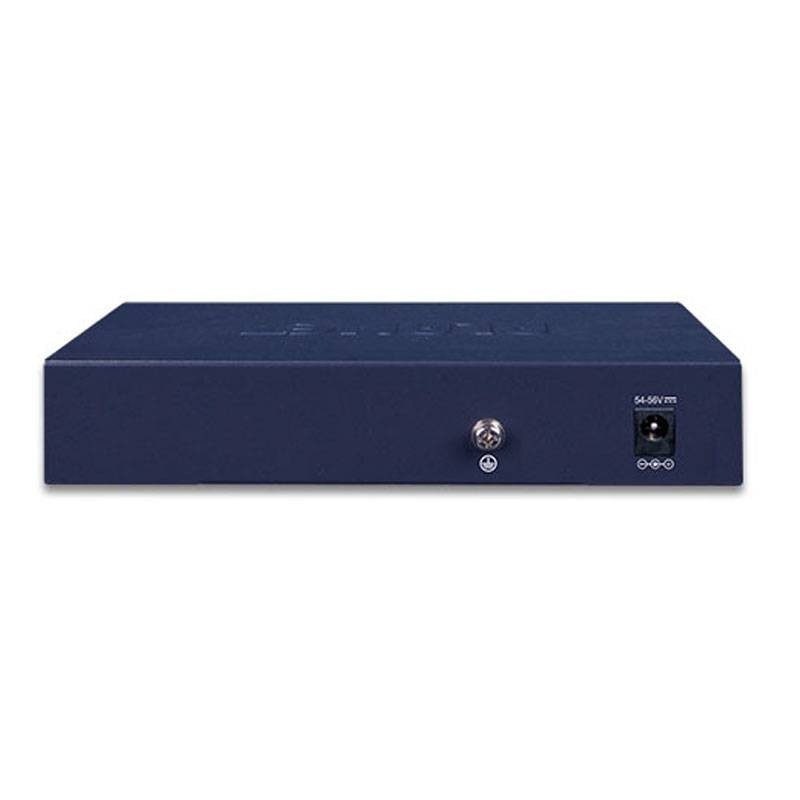

- One 54 VDC power jack
- Fanless design
4Power Switch 4 Ports 10/100/1000T 802.3at PoE + 2 10/100/1000T GSD-604HP
€112.65
Tax included
€112.65
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
PLANET's new GSD-604HP provides four 802.3at PoE+ ports to meet small-scale IP surveillance or home networks at a lower total cost. With dual 10/100/1000BASE-T uplink ports, the HD video streams recorded by the 4 PoE IP cameras can be fed from the GSD-604HP and saved to 4-channel NVR systems or surveillance software to perform complete security monitoring and management the surveillance system in the LAN or remote site via the Internet.
The advanced features of the GSD-604HP are as follows:
- Four PoE+ ports with a total budget of 65 watts.
- Two 10/100/1000Mbps uplink ports
- Port-based VLAN
- Compact size, fanless design
- Extended mode
The GSD-604HP features " port-based VLAN" whose ports can be isolated from each other via a DIP switch. This can help prevent the IP camera's multicast or broadcast storm from affecting each other, thus fully meeting the requirements of IP surveillance systems and Ethernet designs.
In the Extended mode of operation, the GSD-604HP operates on a per-port basis with 10 Mbps duplex operation, but can support a 20-watt PoE power output over a distance of up to 250 meters, exceeding the 100 m limit on UTP Ethernet cable. With this brand new feature, the GSD-604HP provides an additional solution for 802.3at/af PoE distance extension, saving the cost of Ethernet cable installation. Its VLAN isolation feature isolates ports so as to prevent broadcast storm and defend DHCP spoofing in extended operation mode.
The GSD-604HP features a compact metal housing the size of a desktop, making it convenient to place the unit. It features a ventilated design in which a cooling fan is not required, making its operation quiet. In addition, the GSD-604HP can operate reliably and stably in any environment without compromising performance. PoE PD implementation with constant power supply can be performed easily and quickly.
Aimed at increasingly popular IP surveillance applications, the GSD-604HP PoE+ switch is also positioned as a surveillance switch for quick and easy deployment of PoE IP cameras with power . The GSD-604HP supports 802.3at and 802.3af PoE standards along with 4 10/100/1000BASE-T ports with up to 30 watts per RJ45 copper interface and 2 additional Gigabit Ethernet TP interfaces that support high-speed transmission of surveillance images and video.
The GSD-604HP provides four 802.3at/af PoE ports to meet small-scale SOHO and home IP surveillance networks at a lower total cost. The GSD-604HP features a high-performance switch architecture and a PoE power budget of 65 watts. Video files recorded by the 4 PoE IP cameras can be fed from the GSD-604HP and saved to the 4-channel NVR system or using surveillance software to perform comprehensive security monitoring.
For example, a GSD-604HP can be combined with a 4-channel NVR; that is, each of its PoE ports can be connected to a specific 802.3af/at PoE IP camera to enable administrators to centrally and efficiently manage the surveillance system at a single site. The GSD-604HP also provides a Gigabit Ethernet TP interface for uplink to NVR systems or public server groups.
To further expand office premises, the additional telephones needed could be installed at a lower cost via the PoE IP telephony system, which is better than the traditional circuit-wired telephony system. The GSD-604HP PoE+ switch helps businesses create an integrated data, voice and power network. IEEE 802.3af/at compliant IP telephones can be installed without the need for an additional power cable because power can be supplied via the standard Ethernet cable from the connected GSD-604HP. With the GSD-604HP, the deployment of IP telephony becomes more reliable and cost-effective, thus helping companies save huge costs when upgrading from traditional telephony system to IP telephony communication infrastructure.
Features:
- Power requirements: 54V DC, 1.3A
- ESD protection: 6KV DC
- Power consumption: Maximum 66.69 watts, 227.5 BTUs
- PoE power output: Per port 54 V DC, 300 mA. max. 15.4 watts (IEEE 802.3af)
- PoE power output: Per port 54 V DC, 600 mA. max. 30 watts (IEEE 802.3at)
- PoE power budget: 65 watts
- Operating environment: 0 - +50 degrees
- Storage environment: -10 - +70 degrees
- Operating humidity: 5 - 95%, relative humidity, non-condensing
- Storage humidity: 5 - 95%, relative humidity, non-condensing
- Dimensions: 168 x 93 x 32 mm (W x D x H)
- Weight: 374 grams
There are no reviews
Data sheet
- Type: PoE Network Switches
- Doors: 4
