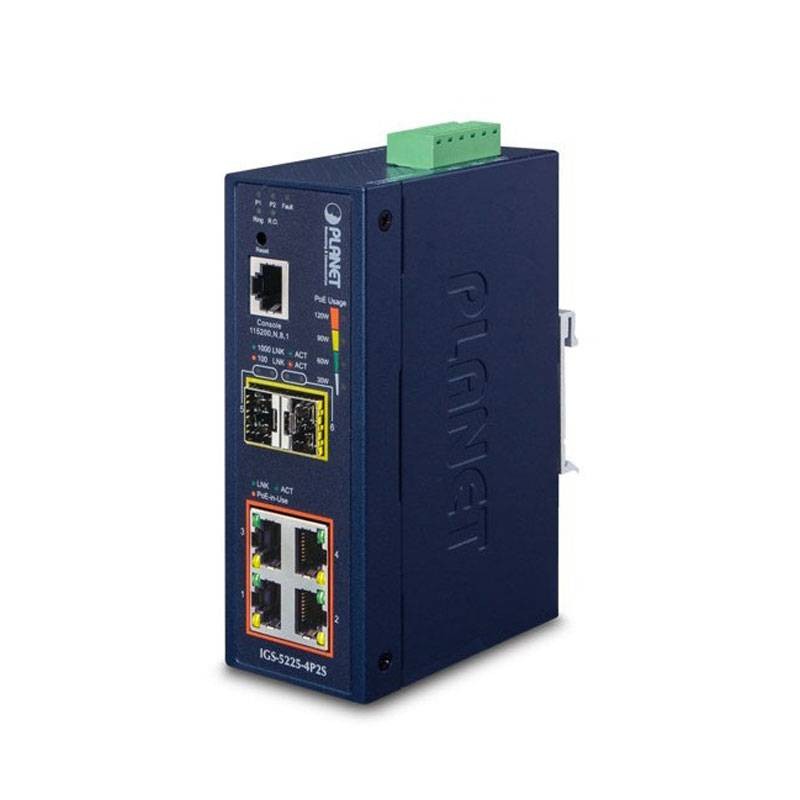

4 Port 10/100/1000T 802.3at PoE Ethernet Switch + 2 Port 100/1000X SFP IGS52254P2S

Brand: 4power

Cod: 4PW IGS52254P2S EAN: 4711605283892

4 Power Switch with the following features:

Copper ports: 4 10/100/1000BASE RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC slots: 2 SFP 1000BASE-SX/LX/BX interfaces (Port-5 to Port-6)
Compatible with SFP 100BASE-FX
PoE injector port: 4 ports with 802.3at/af PoE injector function with Port-1 to Port-8
Console: 1 serial port RJ45 to RS232 (115200, 8, N, 1)
Power Requirements: Dual 48~56V DC (>51V DC for PoE+ output recommended)
IEEE 802.3af Standard PoE power output: Per port 48 V~51 V DC (depending on power supply), max. 15.4 watts
Power output IEEE 802.3at Standard: Per port 51 V~56 V DC (depending on power supply), max. 36 watts
Power supply pin assignment 1/2(+), 3/6(-)
PoE Power Budget: Dual power supply: 144 W maximum (depending on power supply)

Request info about this product

4 Port 10/100/1000T 802.3at PoE Ethernet Switch + 2 Port 100/1000X SFP IGS52254P2S

€542.85 Tax included

€542.85

4 Port 10/100/1000T 802.3at PoE Ethernet Switch + 2 Port 100/1000X SFP IGS52254P2S

€542.85
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 1

Altre disponibilità dal produttore

Two-year warranty

Secure Payment

Easy return within 14 days

Purchase with tax breaks

Description

Features:

Fabric Change: 12 Gbps/non-blocking
Throughput (packet per second): 8.928Mpps@ 64-byte packet
Address table: 8,000 entries, automatic learning and aging of source address
Shared data buffers: 4 Mbit
Flow control: IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Giant frame: 9 Kbytes
Reset button: <5 sec: system restart - >5 sec: factory setting
ESD protection: 6KV DC
Enclosure: IP40 metal housing
Installation: DIN rail and wall mounting kit
Connector: 6-pin removable terminal block for power input
Alarm: One relay output for power failure. Alarm relay current rating: 1 A at 24 VDC
Basic management interfaces: Console; Telnet; Network browsing program; SNMP v1, v2c
Secure management interfaces: SSH, SSL, SNMP v3
Port configuration: Disable/enable port
Flow control disable/enable
Power-saving mode control
Port mirroring: TX/RX/both
IEEE 802.1Q tag-based VLAN, up to 255 VLAN groups
IEEE 802.1ad Q-in-Q tunneling
Edge private VLAN (PVE)
MAC-based VLAN Protocol-based VLAN
MVR (multicast VLAN registration)
Supports 2 line bundles with 2 ports per line bundle
QoS Based on traffic classification, strict priority and 8-level WRR priority for switching: Port Number, 802.1p Priority, 802.1Q VLAN Tag, DSCP/TOS field in IP packet
IGMP snooping: IPv4 IGMP snooping (v1/v2/v3), up to 255 multicast groups
IGMP IPv4 IGMP query mode support
MLD snooping: IPv6 MLD snooping (v1/v2), up to 255 multicast groups
IPv6 MLD query mode support
Access control list: IP-based ACL/ MAC-based ACL
Bandwidth control per port: Input: 500 Kb 1000 - Mbps Output: 500 Kb 1000 Mbps
IP interfaces: Maximum 8 VLAN interfaces
Routing Table: Maximum 32 routing entries
Routing protocols: IPv4 software static routing IPv6 software static routing
Regulatory Compliance: FCC Part 15 Class A, CE
Operating temperature: -40/+75 degrees
Storage temperature: -40/+85 degrees
Humidity: 5 - 95% (non-condensing)
Dimensions: 50 x 87.8 x 135 mm (W x D x H)
Weight: 610 grams
