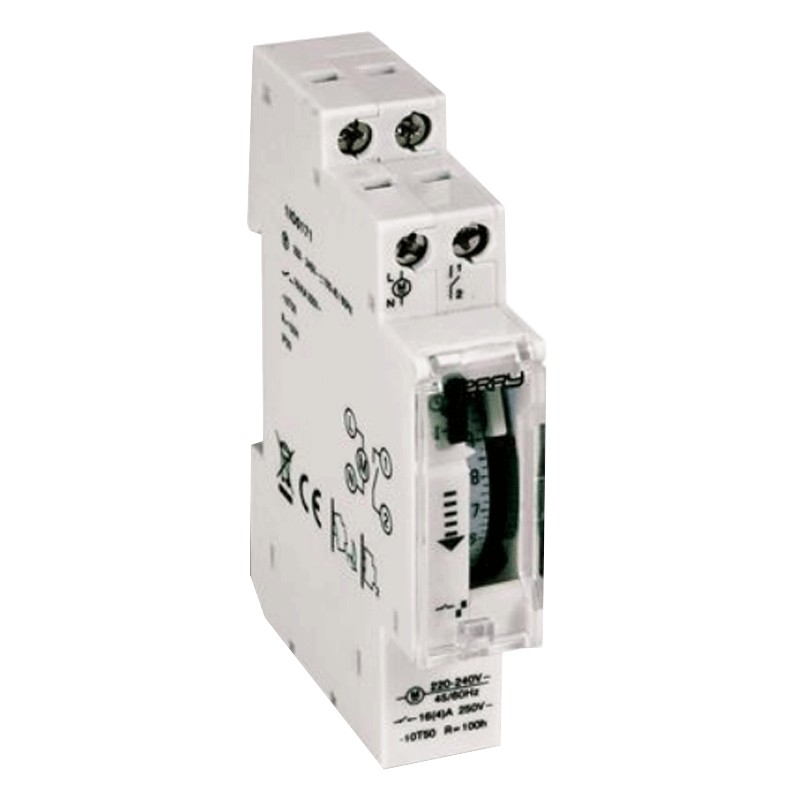

Perry 1 module time switch with riders 1IO0171
PER 1IO0171
8019108031177
Perry time switch with the following characteristics:
- Supply voltage 230V AC 50 - 60Hz
- Contacts rated data 16(2) A / 250V AC
- Max commutable power 3500 VA (for single contact)
- Max. cable cross-section at terminals 2.5 mmq
- 1 module
Perry 1 module time switch with riders 1IO0171
€27.93
Tax included
€27.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 488
: 1
Pay in installments with Klarna
Features:
- Perry Series
- Contact ratings 16(2) A / 250V AC
- Max. number of programs (ON-OFF) 48
- Minimum ON-OFF time 15'.
- Displays mechanical jumper crown
- Max section of cables at terminals 2.5 mmq
- Degree of protection (IP) IP20 - IP30 (with cover) - IP40 (with back panel)
- Output type captive screw terminals
- Insulation class II
- Power reserve max 100 hours
- Type of rechargeable battery reserve NiCd
- Time tolerance + - 1 sec/day
- Operating temperature limits -10°C +50°C
- Storage temperature -10°C +50°C
- DIN rail / wall mounting / back panel installation type
- Thermoplastic casing - grey RAL 7035
- Type civil / tertiary / industrial use
- Controls on board mechanical crown wheel - Selector: timer position / fixed ON
- Clock setting precision mechanical with reference index
- Mechanical key crown programming (15' blocks)
- Dimensions (WxDxH) 17.5 x 60 x 128 mm
Ottimi materiali e puntualità nella consegna
Prodotto eccellente che risponde alle mie necessità
Data sheet
- Type: Switches
- Version: Time
- Model: Daily
- Installation: Din
