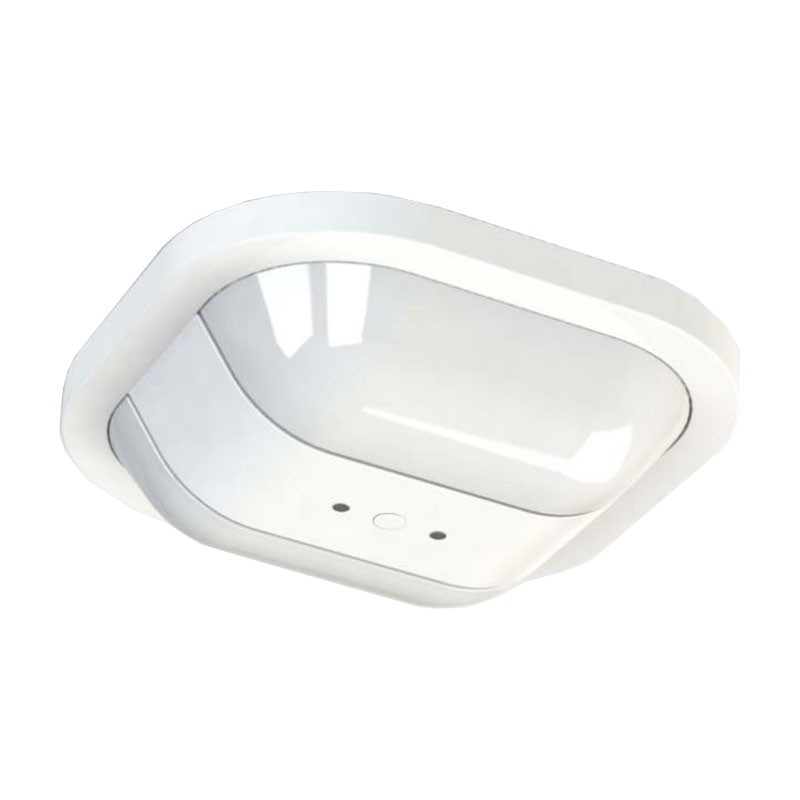

Presence detector Abb Premium 6131/31-24 KNXH0051
ABB KNXH0051
4011395185940
Presence detector Abb Premium 6131/31-24 for ceiling mounting, cover people walking Ø: max. 10 m, max. 12 m and max. 16 m.
Presence detector Abb Premium 6131/31-24 KNXH0051
€295.23
Tax included
€295.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Features:
- Detection range (for mounting height 2.5 m, 3 m and 4 m): circular
- Sitting persons Ø: max. 8 m, max. 10 m and max. 14 m
- With 4 channels
- For dimming/ brightening rules to a defined value in a designated collection area
- HVAC function for controlling heating and/or cooling systems and ventilation systems in the designated collection area
- Detector application with 2 switch-off stages
- Detector application with integrated monitoring function
- Constant light controller with up to two independent channels
- Constant light controller with up to 2 outputs for daylight regulation of two skylights in the room
- Integrated object temperature controller
- 10 freely programmable IR channels (blue and/or white) incl. 5 logic channels (logic doors, doors, delay and staircase lights)
- Evaluation via internal brightness sensor
- Up to 2 external brightness values and the internal brightness sensor can be evaluated
- Programming button can be activated with IR transmitter 6010-25 (-500)
- Suitable for ceilings with a panel thickness from 9 to 25 mm
- Hole size: Ø 68 mm
- Suitable for surface installation
- Cannot be installed in British Standard or VDE flush-mounted boxes
- Programming button can be activated with IR transmitter 6010-25 (-500) With integrated KNX bus coupler.
There are no reviews
Data sheet
- Type: Detectors
- Installation: Ceiling
