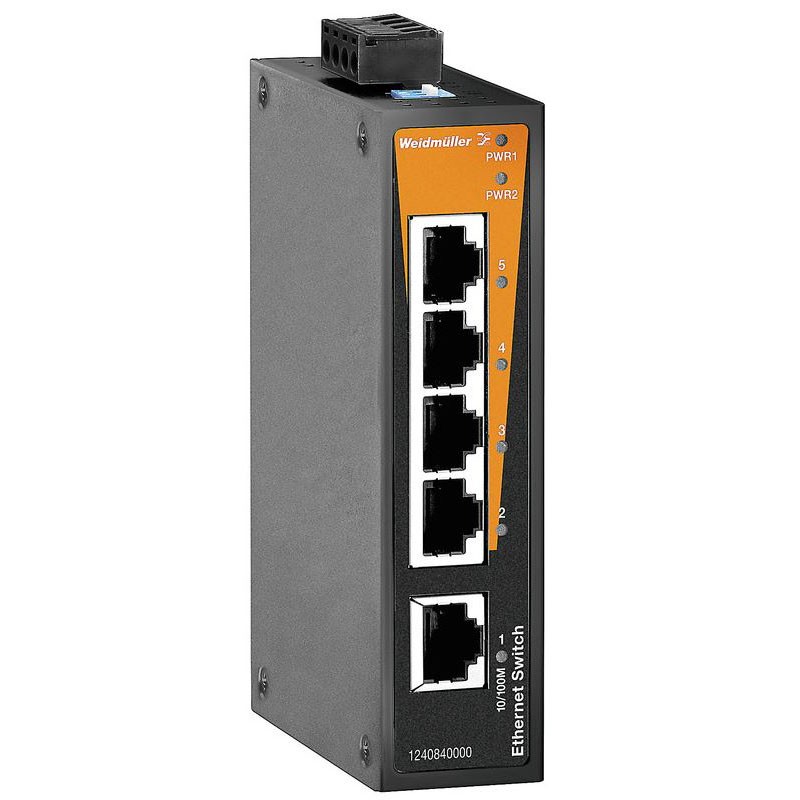

Weidmuller Network Switch 5 ports RJ45 1240840000
WEI 1240840000
4050118028737
Weidmuller network switch 5 ports RJ45.
Weidmuller Network Switch 5 ports RJ45 1240840000
€88.91
Tax included
€88.91
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 9
Pay in installments with Klarna
Interfaces:
1x DIP switch function for enabling/disabling Broadcast Storm protectionLED indicator PWR1, PWR2, 10/100M (TP-Port)Number of ports 5x RJ45Ports 10/100BaseT(X), auto negotiation, Full and half-duplex modes, Auto MDI/MDI-X link.
Features:
- 1 Gbps bandwidth backplane
- Packet buffer size 512 Kbit
- MAC table size 1 K
- Voltage supply 12/24/48 V DC, 2 redundant inputs
- Voltage supply DC voltage type - Voltage, min. 9.6 V - Voltage, max. 60 V
- Current consumption 0.1 A at 24 V
- Reverse polarity protection present
- Overcurrent protection 1.1 A
- Connection 1 removable 4-pole terminal block
- Degree of protection IP30
- Basic housing material Aluminum
- Unmanaged switch
- Mounting Type DIN Rail, Panel (with optional mounting kit)
- Speed Fast Ethernet
Dimensions
- Depth 70 mm
- Depth (inch) 2.756 inch
- Vertical Position 115 mm
- Height (inch) 4.528 inch
- Width 30 mm
- Width (inch) 1.181 inch
- Net Weight 175 grams
There are no reviews
Data sheet
- Type: Network Switch
- System: IP
- Doors: Five
