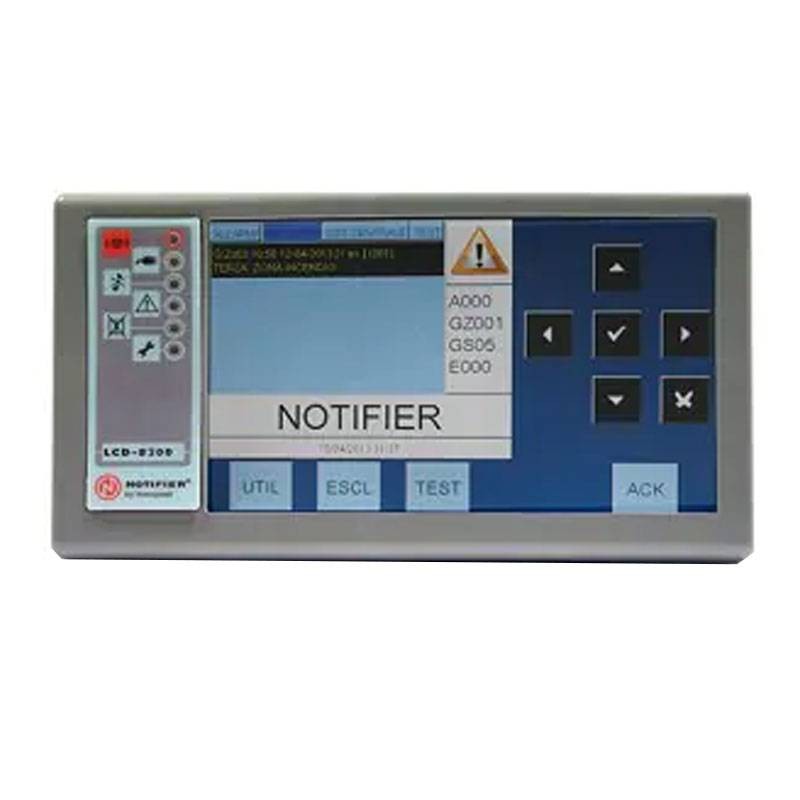

Notifier Fire detection panel with LCD-Display 7
NOT LCD-8200
Notifier Fire detection panel with the following features:
- 72Mhz microprocessor system,1Gbit Nand Flash, 256Mbit DDR , 16Mbit Flash SPI
- Display 7 wide TFT RGB 800x480-with resistive touch pad with LED backlighting
- Active area 152.5mm x 91.44mm antiglare treatment
- Serial lines: 1 RS 485 interface
- Power supply: 11Vdc ÷ 30Vdc max (reverse polarity protection)
- Mechanics: The mechanics of LCD-8200 panels are suitable for wall installation
Notifier Fire detection panel with LCD-Display 7
€595.47
Tax included
€595.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
LCD-8200 is a remote repeater panel for the AM-8200 control panel, with of 7 color touch screen.
Connection to the Central Unit: It connects to the single AM-8200 central unit via an RS.485 serial line. Up to 32 LCD-8200s can be connected along the said serial line.
Configuration:
- The panel is to be configured locally as a GENERAL Repeater or as a Partial". Please note: If configured as Partial you must program via PK-8200 the pairings to the Zones or Devices you wish to display
- On the LCD-8200 panel you need to assign the peripheral address locally. Programmable addresses range from 1 to 16 for both categories (GLOBAL or PARTIAL), for a total of up to 32 Repeaters.
Specific Programming: If programmed as GLOBAL, LCD-8200 repeats all alerts on the control panel, and if the control panel is in a CanBus network, it repeats all events on the network.
In this case, it allows the following functions to be performed:
- EVENT RECOGNITION (Local and Central Buzzer silencing).
- SIREN SILENCING / SIREN RESETTING
- EVENT RESET
- Lamp test (LED and Display)
- Local Buzzer test
- Historical archive visualization
- Saving of the historical archive of the AM-8200 control unit on a USB key.
When programmed as PARTIAL, LCD-8200 allows the execution of the following functions:
- EVENT RECOGNITION (Local Buzzer Muting).
- Lamp test (LED and Display)
- Local Buzzer test
- Historical archive display
- Saving of the historical archive of the AM-8200 control unit on a USB key.
In addition, it is possible to program the display of up to 64 types of events, referring to the status of the control panel, zones or individual devices as follows:
- Central unit faults
- Central unit exclusions
- Zone Alarm
- Zone Fault
- Fault/Alarm Zone
- Zone Exclusion
- Zone Test
- Sensor Alarm
- Sensor Fault
- Sensor Fault/Alarm
- Sensor Exclusion
- Module Alarm
- Module Fault/Alarm
- Module Exclusion
Characteristics:
- Power consumption: Idle 125mA @ 24Vdc (in the absence of faults) - In alarm 236mA @ 24Vdc
- Connections: 2 power leads - 2/3 leads for serial line connection (2 with common supplies, 3 with independent supplies)
- Dimensions 213mm (W) x 118mm (H) x 27mm (D)
- Degree of protection : IP30
- Operating temperature : -5 °C to +40 °C
- Relative humidity : Max 95 % (in the absence of condensation)
- Storage temperature : -10 °C to +50 °C
- Weight 410 grams
There are no reviews
Data sheet
- Type: Panels
