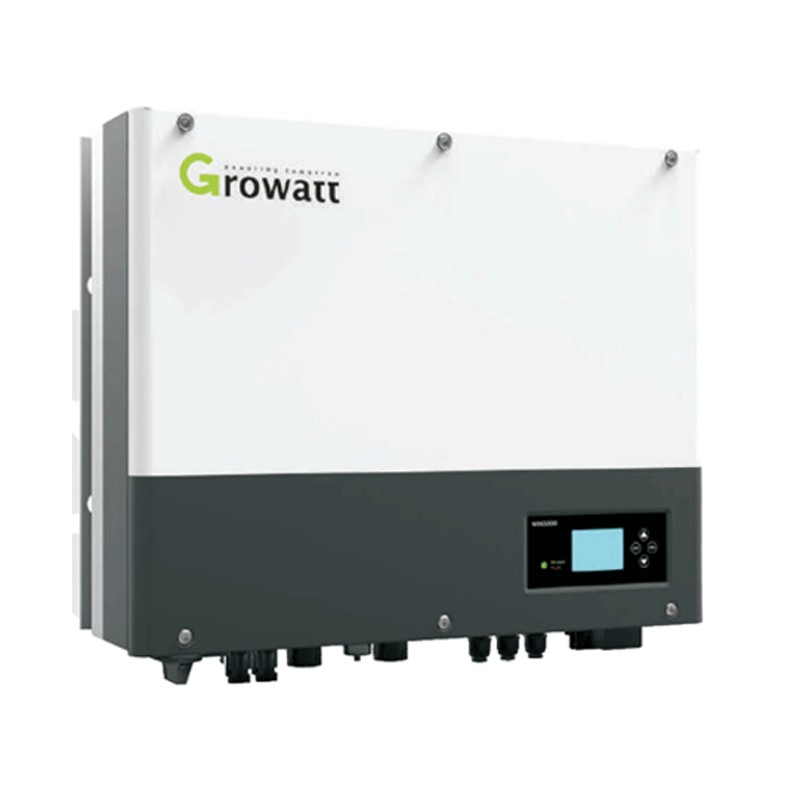

Growatt Single-phase Hybrid Photovoltaic Inverter 6.0KW 2MPPT BL-UP GWSPH6000TLBLUP
GRW GWSPH6000TLBLUP
Growatt 6.0KW Hybrid Photovoltaic Inverter:
- Pot Max DC 9.0 kW
- Pot AC rated 6 kW
- 2 MPPT
- Integrated DC disconnect switch
- Intelligent load management via "dry contact"
- UPS function, switching time 10 ms
- Scalable system configuration
- VPP ready interface
- Online Smart Service (OSS)
- DC/AC power ratio of 1.5
Can also be installed on 3-phase grid through use of a 3-phase Energy Meter.
Compatible accessories to be purchased separately:
- 6.5KWH All In One Lithium Battery (item GWGBLI6532)
- Connection cable between inverter and battery (item GWGBLI6532CB)
- Shine WI-Fi module (art. SHINEWIFI-SHINEWIFIX)
- Growatt Inverter SPH connection cable with ARK25LA1 SPHSPA batteries (art. GWARKLA1CB)
- Growatt ARK photovoltaic lithium battery 1 module 2.56KWh (art. GWARK25LA1)
- Growatt support base for ARK 2.56KW photovoltaic batteries (art. GWARK25A1BASE)
Growatt Single-phase Hybrid Photovoltaic Inverter 6.0KW 2MPPT BL-UP GWSPH6000TLBLUP
€2,159.31
Tax included
€2,159.31
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
Frequently bought together
The Growatt SPH series is perfectly suited to meet a private household's electricity demand, a good residential storage solution, the Growatt SPH series allows PV modules, battery and Electricity Grid to be connected to the same inverter, a solution that is best for new PV Energy storage systems
Simple:
- Internal graphic LCD with four buttons
- Compact design for easy installation
Reliable:
- IP65 degree of protection, high lifetime guarantee
- Natural cooling, no additional fans
- Built-in backup function, transfer time within 0.5 seconds
Flexible:
- Energy storage ready solution, battery can be added at a later time
- Dynamic control of energy flows
- Programmable charge and discharge time
Advanced safety:
- Intelligent online assistance during system operation
- Intelligent battery management ensures its safety
- Comprehensive protections for the entire system
Features:
Input data:
- Maximum recommended PV power 9000W
- Maximum DC voltage 550V
- Activation voltage (V start) 120V
- PV voltage range 120V~550V/360V
- Max. tracker input current A / B 12A/12A
- Number of MPP trackers 2
- Strings for MPP 1 trackers
- Max. input current for MPP 13.5A Max.
- Short-circuit current for MPP 16.5A
Output parameters (AC):
- Rated AC output power 6000W
- Max. apparent AC power output 6000VA
- Maximum output current 27A
- Nominal AC voltage range 230V ; 180Vac-280Vac
- AC mains frequency range 50,60±5Hz
- Configurable power factor 0.8 in advance...0.8 in retardation
- Power factor (cos ?) configurable 0.8 in advance0.8 in delay
- Total harmonic distortion THDi <3%.
AC output power (backup):
- Max. output power 4000W
- Rated output voltage AC 230Vac
- Rated output frequency AC 50/60Hz
- Automatic switching time <0.10S
Battery data:
- Battery voltage range 42~59V
- Max charge and discharge current 85A
- Max power of charge and discharge 4000W
- Battery type lithium
Conversion efficiency:
- Max Efficiency 97.6%
- Euro Efficiency 97.2%
- MPPT efficiency 99.5%
Safety devices:
- DC disconnect switch
- DC reverse polarity protection
- AC/DC overvoltage protection
- Battery inversion protection
- AC short-circuit protection
- Ground fault detection device
- Network monitoring device
- Anti-islanding protection
- Leakage current monitoring
- Insulation resistance monitoring
General data:
- Dimensions (W / H / D) in mm 550*560*180
- Weight 31 kg
- Operating temperature range 25°C/+60°C
- Power consumption: night mode <10W
- Altitude 2000 meters
- Inverter topology without transformer
- Natural cooling system
- Environmental protection rating IP65
- Relative humidity 100%
- DC H4/MC4 connection (optional)
- AC Connection Connector
- Interfaces: : RS485 / CAN / USB
- LCD display
- Warranty: 5 years
- Optional 10-year warranty with the manufacturer
There are no reviews
Data sheet
- Type: Inverter
- Power: 6 to 10KW
- MPPT: 2
- Connection: Single-phase
