Cylindrical fuse Italweber 14 x 51 mm CH14 aM 40A 500V 1432040
ITW 1432040
8024873002147
Italweber cylindrical fuse, with the following characteristics:

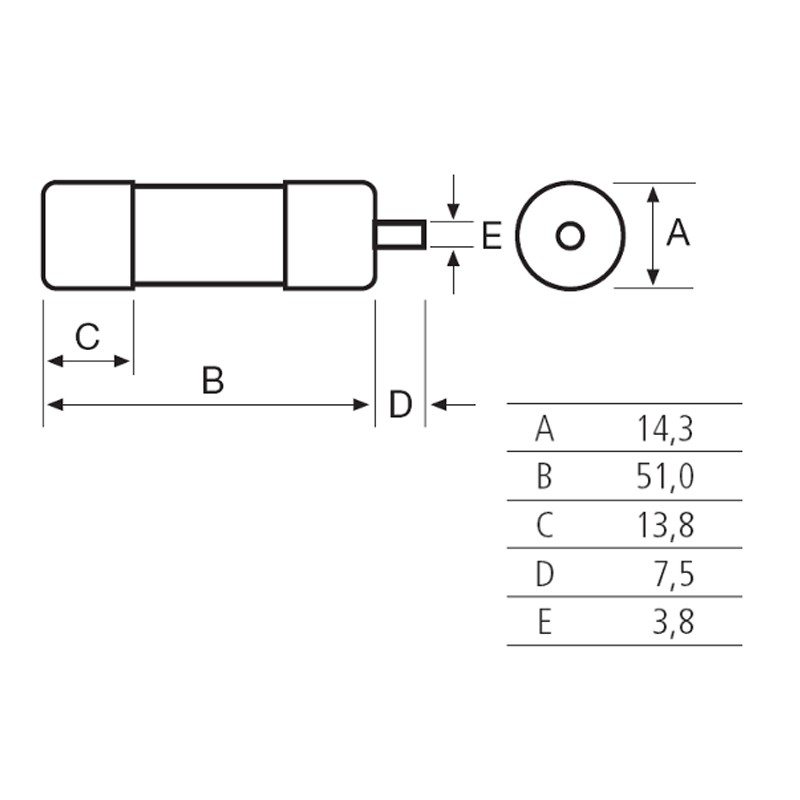

- Fuse gauge dimensions 14 x 51 mm
- Fuse series CH14
- Intervention characteristic aM
- Rated current 40A
- Rated voltage 500 Vac
- Breaking capacity 120kA
Cylindrical fuse Italweber 14 x 51 mm CH14 aM 40A 500V 1432040
€1.93
Tax included
€1.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 37
: 18
Pay in installments with Klarna
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse gauge dimensions 14 x 51 mm
- Fuse series CH14
- Intervention characteristic aM
- Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2
- Rated current 40A
- Rated voltage 500 Vac
- Steatite body
- Contacts in silvered copper
- Breaking capacity 120kA
There are no reviews
Data sheet
- Type: Cylinder fuses
- Size: 14X51
- Voltage: 500V
- Amps: 40A
- Material: Ceramic
