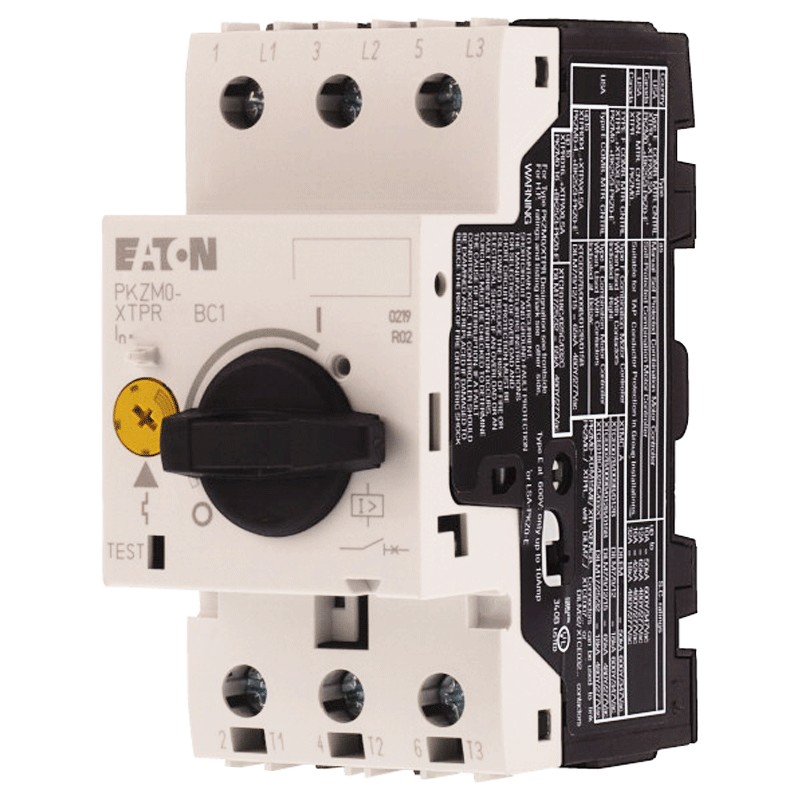

Eaton Motor Protection Circuit Breaker 3P 20-25A 46989

Brand: Eaton

Cod: EAO 46989 EAN: 4015080469896

Motor protection switch for Eaton motor protection, with the following characteristics

3 poles - size PKZM0
With adjustable thermal trip and instantaneous magnetic trip
Rated operational voltage Ue 690V
Rated operational current 20-25A
Power 12.5 kW
Rated frequency 40-60 Hz
Short circuit resistance DC 40 kA

Eaton Motor Protection Circuit Breaker 3P 20-25A 46989

€79.06 Tax included

€79.06

Eaton Motor Protection Circuit Breaker 3P 20-25A 46989

€79.06
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 6

: 1

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

The motor protection switch is installed on the cable that feeds the motor and, when the motor stops due to a mechanical effect or (in three-phase systems) because a phase is missing, it detects an excessive absorption and automatically cuts off the electrical energy, thus safeguarding the integrity of the motor.

Features:

Eaton series
3 poles - size PKZM0
With adjustable thermal release and instantaneous magnetic release
Phase failure sensitive
Screw or snap-in fixing
With screw terminals
Dome mounting dimensions 45 mm
Rated operational voltage Ue 690V
Degree of protection IP20
Rated operational current 20-25A
Power 12.5 kW
Rated frequency 40 - 60 Hz
Short-circuit resistance DC 40 kA
Ambient operating temperature min -25 °C
Ambient operating temperature max +55 °C
Protection rating of connection terminals IP00
Ambient temperature storage -40 - 80 °C
Ambient temperature daytime -25 - +55 °C
Ambient temperature in storage -25 - 40 °C
Altitude max 2000 mm
Main conductor connection sections single-wire or stranded screw terminals 18 - 10 AWG
Main conductor connection sections screw terminals stripping length 10 mm
Tightening torque for connection screws Main circuit 1.7 Nm
Tightening torque of the connection screws Auxiliary circuit 1 Nm
Rated impulse withstand voltage [Uimp] 6000 Vac
Overvoltage category/pollution degree III/3
Height 93 mm
Height 93 mm Width 45 mm
Depth 76 mm
