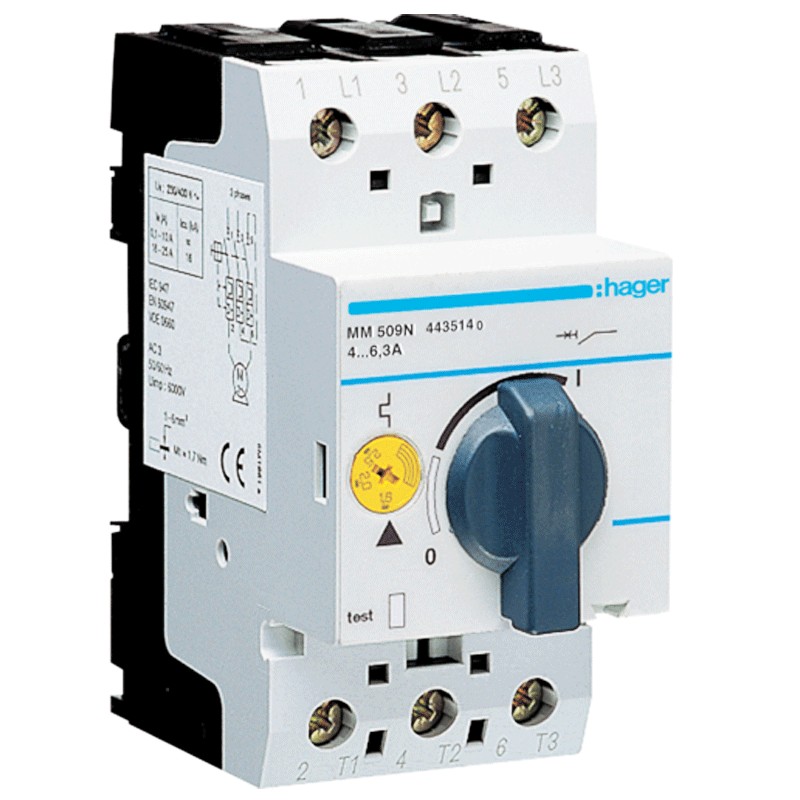

Hager motor protection switch 4-6,3A 2,5 modules 3 poles MM509N
HAG MM509N
3250614435225
Hager thermal-magnetic circuit breaker with the following features:
- Control type compact rotary control
- 3 poles
- 2.5 modules
- Rated current In 4-6,3A
- Nominal operating voltage AC 690 Vac
- Type of supply voltage AC
- Rated frequency 50/60 Hz
- Rated insulation voltage 690 V
- Rated Fault Holding Current 6000 V
- Total power dissipation 5.68W
Hager motor protection switch 4-6,3A 2,5 modules 3 poles MM509N
€78.40
Tax included
€78.40
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 2
Pay in installments with Klarna
The motor protection switch is installed on the cable that feeds the motor and, when the motor stops due to a mechanical effect or (in three-phase systems) because a phase is missing, it detects an excessive absorption and automatically cuts off the electrical energy, thus safeguarding the integrity of the motor.
Features:
- Hager series
- Type of control compact rotary drive
- 3 poles
- 2.5 modules
- Mounting method DIN rail type O (symmetrical)
- Nominal operating voltage AC 690 Vac
- Type of supply voltage AC
- Nominal frequency 50/60 Hz
- Rated insulation voltage 690 V
- Rated Fault Holding Current 6000 V
- Rated current In 4-6.3A
- Temperature regulation 30°C (4 / 4.3 / 4.6 / 4.9 / 5.2 / 5.4 / 5.7 / 6 / 6.3A)
- Total power dissipation 5.68 W
- Screw connection type
- Enclosure protection degree IP20
- Pollution degree 3
- Electrical life and number of cycles 50000
- Number of electrical operations 40
- Number of operations (mechanical endurance) 100000
- Tightening torque 1.7 Nm
- Cross section of rigid cable x screw connection terminals 1 / 6 mm²
- Cross section of flexible cable x screw connection terminals 1/6 mm² Type of screw connection
- Type of screw connection
- Degree of protection of the housing IP20
- Automatic temperature compensation -5 / 40 °C
- Operating temperature -25...55 °C
- Pollution degree 3
- Storage/transport temperature -25...80 °C
- Calibration temperature 30 °C
There are no reviews
Data sheet
- Type: Motor protection
- Modules: 2.5
- Poles: 3P
- Power: 100KA
- Amps: 4-6.3A
