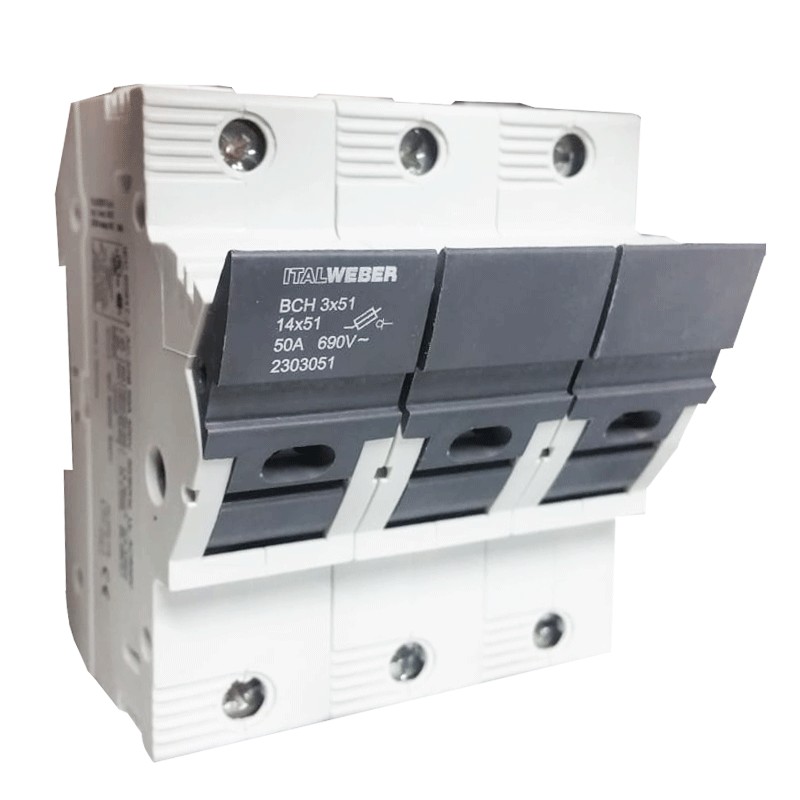

Italweber sectionable fuse holder BCH 14 x 51 mm 3 poles 50A 690V 2303051

Italweber
Italweber
ITW 2303051 8024873018803

Italweber BCH series sectional fuse holder, with the following characteristics

  • Fuse gauge 14 x 51 mm
  • Three-pole type
  • Current In 50A
  • Nominal voltage 690 Vac
  • With microswitch
  • 3 poles
  • 4.5 modules
  • Insulation voltage 800 Vac
  • Short circuit current withstand 100kA

Request info about this product

Italweber sectionable fuse holder BCH 14 x 51 mm 3 poles 50A 690V 2303051

€31.21 Tax included
€31.21

Italweber sectionable fuse holder BCH 14 x 51 mm 3 poles 50A 690V 2303051

€31.21
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 7
logo priority: 2
Altre disponibilità dal produttore
qty

Italweber sectionable fuse holder BCH 14 x 51 mm 3 poles 50A 690V 2303051

€31.21

Calculate shipping cost
Buy it within and receive it from Monday, 10 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

These fuse holders are manufactured taking into account the latest technologies. The body is made of self-extinguishing thermoplastic materials resistant to high temperatures, while the contacts are made of silver-plated copper. All fuse holders are pluggable.

Features:

  • Italweber Series
  • Fuse gauge 14 x 51 mm
  • Tripolar type
  • Current In 50A
  • Nominal voltage 690 Vac
  • With microswitch
  • 3 poles
  • 4.5 modules
  • Insulation voltage 800 Vac
  • Operating temperature -40°C / + 100°C
  • Resistance to short circuit current 100kA
  • Degree of protection IP20

There are no reviews

Data sheet

Type:
Fuse holder
Size:
14X51
Voltage:
690VAC
Modules:
4,5
Poles:
3P
Amps:
50A
